GAS COMPONENT CONNECTION CHECKS
Thermocouple

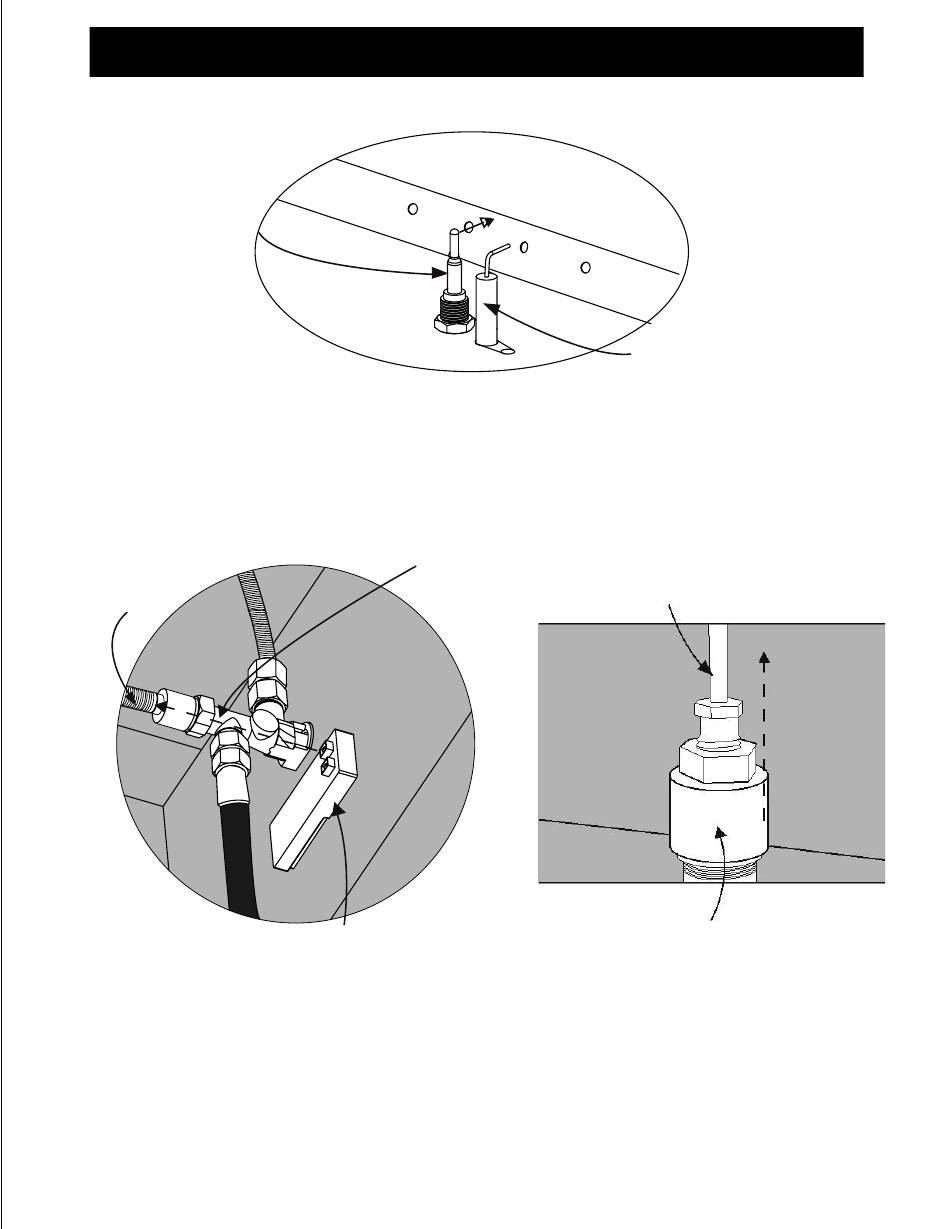

3. Make sure that the igniter pin and thermocouple are correctly positioned.
- The igniter pin should be pointed straight to the burner ports.
- The thermocouple should be positioned 5mm away from the burner tube.
Thermocouple
Wire
4. Make sure that the thermocouple wire is correctly positioned. The thermocouple
wire should be in line with the valve.
5mm
Valve
Igniter Box
17/20
Igniter Pin
Thermocouple Wire
Valve
Wire should
be in line
with valve
