Manual No.: ALPM21EN-G113-A1
!
IMPORTANT
SAVE THESE
INSTRUCTIONS
!
WARNING
For outdoor use only. DO NOT use
for cooking. DO NOT use under any
overhead enclosure.
!
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call your gas supplier or fire department.

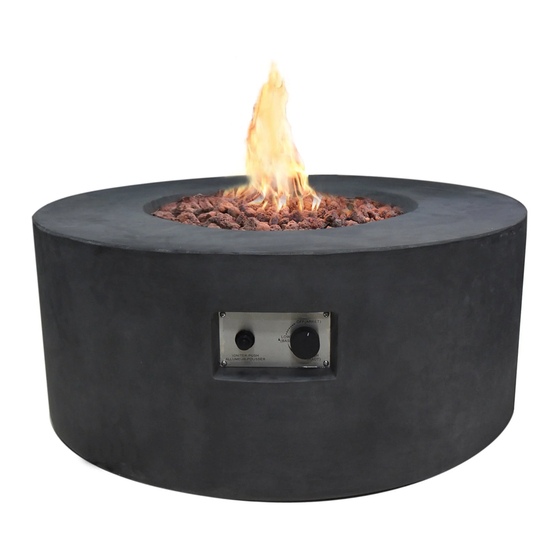

Venice Fire Table
OFG113-LP
Owner's Manual
If the information in this manual
is not followed exactly, a fire or
explosion may result causing
property damage personal injury
or loss of life.
Installation and service must be
performed by a qualified installer,
service agency or gas supplier.
Improper Installation, adjustment,
alteration, service or maintenance
can cause injury or property
damage.
DANGER
!
WARNING
Read the installation, operation
and maintenance instructions
thoroughly before installing or
servicing this equipment.
Save these instructions for
future reference. If you are
assembling this unit for someone
else, give this manual to him or her
to read and savefor future
reference.
!
WARNING
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
An LP-cylinder not connected for use should be
stored in vicinity of this or any other appliance.
Advertisement
Table of Contents
Related Manuals for MODENO Venice
Summary of Contents for MODENO Venice
- Page 1 Manual No.: ALPM21EN-G113-A1 Venice Fire Table OFG113-LP Owner's Manual IMPORTANT WARNING SAVE THESE If the information in this manual Read the installation, operation INSTRUCTIONS is not followed exactly, a fire or and maintenance instructions explosion may result causing thoroughly before installing or property damage personal injury servicing this equipment.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safety Information -------------------------------------------------------------------- 3 Propane (LP) Dangers and Warnings ----------------------------------------------------------- 5 Hose & Regulator Assembly and Replacement -------------------------------------------- 7 Parts List --------------------------------------------------------------------------------------------- 8 Assembly Instructions ----------------------------------------------------------------------------- 9 Lighting Instructions ----------------------------------------------------------------------------- 13 Care and Cleaning -------------------------------------------------------------------------------- 14 Gas Component Checks ----------------------------------------------------------------------- 15 Troubleshooting ---------------------------------------------------------------------------------- 17 Warranty ----------------------------------------------------------------------------------------------- 19... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY IF YOU SMELL GAS • Shut off gas supply to the fire table. • Extinguish any open fame. • Do not try lighting any appliance. • Do not touch any electrical switch; do not use any phone in your building. •... - Page 4 IMPORTANT SAFETY INFORMATION • DO NOT use in an explosive atmosphere. Keep gas fire table area clear and free from combustible materials, gasoline and other flammable vapors and liquids. • This outdoor fire table is NOT to be operated by children. Young children should be closely supervised when in the vicinity of this outdoor fire table.
-
Page 5: Propane (Lp) Dangers And Warnings
IMPORTANT SAFETY INFORMATION • Before each use, remove the lava rocks. Examine the burner and its components. If dirty, clean with a soft brush and soapy water solution. Examine the area around the burner; any dirt or foreign material, such as spider webs or nests in this area should be removed. If it is evident that the burner is damaged, thefire table must not be used. - Page 6 PROPANE (LP) DANGERS AND WARNINGS • The LP gas tank must have a tank collar to protect the tank valve. • LP gas cylinder must contain a shut-o valve as specified in the Standard for Compressed Gas Cylinder Valve Outlet and Inlet Connection, ANSI/CGA-V-1-1977, CSA B96. •...
-
Page 7: Hose & Regulator Assembly And Replacement
HOSE & REGULATOR ASSEMBLY AND REPLACEMENT 1. This fireplace comes equipped with a standard LP gas hose and regulator including the appliance side connection for a CGA No 791 Cylinder Connection Device. The LP gas hose and regulator supplied with this fire table must be used. Only a hose and regulator specified by manufacturer can be used for replacement. -
Page 8: Parts List
PARTS LIST Fire Table 1 LP Regulator and Hose Lava Rock 1 8 / 20... -
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS Make sure the gas supply system is turned to “OFF”. Install a AAA battery as shown in the diagram below. Battery is not included. 1. Place the tank seat （Sold Separately) on the ground and place a 20 lb. propane tank into the tank seat. - Page 10 ASSEMBLY INSTRUCTIONS 60 " Connecting the LP Gas Tank Disconnecting the LP Gas Tank Check to make sure there is no debris in the Make sure the valve on the LP gas tank is head of the LP gas tank or in the head of the OFF.
- Page 11 ASSEMBLY INSTRUCTIONS Place lava rock by hand. DO NOT dump bag out into tray to avoid clogging the burner with dust. Position the lava rock ( 13.2 lbs / 6 kgs) to a level about 1” above the top of the burner. Make sure that you do not block the igniter box with lava rock to ensure proper ignition.
- Page 12 PRE-USE INSTRUCTIONS WARNING Before using this outdoor fire table, make sure you have read, understand and are following all information provided in the Important Safety Information section of this manual. Failure to follow those instructions can cause death, serious injury or property damage. Prior to each gas fireplace operation, check the hose and valve for evidence of excessive abrasion or wear though the visual check hole on the side of the base.
-
Page 13: Lighting Instructions
LIGHTING INSTRUCTIONS Using the Ignitor 1. Read instructions before lighting. 2. Control knob must be in the “OFF”position. 3. Connect propane cylinder (See Manual). 4. Push and turn control knob counter clockwise to “Low”. 5. Press the igniter button repeatedly to light burner. 6. -
Page 14: Care And Cleaning
CARE AND CLEANING Inspecting This outdoor fire table must be inspected regularly to insure that the product is safe to use and to extend product life. DO NOT inspect this outdoor fireplace until the fire is WARNING COMPLETELY out. 1. Check the burner to make sure it is securely in place. 2. -
Page 15: Gas Component Checks
GAS COMPONENT CONNECTION CHECKS If the burner will not light or stay lit, please perform the following checks. 1. Make sure the electrode wire is correctly connected. Both electrode wires must be fully inserted into the igniter box. the inner side Valve Thermocouple... - Page 16 GAS COMPONENT CONNECTION CHECKS 5mm / 0.196” Thermocouple Igniter Pin 3. Make sure that the igniter pin and thermocouple are correctly positioned. - The igniter pin should be pointed straight to the thermocouple. - The thermocouple should be positioned 5mm / 0.196” away from the burner tube. Valve Thermocouple Wire Thermocouple...
-
Page 17: Troubleshooting
TROUBLESHOOTING Problem: Burner will not light using igniter Possible Cause 1: Electrode and burners are wet. -Wipe dry with cloth. Possible Cause 2: Igniter battery is dead or backwards. -Check that the AAA battery is inserted correctly in the igniter (see page 9) or replace the battery. Possible Cause 3: Igniter Pin cracked or broken - sparks at crack. - Page 18 Orifice is located TROUBLESHOOTING in this connection Ports 18 / 20...
- Page 19 TROUBLESHOOTING Problem: Sudden drop in gas flow, or a reduced flame height Possible Cause 1: Out of gas. -Refill your LP tank. Possible Cause 2: Excess flow safety device may have been activated. -Turn control knob to “OFF”, wait 30 seconds and light outdoor fireplace. If flames are still too low reset the excessive flow safety device by turning off the control knob and LP gas tank valve.
-
Page 20: Warranty
Warranty Ocean Rock USA LLC warrants fire features and accessories to be free from defects in parts and workmanship under normal use and service for a period of 1 year from the date of purchase. In the event of such defects Ocean Rock will, at its option, repair or replace the defective product. The foregoing is at the discretion of Ocean Rock. - Page 21 Ocean Rock USA LLC 1300 W. 9th St., Upland, CA 91786 www.oceanrockusa.com info@oceanrockusa.com Tel: 800-678-7294...
