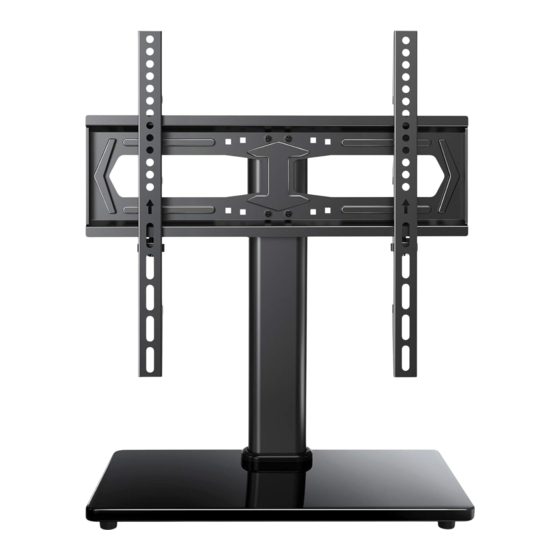

Table Top TV Stand
Instruction Manual
Model: PSTVS20
Thank you for choosing this PERLESMITH product! At
PERLESMITH we strive to provide you with the best quality
products and services in the industry. Please share your
experience of our product with others at www.per-
lesmith.com/pages/reviews if you are satisfied. Should you
have any issues, please don't hesitate to contact us.
Technical Support:
1-800-556-6806 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
supportus@perlesmith.com (US）
supportca@perlesmith.com (CA)
V2.0
Advertisement
Related Manuals for Perlesmith PSTVS20
Summary of Contents for Perlesmith PSTVS20
- Page 1 V2.0 Model: PSTVS20 Thank you for choosing this PERLESMITH product! At PERLESMITH we strive to provide you with the best quality products and services in the industry. Please share your experience of our product with others at www.per- lesmith.com/pages/reviews if you are satisfied. Should you have any issues, please don't hesitate to contact us.
-
Page 2: Important Safety Information
If your TV VESA is greater than 400x400 mm/16x16 in. or less than VESA 75x75mm/3x3in., this TV stand is NOT compatible. If this TV stand is NOT compatible, please contact customer service at supportus@perlesmith.com (US)/ supportca@perlesmith.com (CA) to find a compatible product. Tools Needed (Not lncluded) - Page 3 Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts. lf you require replacement parts, contact our Product Support line at 1-800-556-6806 or customer service at supportus@perlesmith.com (US)/ supportca@perlesmith.com (CA). • Please note: Not all hardware included in this package will be used.
- Page 4 Supplied Part and Hardware for Step 3 Note: The bolts and spacers are shown in accordance with the actual size TV Bracket (M-E) x4 (M-F) x8 (M-D) x8 M4/M6 L5mm L10mm Washer Spacer Spacer (M-A-1) x4 (M-A-2) x4 [M-A] M4x12mm M4x30mm Bolt Bolt...
- Page 5 Step 1 Assemble the Base Place rubber feet [06] to the tempered glass base [02] in the Step 1-1 corners Note: Kindly note that the tempered glass base is designed to show the shiny glass side facing up Step 1-2 Connect the support pillar [01] to tempered glass base [02] Secure the support pillar [01] to tempered glass base [02] using plastic cover [05A], gasket with 3 holes [05B], sponge pad [05C], bolts [A] and...
- Page 6 Step 2 Connect the TV Plates [03] to Support Pillar [01]...
- Page 7 (meaning stacked). If you have any difficulty understand- ing how to install the TV bolts or spacers, please contact customer service at supportus@perlesmith.com (US)/ supportca@perlesmith.com (CA). CAUTION: Ensure the TV brackets [04] is EQUALLY CENTERED on your TV and securely fastened in place.
- Page 8 Option A (For Flat Back TV) M-A-1/M-B-1/M-C-1 (If Needed) Note: Keep the arrow up Option B (For Round Back TV) M-A-2/M-B-2/M-C-2 (If Needed) M-D/M-F Alternate Spacer Setups Note: Keep the arrow up...
- Page 9 Option C (For TV with A “Bump”) Spacers may be necessary for 2 holes ONLY. M-A-1/M-B-1 M-A-2/M-B-2/M-C-2 /M-C-1 (If Needed) (If Needed) M-D/M-F Alternate Spacer Setups Note: Keep the arrow up Option D For cable interference or inset holes, use spacers [M-D], [M-F] to create extra space between the TV and TV brackets.
- Page 10 Step 4 Secure TV to TV Plate and Manage the Wires TV brackets are two-height-adjustable. You can choose the proper height. The First Choice The Second Choice Step 4-1 Hang the TV with brackets to the TV plate Step 4-2 Push the bottom of the TV to TV plate Step 4-3 Insert the safety locks [07] into the upward facing hooks at the midway to lower part of the TV bracket.
- Page 11 Thank you again for choosing this PERLESMITH product! All of us at PERLESMITH do appreciate your product purchase. We hope that you are as happy with your product as we are designing and manufacturing it for you. We strive to provide you with the best quality products and services in the indus- try.
- Page 12 PERLESMITH offers products in these categories Anti-tip Straps AV Shelves TV Stands Speaker Stands TV Carts Full Motion Mounts Tilt Mounts Corner Mounts Please remember us when you need one.
