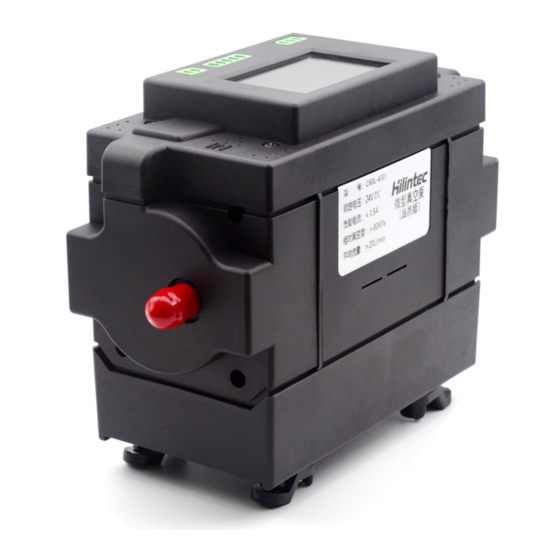

C61 Vacuum Pump Series

User Guide

Issue

Date

2020-06

Table of Contents

Need help?

Do you have a question about the C61L Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Hilintec C61L Series

Page 2 Chengdu Hilin Technology Co., Ltd. Address: No.3663 Section 2Muhua Road Shuangliu District Chengdu China 610000 Website: http://www.hilintec.com Tel: +86-28-62567958 Copyright © Chengdu Hilin Technology Co., Ltd.
Page 3: About This Document
C61 Vacuum Pump Series User Guide About This Document Purpose This document is related to the C61 flow control micro vacuum pump products,which is used to guide relevant technical personnel to initially understand the characteristics of the product. Intended Audience This document is intended for technical personnel.
Page 4: Change History
C61 Vacuum Pump Series User Guide Change History The change history accumulates each update of this document. The latest version of the document contains all the previous updates. Product Issue Date Issuer Modification Version 2020-01 Prototype introduction 2020-02 Update outline drawing Update reference 2020-04 curve;...
Page 5: Table Of Contents
C61 Vacuum Pump Series User Guide Contents About This Document ....................I Change History ......................II Contents ........................III 1 Characteristics ...................... 1 1.1 Working Status Indicator........................1 1.2 Brush-less DC Motors........................1 1.3 Protections............................1 2 Special Functions ....................2 2.1 Working Status Indication and Warning.................... 2 3 Technical Specifications ..................
Page 6 C61 Vacuum Pump Series User Guide 8 Appearance ......................15 Copyright © Chengdu Hilin Technology Co., Ltd.
Page 7: Characteristics
C61 Vacuum Pump Series User Guide Characteristics Working Status Indicator The remote control type and basic type are equipped with working status indicator lights, which can visually feed back the working status of the pump. The touch control type and top configuration type are equipped with an LCD touch screen that can display working status and fault codes.
Page 8: Special Functions
C61 Vacuum Pump Series User Guide connection protection function, which to the greatest extent prevents accidental damage to the pump. Special Functions Working Status Indication and Warning The basic type and remote control type are equipped with working status indicator lights. Users can understand the working status of the equipment through the color change of the indicator lights: a.
Page 9: Technical Specifications
C61 Vacuum Pump Series User Guide Technical Specifications Key Specifications Flow（L/min） Load Relative Voltage Weight Model Current Vacuum (V DC) （g）（A）（-kPa） Peak Average Flow Flow C61L ≤1.8 ≥42 ≥26.5 ≥65 ≈850 Note: 1. The input voltage requires 24V±10%. 2.
Page 10: Versions Description
C61 Vacuum Pump Series User Guide Versions Description Version Simplified Standard Version Premium Version Version Performance Lifetime ≥2500h ≥6000h ≥8000h Noise ★ ★★ ★★★ Reliability ★ ★★ ★★★ Parameter consistency ★ ★★ ★★★ ★ ★★ ★★★ Ambient temperature 0~40℃ 0~50℃ 0~50℃...
Page 11: List Of Models Combination For Sale
C61 Vacuum Pump Series User Guide List of Models Combination for Sale Simplified Standard Premium Version Version Version Version Type √ Basic Type Customizable Customizable Remote √ √ Customizable Control Type Touch Control Type Configuration Type Note: √ in the above table means that there is a corresponding product for sale, unchecked means that there is no corresponding product."Customizable"...
Page 12: Pump Materials
C61 Vacuum Pump Series User Guide 2.Medium: Permissible gaseous media temperature range is 0 ℃ ～ 50℃. The medium is allowed to be rich in water vapor, but cannot contain particles or oil mist. 3. Load: The inlet can be operated at full load (i.e. completely block the inlet), but the applied load cannot exceed the maximum vacuum of the pump;...
Page 13: Starting Current Curve
C61 Vacuum Pump Series User Guide Note: 1. The maximum average flow rate of the curve will be slightly lower than the nominal value, which is due to the resistance of the test pipeline components, which leads to the attenuation of the flow; 2.
Page 14: Product Model Description
C61 Vacuum Pump Series User Guide Product Model Description Brief Description of Model Naming This series of pumps are divided into two types: basic type and remote control type. Note: If the remarks starts with a letter, it means a special custom function. For example, letter"GJ"...
Page 15: Electrical Connection
C61 Vacuum Pump Series User Guide Electrical Connection Basic Type Figure 5-1 Wiring Instructions for Basic Type Instruction: The red wire of the power connector is connected to the positive pole of the DC power supply, the black wire is connected to the negative pole of the power supply.
Page 16: Remote Control Type
C61 Vacuum Pump Series User Guide Remote Control Type Figure 5-2 Wiring Instructions for Remote Control Type Instruction: The red wire of the power connector is connected to the positive pole of the 24V DC power supply, and the black wire is connected to the negative pole of the power supply.
Page 17: Cautions
C61 Vacuum Pump Series User Guide Cautions Please read the instructions in this chapter carefully and follow the instructions strictly before use. 1.This product has no waterproof, dust-proof, and explosion-proof functions and cannot be used in flammable and explosive environments! 2.
Page 18 C61 Vacuum Pump Series User Guide 9. Please operate strictly in accordance with the requirements of this user guide. Copyright © Chengdu Hilin Technology Co., Ltd.
Page 20 C61 Vacuum Pump Series User Guide Installation instructions: 1. The screws on the pump cannot be removed, otherwise it will damage the pump; 2. The mounting holes are self-tapping screw holes, not suitable for repeated tightening and disassembly, otherwise the installation will be loose and unreliable. Copyright ©...
