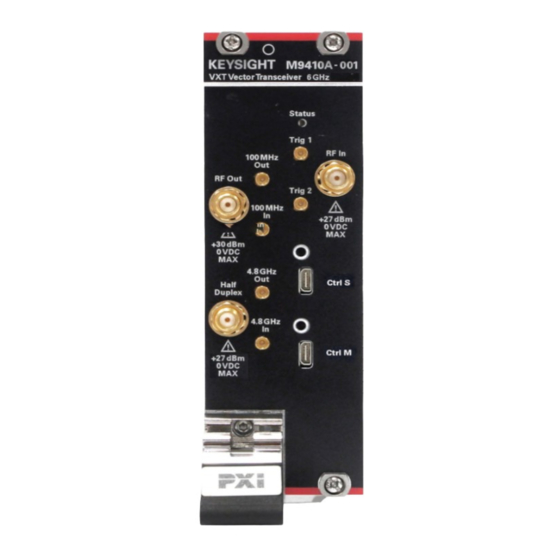

M9410A/M9411A/M9415A
VXT PXIe Vector Transceiver
The newly shipped VXT module is only compatible with the latest version of
transceiver software. To use the newly shipped module properly, please install the
latest version of TRX software on your controller.
If you want to use a newly shipped module with the early released software
version, please go to product page to download the service pack of the early
released software respectively. If you want to use the option EP6 properly, please
use the TRX software M.26.00 or greater even the service pack is installed. Please
refer to section "TRX Software & Modular Hardware Compatibility" of the VXT
Transceiver Getting Started Guide for the detailed information of the service pack.
Hardware Requirement
Description
Requirements
Chassis
PXIe or PXI-H chassis slot (Keysight M9018B/M9019A PXIe chassis is recommended)
Reference
A reference with 100 MHz output (Keysight M9300A Reference is recommended)
Controller
Embedded controller
Keysight M903xA or an equivalent embedded controller that meets the following requirements:
•
A PXIe system controller (PXI-1 embedded controllers are not compatible).
•
Utilizes a 2x8, 4x4, or 1x8 PXIe system slot link configuration.
•
Runs one of the operating systems listed in controller system requirement below.
Or remote controller
•
A PC running one of the operating systems listed in controller system requirement below and a
Keysight M9021A/22A/23A Cable Interface with the following PC interface configuration:
•
Keysight M9048B PCIe Desktop Adapter x8, with Y1202A PCIe cable (for a desktop PC).
Controller System Requirement
Description
Operating system
Processor
Available memory for each module
Available d isk space for each modular on Drive C:
Requirements
Window 7/10 (64-bit), English Version
Single Core with hyper threading, 1.86 GHz minimum
8 GB minimum, 16 GB or greater recommended
8 GB minimum, 40 GB or greater for multiple applications
Startup Quick Reference
Advertisement
Related Manuals for Keysight Technologies M9410A
Summary of Contents for Keysight Technologies M9410A

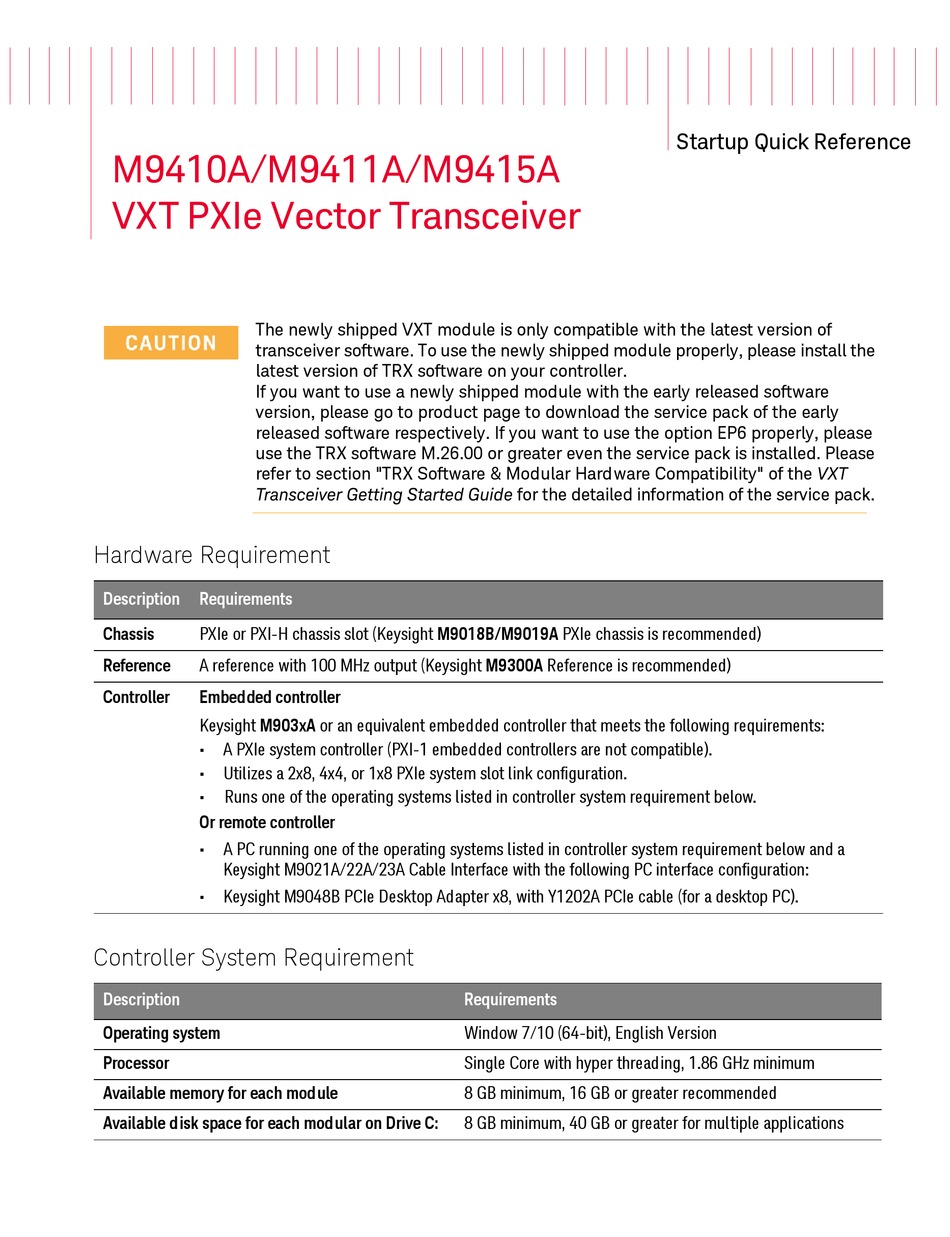

- Page 1 Startup Quick Reference M9410A/M9411A/M9415A VXT PXIe Vector Transceiver The newly shipped VXT module is only compatible with the latest version of transceiver software. To use the newly shipped module properly, please install the latest version of TRX software on your controller....
- Page 2 3. Install the M9300A reference module into the chassis. Connect a cable from M9300A 100 MHz Out port to M9410A/M9411A/M9415A 100 MHz In port. If you are using multiple transceiver modules, all the 100 MHz In ports need connect to M9300A 100 MHz Out ports. If you are using an external 100 MHz reference signal, make sure the signal is connected and output properly.
- Page 3 TRX software version is not compatible with the later FPGA version in the module. To upgrade the module’s FPGA version, please go to http://www.keysight.com/find/m9410a -> Support Tab -> Drivers, Firmware & software to download the latest FPGA service pack UpdateFPGA.exe. After running this file, the FGPA version will be upgraded and the current installed module number will be shown in the launcher.
- Page 4 M9300A Soft Front Panel http://www.keysight.com/find/m9300a -> Support -> Drivers, Firmware & Software *. "xxx" indicates the product number. If you are looking for the M9410A product page, please refer to http://keysight.com/find/m9410a for details. †. IO Libraries Suite is included in the TRX software This information is subject to change without notice.
