C O N F I G U R AT I O N
G U I D E
380 MHz to 6 GHz

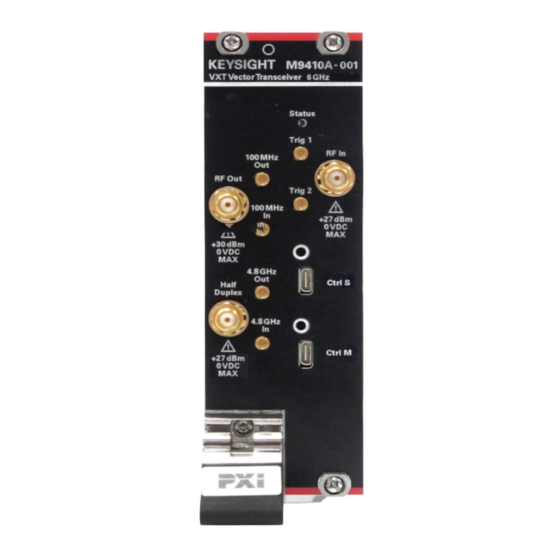

M9410A and M9411A VXT PXIe
Vector Transceivers
Overview
This configuration guide contains information to help you configure your M9410A
and M9411A VXT PXIe vector transceivers to meet your requirements. Ordering
optional capabilities at time of purchase provides the lowest overall cost.
Find us at www.keysight.com
Page 1
Advertisement
Related Manuals for Keysight Technologies M9410A
Summary of Contents for Keysight Technologies M9410A
- Page 1 M9410A and M9411A VXT PXIe Vector Transceivers Overview This configuration guide contains information to help you configure your M9410A and M9411A VXT PXIe vector transceivers to meet your requirements. Ordering optional capabilities at time of purchase provides the lowest overall cost.
- Page 2 • Cable, MMPX male to SMB male, 260 mm • Getting Started Guide Hardware A. Select options for VXT PXIe vector transceiver Step 1. Choose your module M9410A-001 VXT PXIe vector transceiver, 2-slot VXT PXIe vector transceiver, 3-slot, supporting Keysight PathWave M9411A-001 FPGA Programming Environment Software Step 2.
- Page 3 C. Select controller (Either embedded controller or via PC) Step 1. Select embedded controller M9037A-M08 High-performance embedded controller Intel i7-4700EQ quad-core processor, 2.4 GHz, 8-thread, 8 GB RAM Select M9037A for the best performance if you have memory intensive applications, multiple applications running in parallel, or if a lot of data is sent to the PC from the PXIe chassis.
- Page 4 C. Select controller (Either embedded controller or via PC) (Continued) PC requirements for M9410A and M9411A VXT PXIe vector transceivers control Functions Description Windows 7 (64 bit) Operating system Windows 10 (64 bit) Processor speed 1.86 GHz dual core minimum...
- Page 5 D. Select a chassis and accessories (Continued) Step 3. Choose a rack mount kit ¹ (Optional) Rack mount kit for M9010A and Y1271A Y1217A rail kit Rack mount kit for M9018B or Y1215C M9019A 18-slot PXIe chassis Rack mount kit for M9018B or Y1216B M9019A 18-slot PXIe chassis Step 4.
- Page 6 Software E. Select measurement applications or software and license type for VXT PXIe vector transceiver Step 1. Start with M9410A and M9411A base configuration The VXT comes standard with the following software: • Keysight IO Libraries Suite including Connection Expert •...
- Page 7 E. Select measurement applications or software and license type for VXT PXIe vector transceiver (Continued) Model name Description N9054EM0E VMA Vector Modulation Analysis Measurement Application N9054EM1E Vector Modulation Analysis Custom OFDM Application N9071EM0E GSM/EDGE/Evo Measurement Application Y9071EM0E GSM/EDGE/Evo Waveform and Measurement Application N9073EM0E W-CDMA/HSPA+ Measurement Application Y9073EM0E...
- Page 8 F. Calibration, start-up assistance Model name Description M9410A-UK6 Calibration certificate with Commercial calibration certificate measurement results available with test data M9411A-UK6 only at time of purchase.
-
Page 9: Calibration Services
One day start-up assistance A Keysight Technologies applications engineer will get you started quickly by helping you install the modules in a chassis, configure the controller, load software and start making measurements. Calibration services The modular products are factory calibrated and shipped with an ISO-9002, NIST- traceable calibration certificate. -
Page 10: Related Literature
For more information on Keysight Technologies’ products, applications or services, please contact your local Keysight office. The complete list is available at: www.keysight.com/find/contactus Find us at www.keysight.com Page 10 This information is subject to change without notice. © Keysight Technologies, 2018, Published in USA, September 19, 2018, 5992-3303EN...
