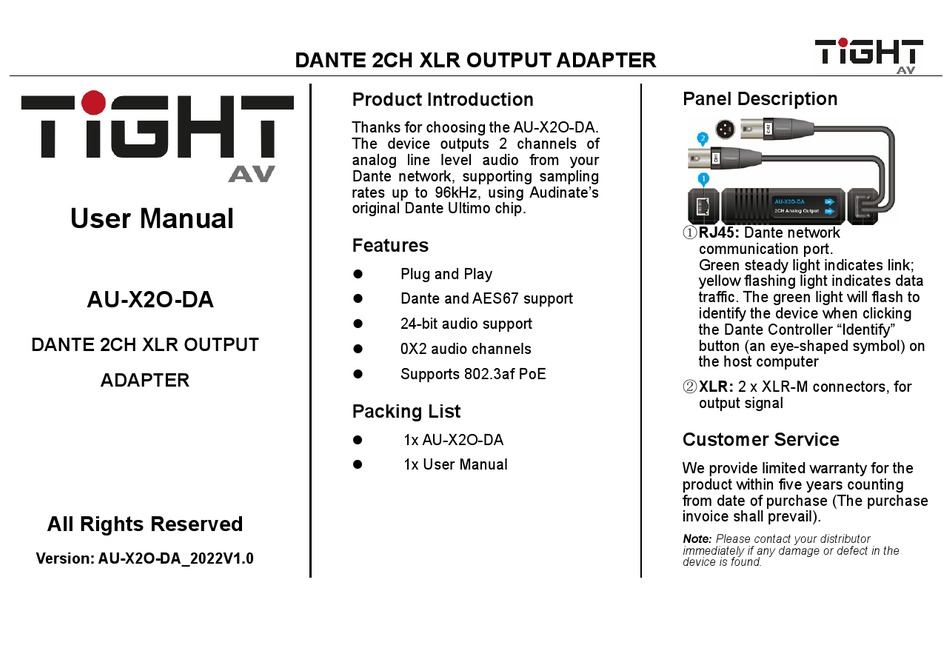

TiGHT AV AU-X2O-DA User Manual

User Manual
AU-X2O-DA
DANTE 2CH XLR OUTPUT
ADAPTER
All Rights Reserved
Version: AU-X2O-DA_2022V1.0
DANTE 2CH XLR OUTPUT ADAPTER
Product Introduction
Thanks for choosing the AU-X2O-DA.
The device outputs 2 channels of
analog line level audio from your
Dante network, supporting sampling
rates up to 96kHz, using Audinate's
original Dante Ultimo chip.
Features
Plug and Play

Dante and AES67 support

24-bit audio support

0X2 audio channels

Supports 802.3af PoE

Packing List
1x AU-X2O-DA

1x User Manual

Panel Description
① RJ45: Dante network
communication port.
Green steady light indicates link;
yellow flashing light indicates data
traffic. The green light will flash to
identify the device when clicking
the Dante Controller "Identify"
button (an eye-shaped symbol) on
the host computer
② XLR: 2 x XLR-M connectors, for
output signal
Customer Service
We provide limited warranty for the
product within five years counting
from date of purchase (The purchase
invoice shall prevail).
Note: Please contact your distributor
immediately if any damage or defect in the
device is found.
