User Manual
AU-BT2-DA
DANTE 2X1CH BLUETOOTH
ADAPTER
All Rights Reserved
Version: AU-BT2-DA_2022V1.0

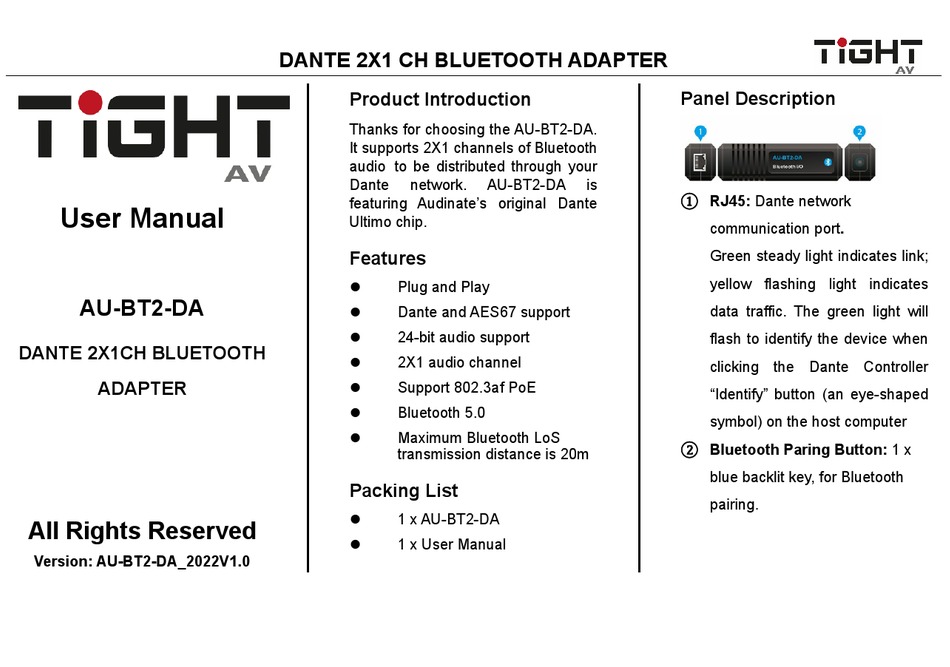

DANTE 2X1 CH BLUETOOTH ADAPTER
Product Introduction
Thanks for choosing the AU-BT2-DA.
It supports 2X1 channels of Bluetooth
audio to be distributed through your
Dante
network.
featuring Audinate's original Dante
Ultimo chip.
Features
Plug and Play
Dante and AES67 support
24-bit audio support
2X1 audio channel
Support 802.3af PoE
Bluetooth 5.0
Maximum Bluetooth LoS
transmission distance is 20m
Packing List
1 x AU-BT2-DA
1 x User Manual
AU-BT2-DA
is
Panel Description
① RJ45: Dante network
communication port.
Green steady light indicates link;
yellow flashing light indicates
data traffic. The green light will
flash to identify the device when
clicking the Dante Controller
"Identify" button (an eye-shaped
② Bluetooth Paring Button: 1 x
symbol) on the host computer
blue backlit key, for Bluetooth
pairing.
Advertisement
Related Manuals for TiGHT AV DANTE AU-BT2-DA
Summary of Contents for TiGHT AV DANTE AU-BT2-DA
- Page 1 DANTE 2X1 CH BLUETOOTH ADAPTER Product Introduction Panel Description Thanks for choosing the AU-BT2-DA. It supports 2X1 channels of Bluetooth audio to be distributed through your ① RJ45: Dante network Dante network. AU-BT2-DA featuring Audinate’s original Dante User Manual Ultimo chip. communication port.
- Page 2 DANTE 2X1 CH BLUETOOTH ADAPTER Dimension 115x 34 x 28 Bluetooth pairing process Technical Specification (W*H*D) After the device is powered on, press Dante Net Weight the pairing button to enter paring Sample Rate 48 kHz Compliance FCC, CE mode. The blue backlight of the button Bit Depth Environmental RoHs, WEEE...
