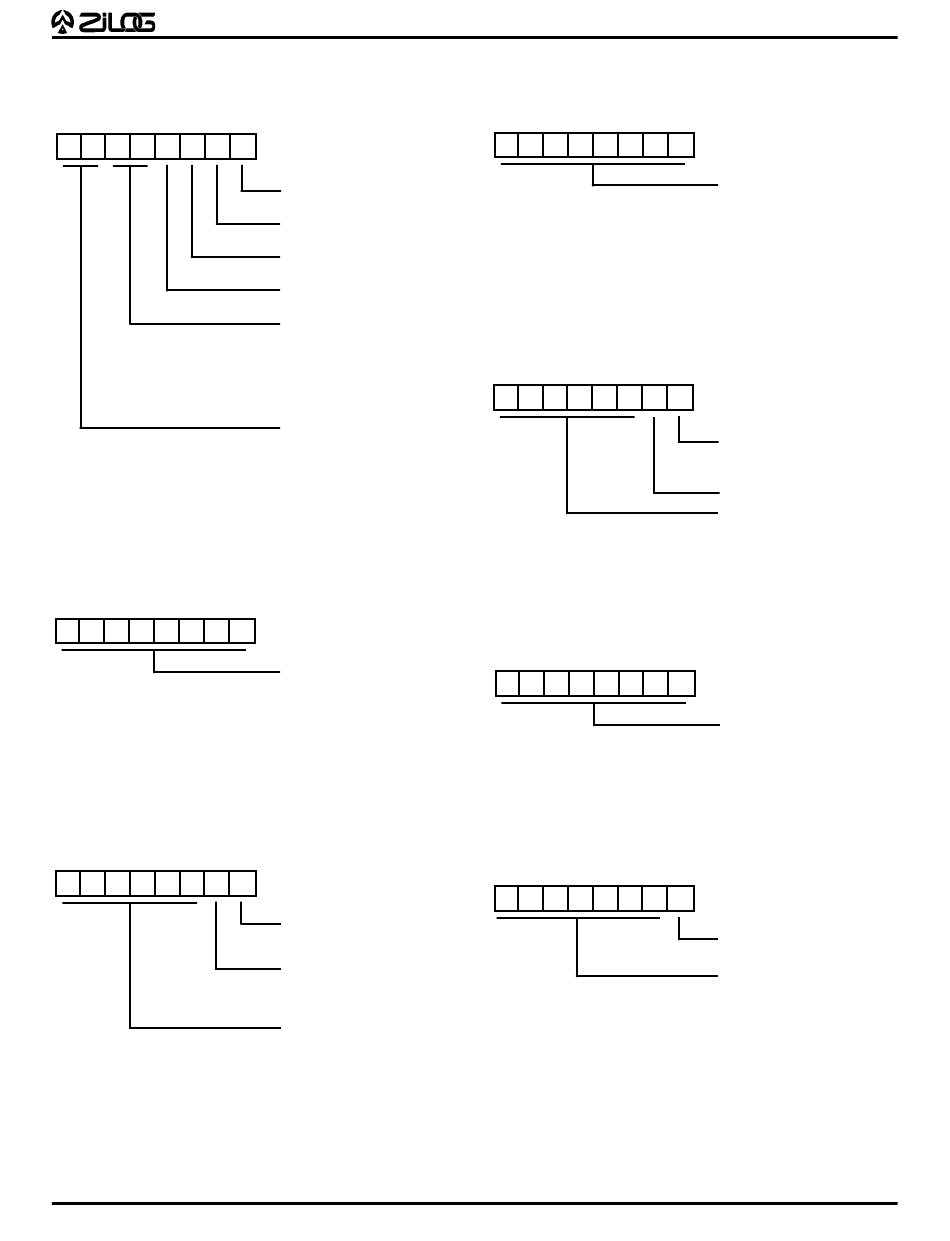

Z8 CONTROL REGISTER DIAGRAMS
R241 TMR
D7 D6 D5 D4 D3 D2 D1 D0
Figure 18. Timer Mode Register
(F1H: Read/Write)
R242 T1
D7 D6 D5 D4 D3 D2 D1
Figure 19. Counter Timer 1 Register
(F2H: Read/Write)
R243 PRE1
D7 D6 D5 D4 D3 D2 D1 D0
Figure 20. Prescaler 1 Register
(F3H: Write Only)
16
0 = No Function
1 = Load T0
0 = Disable T0 Count
1 = Enable T0 Count
0 = No Function
1 = Load T1
0 = Disable T1 Count
1 = Enable T1 Count
TIN Modes
00 = External Clock Input
01 = Gate Input
10 = Trigger Input
(Non-retriggerable)
11 = Trigger Input
(Retriggerable)
TOUT Mode
00 = Not Used
01 = T0 OUT
10 = T1 OUT
11 = Internal Clock Out
D0
T1 Initial Value
(When WRITE)
(Range 1-256 Decimal
01-00 HEX)
T1 Current Value
(When READ)
Count Mode
0 = T1 Single Pass
1 = T1 Modulo N
Clock Source
1 = T0 Internal
0 = T0 External Timing Input
(TIN) Mode
Prescaler Modulo
(Range: 1-64 Decimal
01-00 HEX)
R244 T0
D7 D6 D5 D4 D3 D2 D1 D0
Figure 21. Counter/Timer 0 Register
(F4H: Read/Write)
R245 PRE0
D7 D6 D5 D4 D3 D2 D1 D0
Figure 22. Prescaler 0 Register
(F5H: Write Only)
R246 P2M
D7 D6 D5 D4 D3 D2 D1 D0
Figure 23. Port 2 Mode Register
(F6H: Write Only)
R247 P3M
D7 D6 D5 D4 D3 D2 D1 D0
Figure 24. Port 3 Mode Register
(F7H: Write Only)
®
