RC Oscillator. The Z08617 provides an internal capacitor
to accommodate an RC oscillator configuration. A 1%
precision resistor is necessary to achieve ± 10% accurate
frequency oscillation.
14
EMI. The Z08617 offers low EMI emission due to circuit
modifications to improve EMI performance. The inter-
nal divide-by-two circuit has been removed to improve EMI
performance.
5V
1%
Precision
XTAL1
XTAL2
NC
RC Oscillator

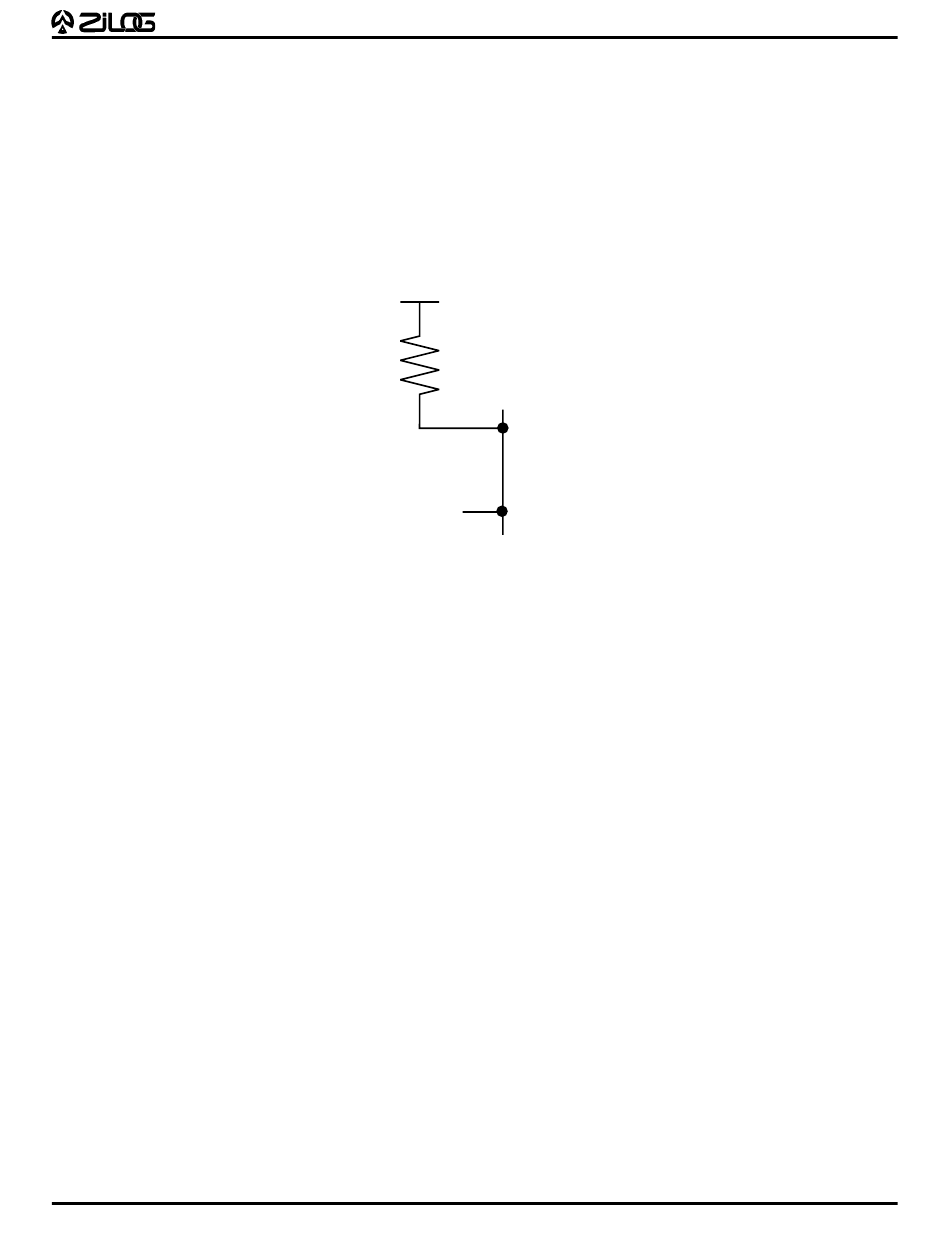

Figure 14. Oscillator Configuration
®
