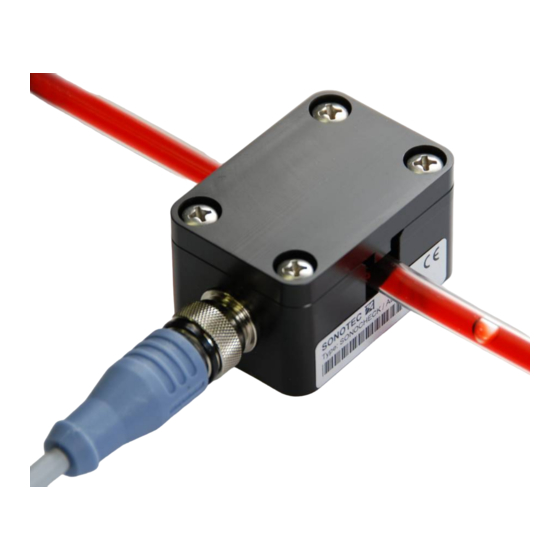

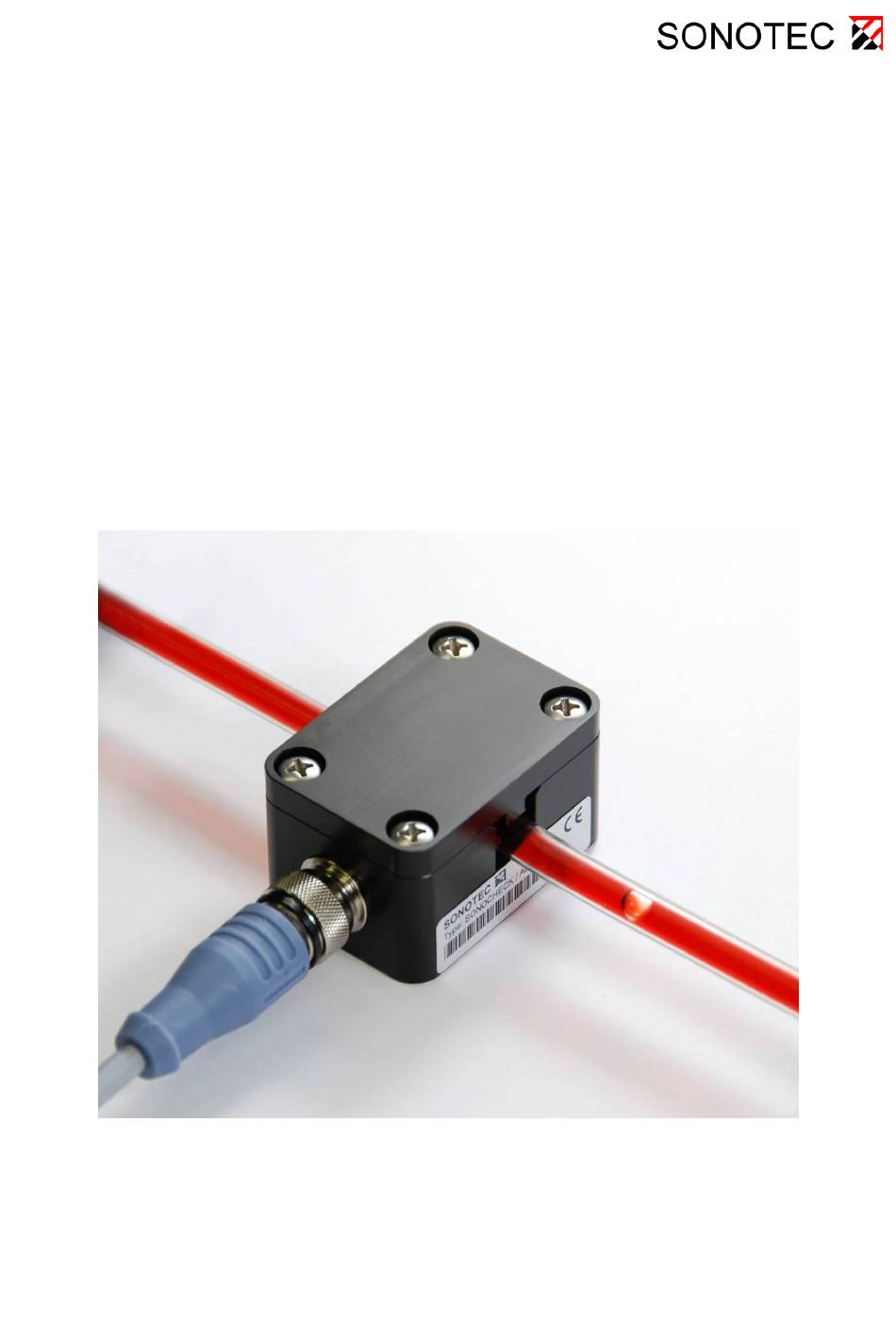

- Page 1 Sensor for Air Bubble Detection at Liquid Filled Tubes SONOCHECK Type ABD06.xx Operating Manual...
- Page 2 SONOTEC Ultraschallsensorik Halle GmbH All rights reserved The content of this manual is the property of SONOTEC Ultraschallsensorik Halle GmbH and is protected by copyright. Duplication and distribution in any form, particularly reprinting, photographic, mechanical or electronic reproduction, or in the form of storage in data processing systems or data networks, is prohibited without the consent of the copyright holder.
-
Page 3: Table Of Contents
SONOCHECK – Air Bubble Detector Type ABD06.xx Table of Content General Information ......................... 4 Safety information ......................4 Application ........................4 Measuring Principle ......................4 Technical Specifications......................5 Sensitivity of Bubbles/Direction of Mounting ..............5 Liquid Standards ....................... 5 Tube Standards ........................ 5 Connection of the Sensor .................... -
Page 4: General Information
SONOCHECK – Air Bubble Detector Type ABD06.xx 1 General Information 1.1 Safety information The SONOCHECK ABD06 is a state of the art product that complies with all applicable safety regulations. The sensor is factory tested and is delivered in a safe condition for operation. The following safety instructions apply: Warning! Incorrect installation and use of the ABD06 sensor and its components can present a... -
Page 5: Technical Specifications
SONOCHECK – Air Bubble Detector Type ABD06.xx 2 Technical Specifications 2.1 Sensitivity of Bubbles/Direction of Mounting The bubble sensitivity depends on the diameter of tube and on the mounting position. For optimal bubble detection the tube must be placed vertically or horizontally with lateral insertion. This way bubbles with a diameter greater than 30 % ... - Page 6 SONOCHECK – Air Bubble Detector Type ABD06.xx The tube is put into the measuring cell without coupling gel. ATTENTION: There must be no liquid in the channel. An acoustic short circuit may be caused due to the liquid. The function of the sensor is strongly disturbed. Normally, after being put in, the tube is fixed firmly by a cover.
-
Page 7: Connection Of The Sensor
SONOCHECK – Air Bubble Detector Type ABD06.xx 2.4 Connection of the Sensor For normal operating the sensor is connected via a M12 sensor connector (3 poles). A suitable cable can be delivered optionally (lengths: 2 m/5 m/10 m). A shielding cable is not necessary for short distances. -
Page 8: Cleaning And Disinfection
SONOCHECK – Air Bubble Detector Type ABD06.xx Figure 4. ABD-Monitor for diagnostics or for setting parameters Figure 5. USB Data Converter for connecting the sensor to the USB Port of the computer 3 Cleaning and disinfection The sensor should be cleaned using standard commercial cleaning agents. Standard commercial spray disinfectants should be used for disinfection. - Page 9 SONOCHECK – Air Bubble Detector Type ABD06.xx Technical Data SONOCHECK, Type ABD06.xx Sensor for air bubble detection at liquid filled tubes Measuring Principle Ultrasonic principle Tube is put dry in sensor, no coupling gel is required. Type of Models Model Outer Diameter of Tube 3.0 ...
- Page 10 SONOCHECK – Air Bubble Detector Type ABD06.xx Output Specification State Level of PNP-Output (Standard) Air/bubble +24 V Liquid Ground Internal error (self-test) +24 V The state of output can be configured according to the application by means of the ABD Monitor. Measuring Cycle 200 µs Response Time...
-
Page 11: Technical Drawings
SONOCHECK – Air Bubble Detector Type ABD06.xx 4 Technical Drawings 4.1 Dimensions Model S for an Outer diameter of the Tube of 3.0 ... approx. 8.5 mm Mounting Holes M4, depth 8 M12 Sensor Connector Figure 6. Drawing of sensor model S Note: The drawings do not conform to real dimensions ABD 06.xx... -
Page 12: Dimensions Model L For An Outer Diameter Of The Tube Of 8.0
SONOCHECK – Air Bubble Detector Type ABD06.xx 4.2 Dimensions Model L for an Outer Diameter of the Tube of 8.0 ... approx. 17.0 mm Mounting Holes M4, depth 8 M12 Sensor Connector Figure 7. Drawing of sensor model L Note: The drawings do not conform to real dimensions ABD 06.xx...
