Jul. 2019
Table of Contents
Cautionary Notes ..............................................................2
Specifications .....................................................................2
Exploded View ..................................................................4
Exploded View Parts List.................................................5
Copyright © 2019 Roland Corporation
All rights reserved. No part of this publication may be reproduced in any form without the written permission
of Roland Corporation.
Accessories Parts List........................................................5
Connecting Wirings ..........................................................6
Checking the Serial Number ...........................................7
System Self-test..................................................................7
17057236E0
SERVICE NOTES
Issued by RJA

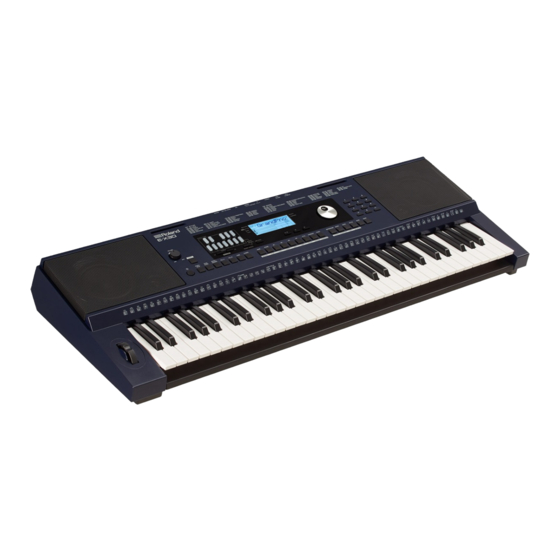

E-X30
CC-KWS
