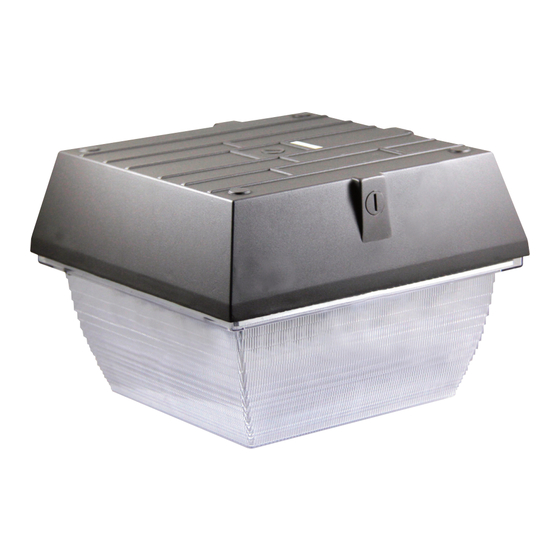

20W LED Ceiling Canopy

Description

The surface mounted canopy fixture, with a shatter and UV resistant polycarbonate
lens, can be mounted to J-box or directly to non-combustable surfaces.
The LEDs are proprietary binned for color consistency, highlighting a 98 percent power
factor and 120° beam angle LED.

Construction

Fixture: Available in a bronze finish, the
heavy-duty die cast aluminum one-
piece housing is polyester powder-
coated for long durability, rust and
corrosion proof, and sealed to be dirt
and insect proof.
Lens: High quality shock proof
polycarbonate lens with UV inhibitors.
LED Module: LED modules are copper
plated to provide high thermal transfer
rate and minimize the junction
temperature of LEDs to maximize
service life.

Specifications

Model
MLCAN20LED50
12 York Ave, West Caldwell, NJ 07006 Tel: 973-244-7300 Fax: 973-244-7333 Email: info@maxlite.com
Watts Lumens
20 1,312 120-277V
© Copyright 2013. MaxLite, Inc. All Rights Reserved.
Volts Weight
6.5 lb 8-15/16"
Dimensions (in)
L W D
8-15/16" 7-1/4"
