Operating Instructions
®
MaxLite

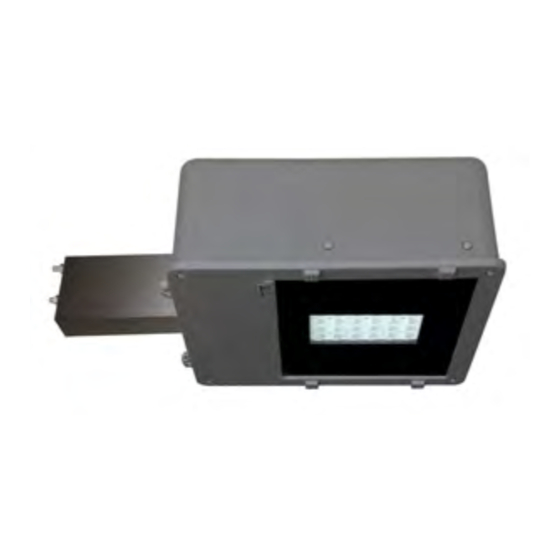

SHOEBOX AREA LIGHT FIXTURE
General Safety Information
• To reduce the risk of death, personal injury or property damage from fire, electric shock, falling
parts, cuts/abrasions, and other hazards read all warnings and instructions included with and on
the fixture box and all fixture labels.
• Before installing, servicing, or performing routine maintenance upon this equipment, follow
these general precautions.
• Commercial installation, service and maintenance of luminaires should be performed by a
qualified licensed electrician.
• For Residential installation: If you are unsure about the installation or maintenance of the
luminaires, consult a qualified licensed electrician and check your local electrical code.
• DO NOT INSTALL DAMAGED PRODUCT!
• This fixture is intended to be connected to a properly installed and grounded UL listed junction
box.
WARNING:
RISK OF ELECTRICALSHOCK
• Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply.
• Turn off the power when you perform any maintenance.
• Verify that supply voltage is correct by comparing it with the luminaire label information.
• Make all electrical and grounded connections in accordance with the National Electrical Code
and any applicable local code requirements.
• All wiring connections should be capped with UL approved wire connectors.
CAUTION:
RISK OF INJURY
• Wear gloves and safety glasses at all times when removing luminaire from carton, installing, servicing or performing maintenance.
• Avoid direct eye exposure to the light source while it is on.
• Account for small parts and destroy packing material, as these may be hazardous to children.
CAUTION:
RISK OF FIRE
• Keep combustible and other materials that can burn away from luminaire and lamp/lens.
• MIN 90°C SUPPLY CONDUCTORS.
Illustrations on the manual are for installation purposes only. It may not be identical to the fixture purchased.
Area Lights:
MAL55AUTXXXXX
120-277V, 50/60Hz
MAL80AUTXXXXX
120-277V, 50/60Hz
MAL105AUTXXXXX
120-277V, 50/60Hz
MAL55AHTXXXXX
347-480V, 50/60Hz
MAL80AHTXXXXX
347-480V, 50/60Hz
MAL105AHTXXXXX
347-480V, 50/60Hz
MAL Series
Page: 1
REV: 10/22/2015
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MaxLite maxLED MAL Series
Summary of Contents for MaxLite maxLED MAL Series
- Page 1 Operating Instructions MAL Series ® MaxLite SHOEBOX AREA LIGHT FIXTURE General Safety Information • To reduce the risk of death, personal injury or property damage from fire, electric shock, falling parts, cuts/abrasions, and other hazards read all warnings and instructions included with and on the fixture box and all fixture labels.
- Page 2 White/Neutral supply to quick connect with white wire. Be sure to confirm connections are secure. Connect ground wire to quick connect with green wire. Be sure to confirm grounding connection is secure. Page: 2 © Copyright 2015. MaxLite, Inc. All Rights Reserved. REV: 10/22/2015...
- Page 3 11. The fixture door is then fastened to the fixture housing ensuring a tight seal. 12. (Caution: Do not over tighten, creating small rips in the gasket) 13. Supply power to the fixture and enjoy your new LED Area Light. © Copyright 2015. MaxLite, Inc. All Rights Reserved. Page: 3 REV: 10/22/2015...
- Page 4 LIGHT; CANOPY; GARAGE; PARKING; SECURTIY LIGHT; VAPOR TIGHT AND ROADWAY. This limited warranty is provided by the MaxLite company described below ("Seller") to you as the original purchaser of the LED lighting product that is identified on Seller's invoice reflecting its original purchase (the "Product"). The Seller is the MaxLite Company identified as such on the invoice.
