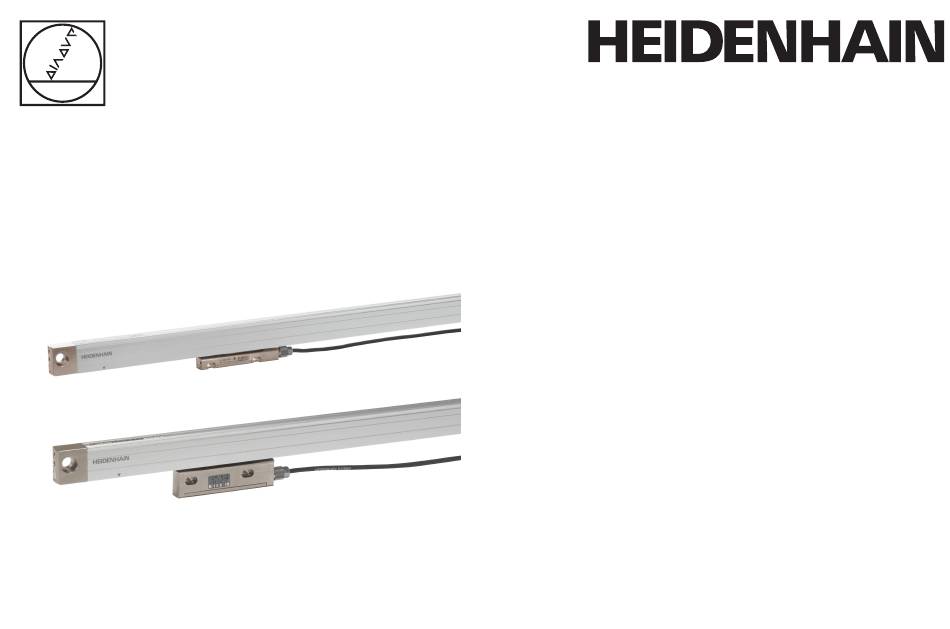

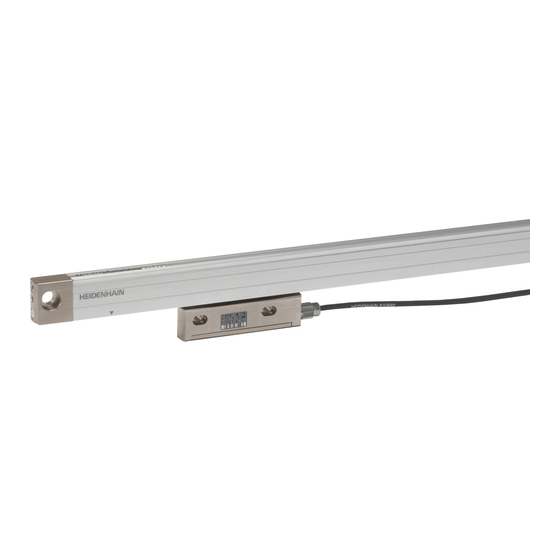

- Page 1 Austauschanleitung LC 4x5 als Ersatz für LC 4x3 Replacing Instructions LC 4x5 as a Replacement for LC 4x3 Notice de remplacement LC 4x5 en remplacement de la LC 4x3 1/2019...
- Page 2 Replacing Instructions LC 4x5 as a Replacement for LC 4x3 Contents Meaning of the symbols used in these instructions General information Mechanical mounting...
- Page 3 Meaning of the symbols used in these instructions Safety precautions Comply with all safety precautions indicated in these Replacing Instructions and in your machine tool builder’s documentation. The safety precautions have the following structure: NOTICE Signal word Danger of collision! Type of hazard If you ..., then ...
- Page 4 General information When you replace an LC 4x3 with its service successor LC 4x5, observe the mechanical differences described below. WARNING Improper execution of maintenance work by staff not trained appropriately Personal injury or property damage Replacement is to be conducted by a specialist for electrical and mechanical systems under compliance with local safety regulations.
- Page 5 Mechanical mounting Reduced height In comparison with the LC 4x3, the height of the scanning unit of the LC 4x5 has been reduced from 25 mm to 13 mm. It is now equal to the height of the LS 400. The housing dimensions and the position of the mounting holes of the scanning unit remain identical to the LC 4x3 so that the LC 4x5 can be mounted unaltered to existing geometries.
- Page 6 Mechanical mounting The connection for the pressure tubing can be rotated by 180° to its original direc- tion by means of the adapter piece ID 630380-01. 180° adapter ID 630380-01 The adapter piece does not have an integrated throttle. An additional connecting piece with throttle ID 275239-01 must be used.
