LEGRAND 882 08 Manual

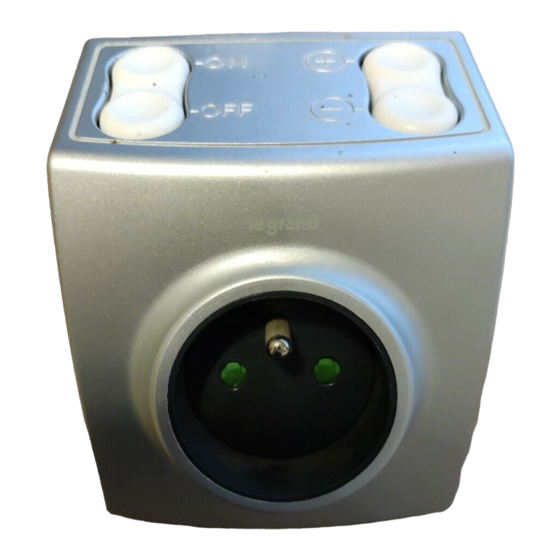

Radio - Mobile dimmable plug
882 08/72

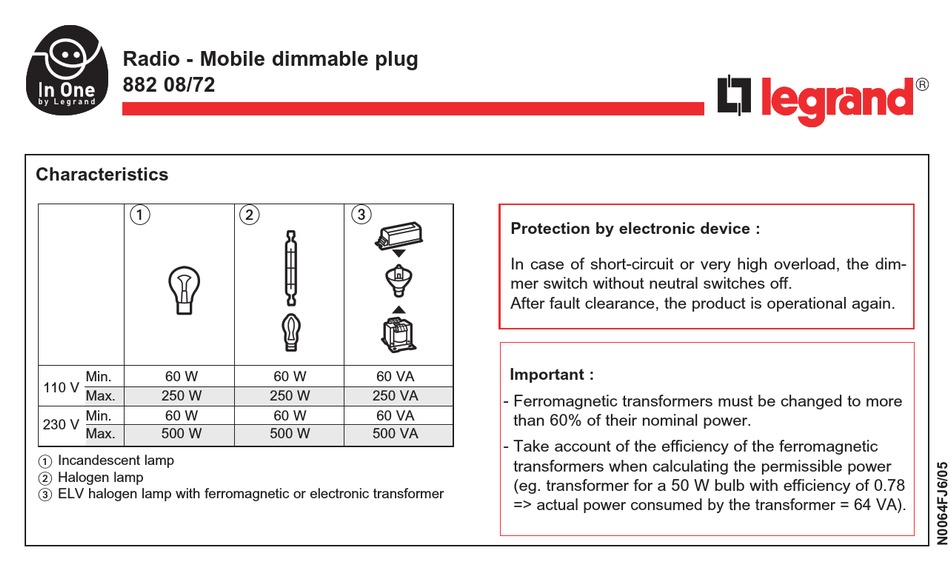

Characteristics
1
Min. 60 W
110 V
Max. 250 W
Min. 60 W
230 V
Max. 500 W
1 Incandescent lamp
2 Halogen lamp
3 ELV halogen lamp with ferromagnetic or electronic transformer
2 3
60 W 60 VA
250 W 250 VA
60 W 60 VA
500 W 500 VA
Protection by electronic device :
In case of short-circuit or very high overload, the dim-
mer switch without neutral switches off.
After fault clearance, the product is operational again.
Important :
- Ferromagnetic transformers must be changed to more
than 60% of their nominal power.
- Take account of the efficiency of the ferromagnetic
transformers when calculating the permissible power
(eg. transformer for a 50 W bulb with efficiency of 0.78
=> actual power consumed by the transformer = 64 VA).
