Summary of Contents for Ariens GRAVELY Sno-Thro

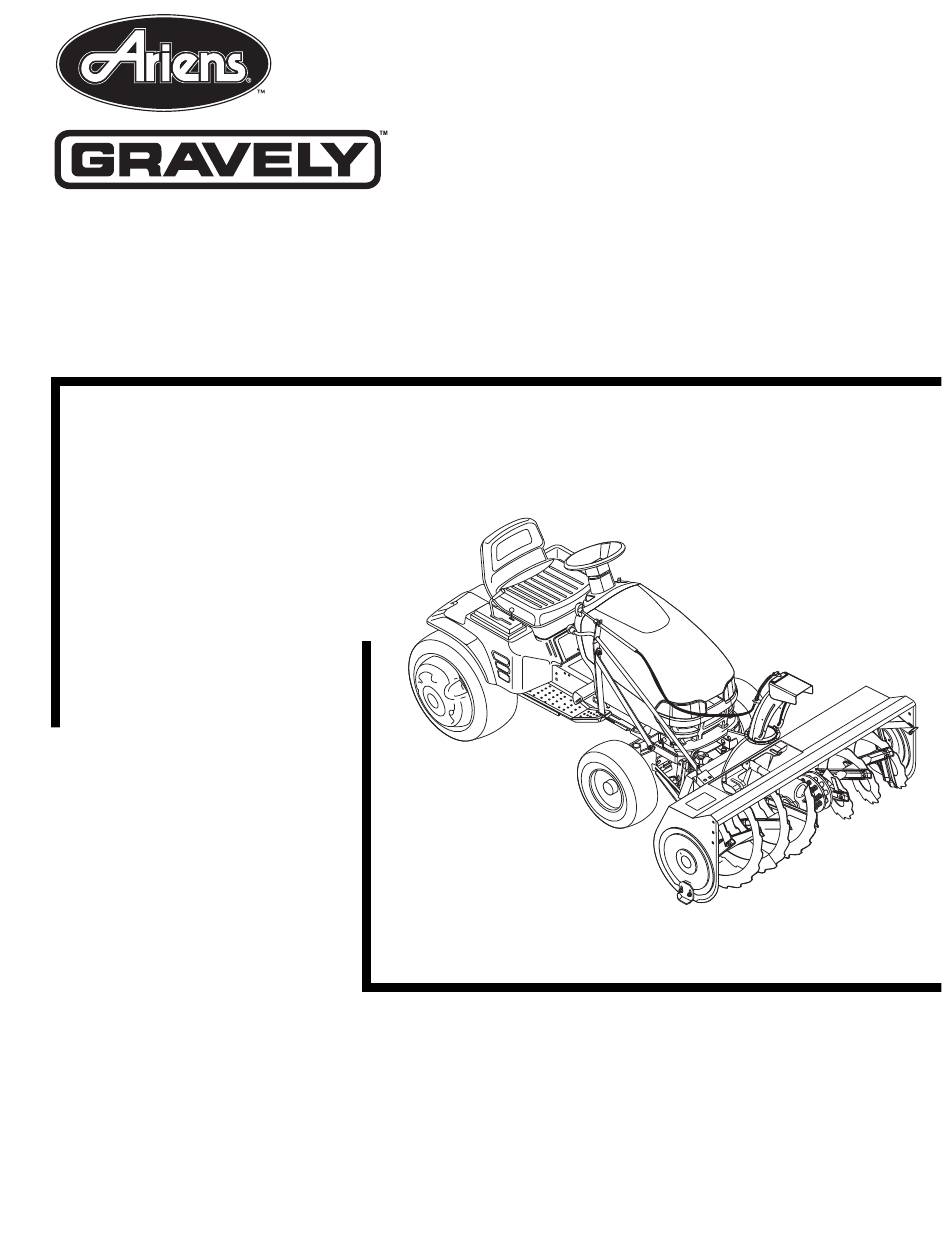

- Page 1 Sno-Thro Owner/Operator & Parts Manual Model 831045 03098300D 8/03 Supersedes 03098300A - C Printed in USA...
-
Page 2: Controls & Features
CONTROLS AND FEATURES Figure 1 ENGLISH 1. Remote Deflector Control 2. Steering Column 3. Chute Control Brace 4. Chute Control Crank 5. Chute Bracket 6. Discharge Chute 7. Chute Deflector 8. Impeller 9. Auger/Impeller Housing 10. Auger 11. Torque Limiter 12. -
Page 3: Table Of Contents
All claims meeting properly. requirements during the limited warranty period will be NOTE: To locate your nearest Ariens Dealer, go to honored, whether or not the product registration card is www.ariens.com on the internet or call returned. -
Page 4: Safety
3. Review control functions and operation of the 5. Fill out a Product Registration Card and return unit. Do not operate unit unless all controls the card to the Ariens Company or go to function as described in this manual. www.ariens.com or www.gravely.com. - Page 5 Rotating parts! Stop engine and remove key NEVER allow anyone to operate this unit when their before clearing. High speed impeller rotates alertness or coordination is impaired. below discharge opening. Wait for all DO NOT operate unit without wearing adequate winter moving parts to stop before removing outer garments.
- Page 6 DO NOT operate at too fast a rate. Fuel is highly flammable and its vapors are explosive. Handle with care. Use an approved fuel container. Slow down and turn corners slowly. NO smoking, NO sparks, NO flames. ALWAYS allow Do not operate in reverse unless absolutely necessary. engine to cool before servicing.
-
Page 7: Assembly
ASSEMBLY 7. Fasten spring arms to both sides of tractor. WARNING: AVOID INJURY. Read and 8. Secure spring arm latches to both sides of tractor understand Assembly Safety Rules in Safety (Figure 5). section before proceeding. Refer to Parts for detailed assembly illustrations. Tools Required •... -
Page 8: Operation
9. Slide cable mounting plate under side panel lip 12. Position chute on auger/impeller housing (Figure (Figure 6). Place cable mounting bracket over mounting plate. 13. Fasten with chute clamps and tap screws (in 10. Install two (2) hex bolts and lock washers through parts bag). - Page 9 7. Position chute crank through upper hole in chute CONTROLS AND FEATURES control support and fasten end in spool with Runners hairpin in the shortest position (Figure 9). Check and adjust runners (see Service and 8. Slide handle end of deflector control cable Adjustments ).
-
Page 10: Maintenance
OTt2000 basis. More frequent service may be required. 2. Add lubricant if required. Allow oil to drain to level of plug and replace plug. MAINTENANCE SCHEDULE 3. Use only Ariens special gear lubricant L-2 (Part Every Every Daily Yearly Number 00008000). -
Page 11: Service & Adjustments
SERVICE AND ADJUSTMENTS 1. Position unit on a hard, flat, smooth level surface. WARNING: AVOID INJURY. Read and 2. Adjust runners by inserting a spacer of desired understand Maintenance and Service Safety thickness under center of scraper blade, loosen Rules in Safety section before attempting hardware, slide runners to flat surface (Figure service or adjustments. -
Page 12: Storage
2. Auger/Impeller frozen. 2. Take unit to a heated area to thaw. SPECIFICATIONS ACCESSORIES Model Number 831045 See your authorized Ariens dealer to add the additional accessories available to your Sno-Thro. Description Sno-Thro Clearing Width 48" Part No. -
Page 14: Parts
& I RIVE DLERS Model 831045 39 11 OTt0390 Item Ariens Part No. Gravely Part No. Qty. Description 03086200 051657 Bearing Flange 03094500 03094500 Universal Spline Half w/Lok 03186400 037544 Universal Plate Half 03091900 03091900 Shaft U-Joint Sno Head 07012600 411027 Fitting-Lube .25-28 x .256... - Page 15 & I RIVE DLERS Model 831045 Item Ariens Part No. Gravely Part No. Qty. Description 06600100 103907 Key-Woodruff .188 x .875 x .38 06529700 06529700 Nut-Locking -Center .25-20 07412000 07412000 Screw-Tapping-Hex-Washer Head .25-20 x .50 06530100 06530100 Nut-Locking-Flange .250-20 03085843...
- Page 16 & C INKAGE ONTROLS Model 831045 35 34 OTt0343 Item Ariens Part No. Gravely Part No. Qty. Description 06537200 06537200 Nut-Locking-Jam-Center .375-16 07509600 049106 Knob 03081900 049105 Chute Control Crank 030930 030930 Support-Rod 06223600 06223600 Bolt-Round Head Square Neck .38-16 x 1.0...
- Page 17 & C INKAGE ONTROLS Model 831045 06529600 06529600 Nut-Locking-Center .38-16 06117000 06117000 Screw-Machine-Hex-Washer Head 8-32 x .75 07530800 07530800 Knob-Black 06917500 06917500 Pivot 06943400 06943400 Control Cable 06706900 06706900 Pin-Center .09 x .75 06435700 06435700 Washer-Flat-Steel .38 x .875 x .083 05946900 05946900 Bolt-Hex .31-18 x 1.00 Grade 5...
- Page 18 & H UGER OUSING Model 831045 OTt0381...
- Page 19 & H UGER OUSING Model 831045 ItemAriens Part No.Gravely Part No.Qty. Description 53127400 53127400 48 Auger/16 Impeller Housing 031954 43 031954 43 Scraper Blade 031858 43 031858 43 Scraper Blade Brace 00113800 035945 Pipe Plug 06529600 06529600 Nut-Locking Center .375-16 05948700 05948700 Bolt-Hex .38-16 x 1.00 Grade 5...
- Page 20 Sno- Thro, see Sno Thro Raise attachment and unlatch owners manual for arms before removing springs requirements. 077995 078578 Item Ariens Part No. Gravely Part No. Qty. Description 63611800 63611800 Decal-Set Danger 07728900 07728900...
-
Page 21: Warranty
(90) days after date of purchase, and Ariens Company will repair or replace any such part or accessory free of charge, except for labor, during that period. - Page 22 Ariens Company Gravely A Division of Ariens Company 655 West Ryan Street P.O. Box 157 Brillion, WI 54110-0157 920-756-2141 Fax 920-756-2407 www.ariens.com or www.gravely.com...
