Invision MX900 Instruction Manual

Parts List:
Severe personal injury and property damage can result from improper installation or assembly. Please read the following warning carefully before beginning.
• If you do not understand the instructions or have any concerns or questions please contact us or a competent installer.
• Do not install or assemble if the product or hardware is damaged or missing. If you require replacement parts, please contact us at Invision for assistance.
• This product fits most VESA compliant 22"-32" LCD/monitors to a maximum weight of 12kg (26.5lb).
• For safe installation, the desk you are mounting it to must support minimum 3 times the weight of the total load (the mount, the monitor and all accessories weight).
• Do not use this product for anything other than the original design purpose.
• This product contains moving parts, please use with caution.
• When installing the monitor take care not to damage electrical wiring or power source.
• Important – mains and data cables must be free from twisting and/or shearing.
• The manufacturer disclaims any liability for the modifications, improper installation or installation over the specified weight range. The manufacturer will not be liable for any damages arising from the use of,
or inability to use the product.
• This product is designed for indoor use only, use of this product outdoors could lead to product failure and severe personal injury.
• This product contains a high pressure gas piston This mechanism is not user serviceable and any interference could result in injury or damage. Please dispose of with caution.
• In order to ensure the performance of the gas piston it is recommended to fully extend the arm several times per month.
Lets Get Started!
If you require assistance please contact us at: help@InvisionTechnology.co.uk
English
Invision MX900

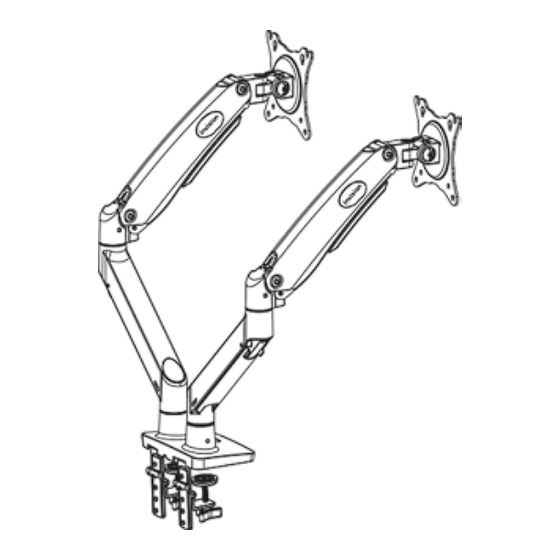

Ergonomic Gas Assisted Dual Monitor Arm
Instruction Manual
VESA Compliance 75x75mm & 100x100mm
Recommended Screen Sizes 22" - 32"
Integrated Cable Management
Load Capacity 3 - 12kg (6.6 - 26.5lbs) single
To receive large format PDF instructions please email
help@InvisionTechnology.co.uk
Tools List:
Important:
1. Check the box contains all the items in the Parts List.
2. Check the screens VESA mounting measurements and
monitor weight.
3. Please read the instructions fully and plan how to mount
your monitor.
4. You may need additional tools: A drill will only be needed
if you are bolting it through a desk, the screwdriver is used
for removing the cable management.
For more information visit www.InvisionTechnology.co.uk
WARNING!
1

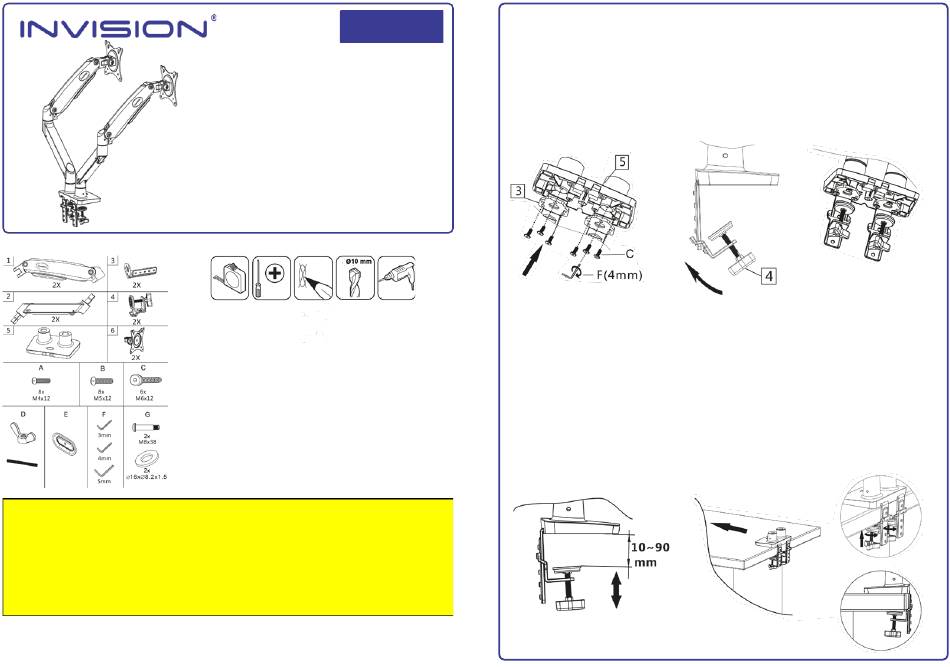

1. Clamp Installation

1. Secure clamping plates (3) to base (5) with bolts (C) using 4mm Allen key (F) and tighten – see
Diagram 'A'.
2. Slide clamp (4) over clamping plate (3) and straighten to lock into place. Repeat with the 2nd clamp and
clamping plate – see Diagram 'B'.
Diagram 'A'
3. Measure the thickness of your desk, adjust the height of your clamps so when tightening the clamps
have enough thread on them to secure to desktop – see Diagram 'C'.
4. Secure base assembly to the desktop making sure base is in full contact with the face of the desktop
and cables run through the back of the base – see Diagram 'D'.
Please note:
If you are mounting heavy screens on this monitor arm please evaluate the desktop/ work-surface
you are mounting it to. (Example: Wooden surfaces like chipboard or MDF are compressed high
density boards and are less likely to cause marks or indentations. Natural wooden surfaces are
softer (not compressed) so you may consider adding protection.
Diagram 'C'
V20220218
Letters and numbers in ( ) are referred to in the Parts List
Diagram 'B'
Diagram 'D'
2
