INCLUDED HARDWARE PACKAGE
1" Wood
1/2" Wood
Screw (8)
Screw (5)
INCLUDED TOOLS
m5 and m6
Allen Wrench
Allen Wrenches
"Note" Ideal weight capacity range for the Luften desk is 40-50lbs with a standard 350N spring. The table support is
solely intended to serve the purpose of ergonomic adjustments for your desk in accordance with the weights and measurements
given in these instructions. Any usage other than that mentioned in this document is inappropriate; the manufacturer disclaims
liability for any resulting damages. In such cases the user bears the full risk. The manufacturer cannot be held responsible for
any losses or damages resulting from unauthorized modifications of this desk.
FOR VIDEO INSTALL INSTRUCTIONS GO TO TheStandingDesk.com/install
Flat Head
Socket Head
Cap Screw (8)
Cap Screw (8)
TOOLS NOT INCLUDED
m8
#2 Phillips Head
Screwdriver
TWIN COLUMN TABLE
Boden Cord Clip (1)
PLEASE REVIEW these instructions completely
and verify all parts are included in this package
before beginning assembly. Do not discard
the packaging until satisfied that the product
operates properly. Assembly and operation
of this desk must be in accordance with these
assembly instructions to avoid the risk of injury.
1/2" and 5/16"
Keep these Assembly and Operation Instructions
Wrenches
near the assembly for reference.

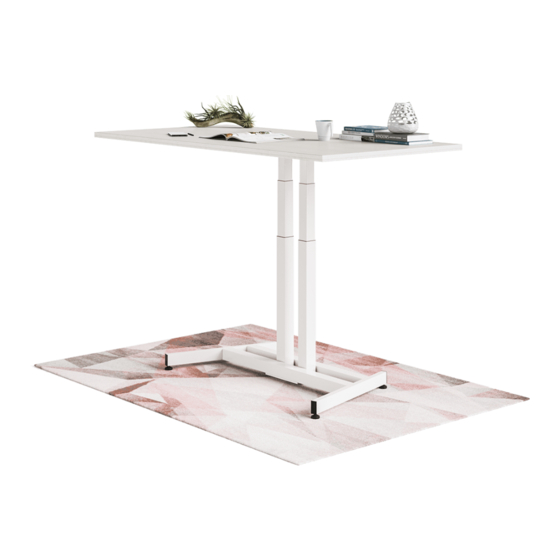

THE LÜFTEN
Glides (4)
OPTIONAL
Castors (4)
Rev. Date 04/26/22
1 / 4
Advertisement
Table of Contents
Related Manuals for THE STANDING DESK THE LUFTEN
Summary of Contents for THE STANDING DESK THE LUFTEN
- Page 1 “Note” Ideal weight capacity range for the Luften desk is 40-50lbs with a standard 350N spring. The table support is solely intended to serve the purpose of ergonomic adjustments for your desk in accordance with the weights and measurements given in these instructions.
- Page 2 THE LÜFTEN TWIN COLUMN TABLE ASSEMBLY INSTRUCTIONS • Remove traveling screws from both columns with the M5 ALLEN WRENCH. CAUTION: When screw is removed from the column without the Boden cord attached, the Flat Head Cap Screw (8) column will move in and out freely. •...
- Page 3 THE LÜFTEN TWIN COLUMN TABLE ASSEMBLY INSTRUCTIONS • Slip the base over both the columns and attach the base with the Hex Socket Cap Screw (8) SOCKET HEAD CAP SCREWS and the M8 ALLEN M8 Allen Wrench WRENCH. • Attach the handle to the worksurface with the 1/2”...
- Page 4 THE LÜFTEN TWIN COLUMN TABLE ASSEMBLY INSTRUCTIONS • Twist in the GLIDES or the (optional) CASTORS into the Glides (4) holes on the bottom of the base. • If not secure OPTIONAL enough, tighten with Castors (4) a 1/2” WRENCH. 1/2”...
