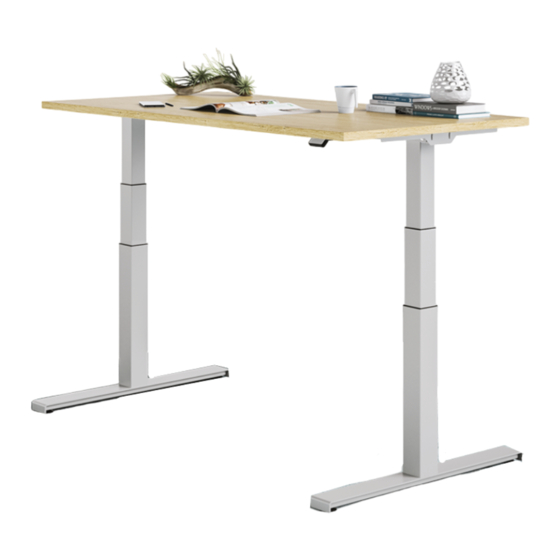

THE ÖBEN
THE
STANDING
DESK

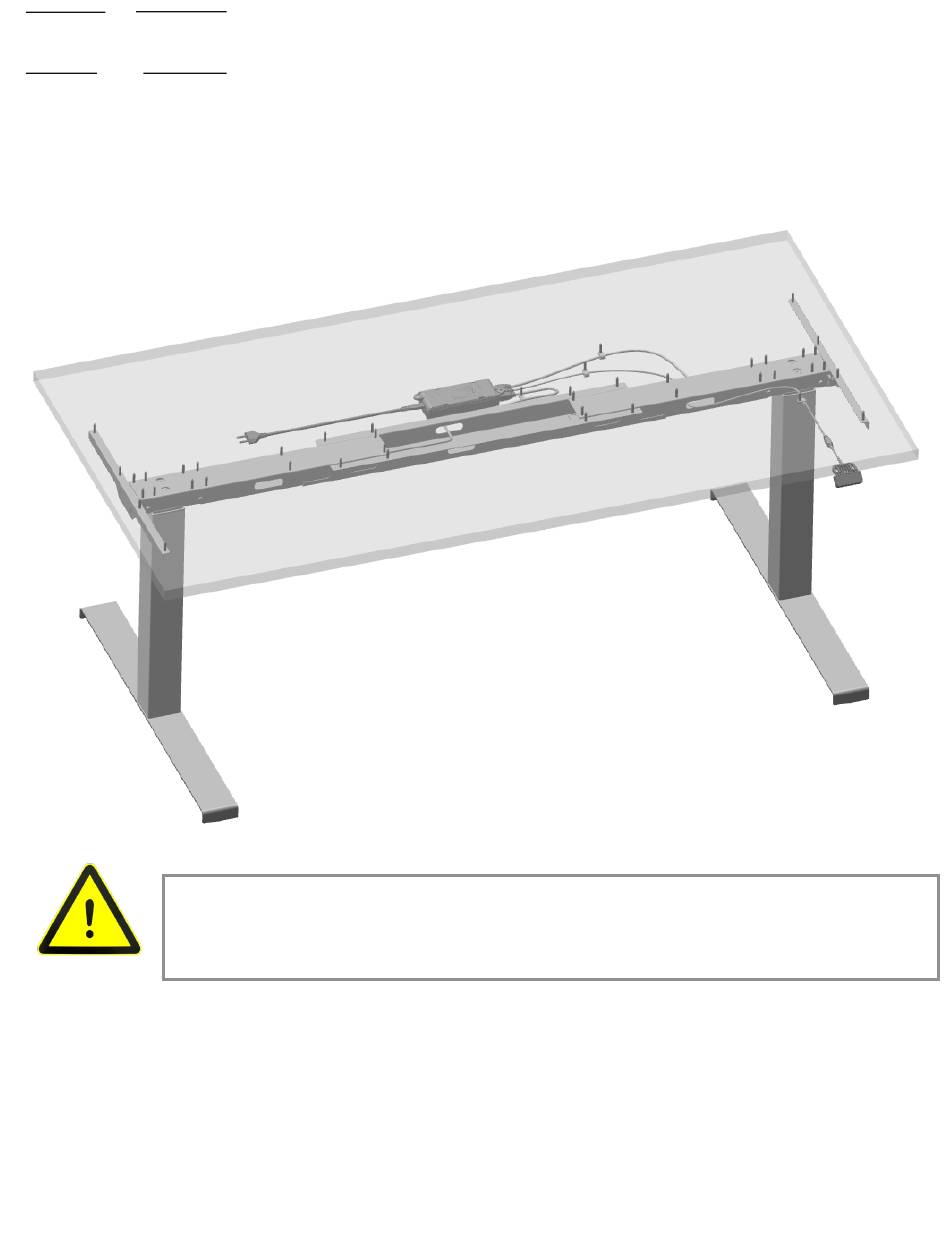

CAUTION: It is important to read these instructions thoroughly before assembly to
avoid potential risk and injury. Familiarize yourself with the inventory of parts and the
accompanying illustrations to assure safe and proper assembly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ÖBEN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for THE STANDING DESK ÖBEN

Summary of Contents for THE STANDING DESK ÖBEN

  • Page 1 THE ÖBEN STANDING DESK CAUTION: It is important to read these instructions thoroughly before assembly to avoid potential risk and injury. Familiarize yourself with the inventory of parts and the accompanying illustrations to assure safe and proper assembly.
  • Page 2 THE ÖBEN STANDING DESK Thank you for choosing The Öben, a high-performance 2 column lift base with electric adjustment. It has been manufactured with care and precision and it has passed numerous quality and safety checks to ensure trouble-free and safe operation. You can be assured of lasting satisfaction with your Öben model.
  • Page 3 THE ÖBEN STANDING DESK Supplied goods Type Package 1 Column LifeUp Pro TM Q70/3 2pcs. Top Support 2pcs. Foot (Either Style) 2pcs. leveler 4pcs. Type Package 2 Adjustment-U-Channel 1pc. 1200mm -1800mm tube frame 2pcs. power supply 1pc. hand switch 1pc. power cord 1pc.
  • Page 4 THE ÖBEN STANDING DESK Type Package 3 button-head screw 5mm diameter x 25mm 42pcs. cylinder screw with hexagon socket M8 x 16mm 8pcs. button-head screw 4mm diameter x 16mm 2pcs. cord mounting clamp 4pcs. Assembly Install 24 5mm x25mm screws in pre-drilled holes marked on work surface sheet. TOOLS/ (See the Work Surface Mount Hole Diagrams on page 9.)
  • Page 5 THE ÖBEN STANDING DESK Place adjustment U-Channel and top support flanges into place as shown. Top support TOOLS/ flanges must go under tube frame. ACCESSORIES Install 16 5mm x 25mm screws into the support flange and frame as shown. TOOLS/ ACCESSORIES 5mm x 25 mm Phillips...
  • Page 6 THE ÖBEN STANDING DESK Engage front tabs on pins then rotate column down to snap rear tabs into position. TOOLS/ ACCESSORIES Install feet with 8 M8 x 16mm bolts. Then install 4 leveling glides. TOOLS/ ACCESSORIES M8 x 16mm max. 12Nm For video install instructions go to thestandingdesk.com/install...
  • Page 7 THE ÖBEN STANDING DESK Install handset with 2 4mm x 16 mm screws. Install power supply with 2 5mm x 25mm TOOLS/ screws. ACCESSORIES power 5mm x 25mm supply 4mm x 16mm handset #2 Phillips magnetic tip Suggested Assembly NOTE: See pre drilled whole photo referenced on the...
  • Page 8 THE ÖBEN STANDING DESK Plug in handset and powercord. TOOLS/ ACCESSORIES powercord handset Install cable clamps where desired. TOOLS/ ACCESSORIES 4mm x 16mm cord mounting clamp #2 Phillips magnetic tip For video install instructions go to thestandingdesk.com/install...

  • Page 9: Reference Guides

    THE ÖBEN STANDING DESK Reference Guides 60” Work surface mount hole diagram. 48” Work surface mount hole diagram. For video install instructions go to thestandingdesk.com/install...

  • Page 10: Basic Functions

    THE ÖBEN STANDING DESK Performing a Position Reset Procedure Risk of minor or moderate injury through crushing Collision Detection (ISP) is inactive during start-up and reset processes. This may lead to minor or moderate injury through crushing. Ensure that no persons or objects are in the table‘s range of motion Before using The Oben system, a Postion Reset Procedure is required.

  • Page 11: Extra Functions

    Operate the ObenSystem as normal. Green Light Flashing Rapidly Position Reset Required. Performing a Position Reset Procedure Notice Oben Do not operate the system if problems persist. Contact The Standing Desk for further information. For video install instructions go to thestandingdesk.com/install...

  • Page 12: Troubleshooting

    • • The Actuator is defective Ensure that all plugs have been connected properly • • The hand switch is defective Contact The Standing Desk • Contact The Standing Desk • • The table only moves There was power failure Perform a Position Reset Procedure •...

  • Page 13: Customer Service

    All pictures, graphics and texts are subject to copyright protection. Reproduction or use of such graphics, photos and texts in other electronic or printed publications, for example, is not permitted without the express consent of The Standing Desk. For video install instructions go to thestandingdesk.com/install...
