THE
STANDING
DESK
INCLUDED HARDWARE PACKAGE
1" Wood
1/2" Wood
Screw (4)
Screw (7)
INCLUDED TOOLS
m5
m6
Allen Wrench
Allen Wrench
NOTE: Maximum lift capacity for the Ändern Motor desk is 175 lbs. The table support is
solely intended to serve the purpose of ergonomic adjustments for your desk in accordance with
the weights and measurements given in these instructions. Any usage other than that mentioned
in this document is inappropriate; the manufacturer disclaims liability for any resulting damages. In
such cases the user bears the full risk. The manufacturer cannot be held responsible for any losses
or damages resulting from unauthorized modifications of this desk.
FOR VIDEO INSTALL INSTRUCTIONS GO TO TheStandingDesk.com/install
9/16" Wood
Flat Head
Screw (3)
Cap Screw (4)
REQUIRED TOOLS
#2 Phillips Head
1/2" Wrench
Screwdriver

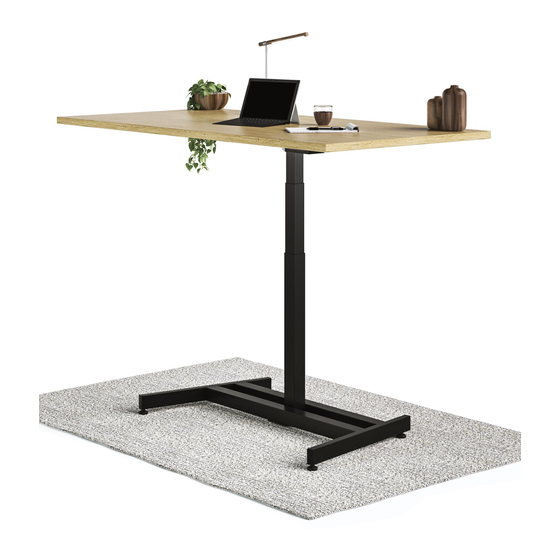

THE ÄNDERN MOTOR
MONO COLUMN ELECTRIC TABLE
Socket Head
5/16" Cable Clip (3)
Cap Screw (4)
PLEASE REVIEW these instructions completely
and verify all parts are included in this package
before beginning assembly. Do not discard
the packaging until satisfied that the product
operates properly. Assembly and operation
of this desk must be in accordance with these
assembly instructions to avoid the risk of injury.
Keep these Assembly and Operation Instructions
near the assembly for reference.
ASSEMBLY INSTRUCTIONS

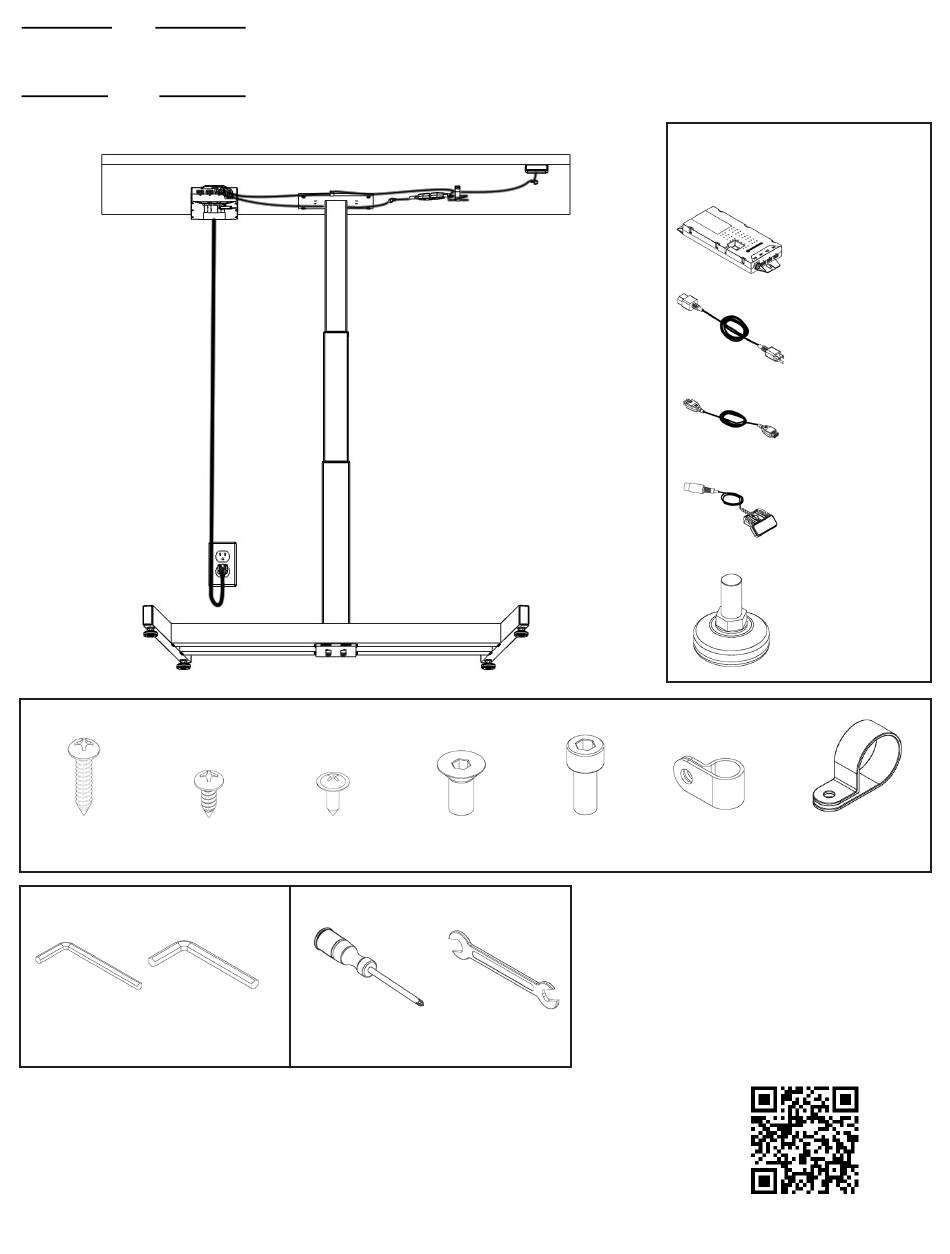

INCLUDED CORDS AND
COMPONENTS
Motor Control
Box (1)
3m Power Cord (1)
Motor Extension
Cable (1)
Control Handset (1)
Glides (4)
7/8" Cable
Clips (2
Article #: 929 011 369 0000
)
SCAN
FOR
ASSEMBLY
VIDEOS
Advertisement
Related Manuals for THE STANDING DESK THE ÄNDERN MOTOR
Summary of Contents for THE STANDING DESK THE ÄNDERN MOTOR
- Page 1 THE ÄNDERN MOTOR STANDING MONO COLUMN ELECTRIC TABLE ASSEMBLY INSTRUCTIONS DESK INCLUDED CORDS AND COMPONENTS Motor Control Box (1) 3m Power Cord (1) Motor Extension Cable (1) Control Handset (1) Glides (4) INCLUDED HARDWARE PACKAGE 1” Wood 1/2” Wood 9/16” Wood Flat Head Socket Head 5/16”...
- Page 2 THE ÄNDERN MOTOR STANDING MONO COLUMN ELECTRIC TABLE ASSEMBLY INSTRUCTIONS DESK Thank you for choosing The Ändern Motor, a high-performance single column lift base with electric adjustment. It has been manufactured with care and precision and it has passed numerous quality and safety checks to ensure trouble-free and safe operation.
- Page 3 THE ÄNDERN MOTOR STANDING MONO COLUMN ELECTRIC TABLE ASSEMBLY INSTRUCTIONS DESK ATTENTION: Do not plug table into electrical outlet until all steps are completed and directions state to. Flat Head Cap Screw (4) • Attach the top plate to the column Flat Head Cap Srews and the m5 Allen Wrench.
- Page 4 THE ÄNDERN MOTOR STANDING MONO COLUMN ELECTRIC TABLE ASSEMBLY INSTRUCTIONS DESK • Slip the base over the column and attach the base with the Socket Head Cap Screw and the m6 Allen Wrench. Socket Head Cap Screw (4) Allen Wrench a.
-
Page 5: User Defined
THE ÄNDERN MOTOR STANDING MONO COLUMN ELECTRIC TABLE ASSEMBLY INSTRUCTIONS DESK NOTE: Motor Cable MUST be plugged into Motor Group 1 (M1) on Control Box. • Attach the handset to the worksurface with the 1/2” Wood Screws and a Phillips Head Screwdriver. - Page 6 THE ÄNDERN MOTOR STANDING MONO COLUMN ELECTRIC TABLE ASSEMBLY INSTRUCTIONS DESK • Twist in the Glides into the holes on the bottom of the base. • If not secure enough, tighten with Wrench. Glides (4) 1/2” Wrench • Carefully flip the table upright.
- Page 7 THE ÄNDERN MOTOR STANDING MONO COLUMN ELECTRIC TABLE ASSEMBLY INSTRUCTIONS DESK RESET INSTRUCTIONS: The Ändern Motor must be reset before use. 1. Press the desktop DOWN and the desktop UP buttons simultaneously on the handset. 2. Keep the buttons pressed until the desktop reaches the MIDDLE reset position and has come to a complete stop.
- Page 8 THE ÄNDERN MOTOR STANDING MONO COLUMN ELECTRIC TABLE ASSEMBLY INSTRUCTIONS DESK REFERENCE 24” x 40” Work surface pilot hole diagram. 29” x 47” Work surface pilot hole diagram. FOR VIDEO INSTALL INSTRUCTIONS GO TO TheStandingDesk.com/install...
