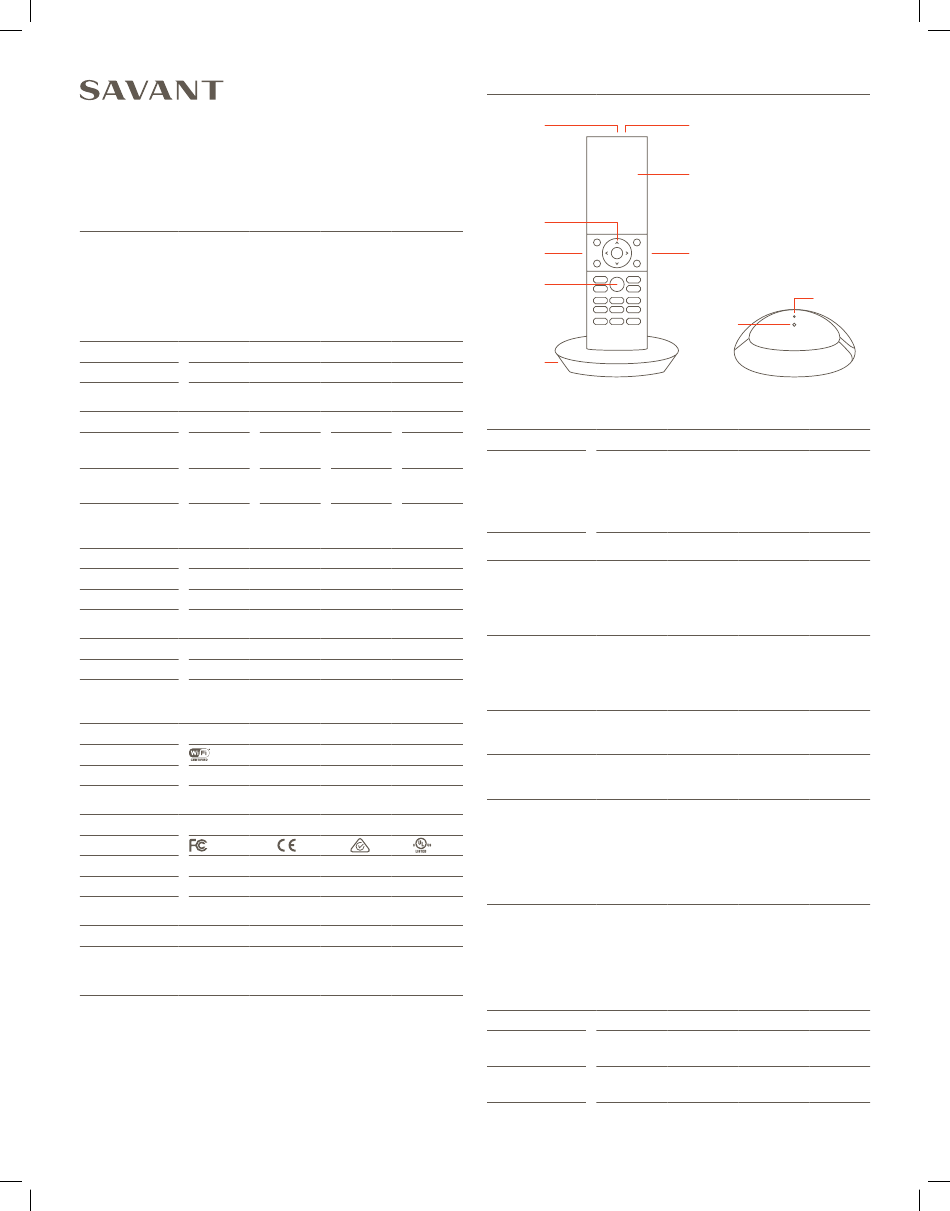

Savant PRO SYSTEM REM-1000 Quick Reference Manual

SAVANT® REM-1000 PRO SYSTEM
REMOTE AND BASE
QUICK REFERENCE GUIDE
BOX CONTENTS – SKU REM-1000-00

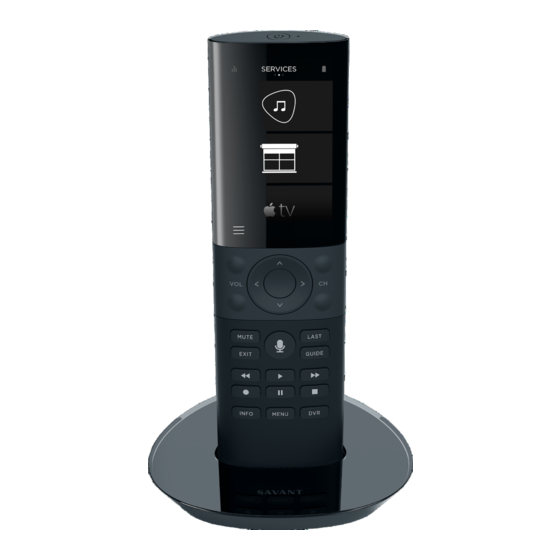

(1) Savant Pro Remote (model: SUR-1000-00)
(1) Savant Pro Remote Base (model: SRB-1000)
(1) USB Power Supply with international blades (025-0162-xx)
(1) 1.5 m USB A to micro USB B cable (064-0409-xx)
(1) Quick Reference Guide (this document)
SPECIFICATIONS
ENVIRONMENTS
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% (non-condensing)
DIMENSIONS Height
Remote 7.24 in
SUR-1000-00 (183.8 mm)
Remote Base 1.17 in
SRB-1000 (29.6 mm)
Packaging with 8.85 in
contents (224.8 mm)
POWER
Power Supply 100/240V AC (60/50 Hz) to 5V DC 2A
Base Input 5V DC 2A
Remote Battery Rechargeable Lithium-Ion
DISPLAY
Touchscreen High Resolution Multi-Color LCD Display
LCD Dimensions 2.57 in (65.3 mm) x 1.46 in (37.0 mm)
Diagonal 2.95 in (74.9 mm)
STANDARDS
Wireless Wi-Fi® (802.11 b/g/n 2.4 GHz)
Bluetooth
Bluetooth v4.0
Security WPA™, WPA2™, WPA™ + WPA2™, WEP
REGULATORY
Safety & Emissions FCC Part 15,
Pro Remote Base Contains FCC ID: TLZ-CU277B and IC: 6100A-CU277B
Pro Remote
FCC ID: ASU-CRU0100 and IC: 10052A-CRU0100
RoHS Compliant
MINIMUM SUPPORTED RELEASE
Savant OS da Vinci 8.0
ADDITIONAL INFORMATION
– The Pro Remote and Base need to be within 30 feet (9.14 m) of each
other to communicate.
– Support for up to two Pro Remotes per user zone.
– Automatic software updates to the Remote will initiate if it is left
cradled overnight, with no A/V services active.
– Software updates can be initiated manually from the About page on
the Remote (only if update is available).
– The Pro Remote Base will receive firmware updates when updated
firmware is available in the da Vinci software running on the Host.
Savant_QRG_ProRemote_REM-1000_Artwork_03.indd 1
Width Depth Weight
1.97 in 1.06 in 0.33 lb
(50.0 mm) (27.0 mm) (148.6 g)
4.16 in 3.10 in 0.36 lb
(105.6 mm) (78.8 mm) (163.4 g)
4.90 in 3.71 in 1.60 lb
(124.4 mm) (94.2 mm) (725.0 g)
CE Mark, C-Tick, UL
GET TO KNOW THE REMOTE
POWER
NAVIGATION
(D-pad)
VOLUME
VOICE
COMMAND
REMOTE
BASE
POWER BUTTON
Press/Release – Powers the Remote on. Savant Logo will
appear in 5-7 seconds.
– With the Remote powered on, the power
button can toggle the last used A/V service
on or off.
Press/Hold 5 sec.
– Powers Remote off.
MICROPHONE
The microphone for Voice Commands is positioned
under the small hole on top of Remote.
IMPORTANT: Do not insert objects into the
microphone opening.
TOUCHSCREEN
– Multi-colored LCD display with multiple pages
DISPLAY for viewing and control of available services.
– Motion activated.
– One touch and swipe operation.
VOLUME Increase or decrease volume of the service selected
on the touchscreen display (active service).
CHANNEL
Channel Up or Channel Down the service selected
on the touchscreen display (active service).
NAVIGATION – Standard up, down, left, and right arrows for
( D-pad )
on-screen control.
– Press and hold the up/down arrows to page up
or page down the on-screen menus.
– Press the Select button at the center of the D-pad
to select the highlighted item.
VOICE COMMAND Activate services, scenes, environmental controls, and
various other functions using voice commands. Press
and hold the Voice Command button, wait for the
on-screen prompt, and speak the commands clearly.
TIP: Speak the phrase Voice Commands into the
Remote to open a list of supported commands.
REMOTE BASE
Charging Charges the battery when the Remote is set into
the Remote Base.
Wi-Fi Remote Base communicates with the Host over the
local Wi-Fi network.
Bluetooth Remote Base communicates with the Pro Remote
using Bluetooth v4.0.
MICROPHONE
TOUCHSCREEN
DISPLAY
CHANNEL
LED STATUS
LIGHT
RESET
PINHOLE
REMOTE BASE
(Bottom)
