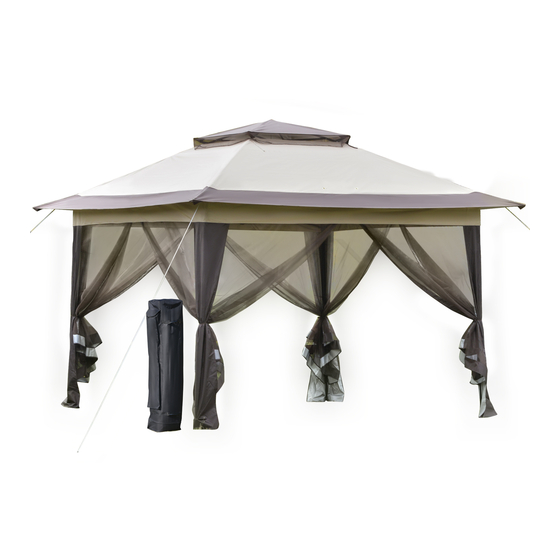

Outsunny 84C-252 Assembly & Instruction Manual

Hide thumbs Also See for 84C-252:

Advertisement

Quick Links

Download this manual
INbrb002_UK_IT
84C-252
READ AND SAVE THIS INSTRUCTIONS FOR FUTURE USE
ASSEMBLY & INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the 84C-252 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Outsunny 84C-252

Summary of Contents for Outsunny 84C-252

  • Page 1 INbrb002_UK_IT 84C-252 READ AND SAVE THIS INSTRUCTIONS FOR FUTURE USE ASSEMBLY & INSTRUCTION MANUAL...
  • Page 2 WARNING: 1. A 3 person assembly is required for this tent. 2. Please take appropriate actions as heavy rain, wind and snow can damage the tent. If necessary please disassemble and store for later use. 3. In snowy conditions please do not allow the thickness of the snow to be more than 5 cm on the roof, this should be cleared as soon as possible for your safety.
  • Page 3 PART ① ② ③ ④ ⑤ ⑥ ⑦ EN: Open the canopy frame. With two persons on the diagonal ends, lift and partially pull the canopy frame apart. IT: Aprire la struttura di sostegno della tenda. Con due persone alle estremità diagonali, sollevare e tirare per aprire parzialmente la struttura di sostegno della tenda.
  • Page 4 EN: Unfold the small canopy top and place it over the open frame. Attach the four canopy corners to the frame top. IT: Aprire il piccolo tetto della tenda e posizionarlo sopra la struttura di sostegno aperta. Attacca i quattro angoli della tenda alla parte superiore della struttura di sostegno EN: Unfold the large canopy top and place it over the open frame.
  • Page 5 EN: Under the canopy, place one hand on the upper frame and use the other hand to push the central hub straight up until it clicks into the central pole. Finish attaching the large canopy inside the canopy frame using the Velcro loops. IT: Sotto la tenda, posizionare una mano sulla struttura di sostegno superiore e usare l'altra mano per spingere il fulcro centrale verso l'alto finché...
  • Page 6 EN: Unfold and open one zipper of the mosquito netting, go under the canopy. Connect the velcro loops around the frame to secure the mosquito netting in place. Hook the canopy end into the leg holes on the canopy legs. IT: Aprire una cerniera della zanzariera, passare sotto la tenda.
  • Page 7 EN:Attach the ropes to the plastic rings on the awning and tie the ropes to the stakes in the ground. Ensure the ropes have the proper tension by adjusting the plastic adjusters on the ropes. IT:Fissare le corde agli anelli di plastica sulla tenda e legare le corde ai paletti nel terreno. Assicurarsi che le corde abbiano la giusta tensione tramite i regolatori di plastica sulle corde...
  • Page 8 Nach jedem Gebrauch EN:Disassembling the Gazebo Store all parts (like the stakes) in the corresponding bag to prevent possible tearing or damage to the fabric. IT:Smontaggio della Tenda Conservare tutte le parti (come i paletti) nella sacchetto corrispondente per evitare possibili strappi o danni al tessuto.
  • Page 9 EN:Release the push button lock and shorten the telescoping legs. IT:Rilasciare il blocco del pulsante e accorciare le gambe telescopiche. EN:Push down the red tab on the central hub to unlock the frame. IT: Spingere verso il basso la linguetta rossa sul fulcro centrale per sbloccare la struttura di sostegno.
  • Page 10 EN: Remove elastic loops on the top from each eve extension corner. Stand opposite a partner and grasp the lower truss bar. Lift the frame off the ground and slowly walk toward partner being careful not to pinch fingers. IT: Rimuovere i passanti elastici sulla parte superiore da ogni angolo di estensione.Stare in piedi di fronte a un partner e afferrare la barra di sostegno inferiore.
