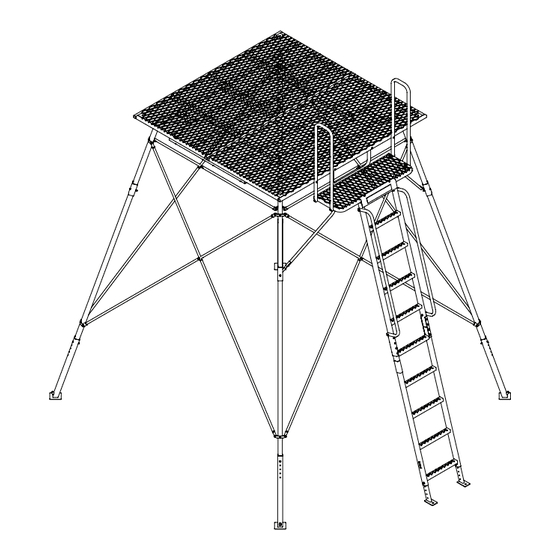

Operator's Manual
LANDMARK
™
10' 600 TOWER
MODEL LM623
Maximum Height
12' 1" to Rail
10' 0" to Platform
Maximum Field
Rating
800 lbs
(300 lbs per person max)
GAS/OIL
RATIO
50:1
PRODUCT MEETS
INDUSTRY STANDARDS
RECOGNIZED BY
Get parts online at
P/N: 40575
© 2022 RETI
C/N: 40567
www.HuntRiversEdge.com
All Rights Reserved
REV3: 02/22/22
PARTICIPATING MEMBER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LANDMARK 600 LM623 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rivers Edge LANDMARK 600 LM623

Summary of Contents for Rivers Edge LANDMARK 600 LM623

  • Page 1 Operator's Manual LANDMARK ™ 10’ 600 TOWER MODEL LM623 Maximum Height 12’ 1” to Rail 10’ 0” to Platform Maximum Field Rating 800 lbs (300 lbs per person max) GAS/OIL RATIO 50:1 PRODUCT MEETS INDUSTRY STANDARDS RECOGNIZED BY Get parts online at P/N: 40575 ©...

  • Page 2: Table Of Contents

    Instructions should be kept in a safe place and reviewed at least annually. If for any reason you have a problem with your product, DO NOT return to the retailer, contact the Rivers Edge customer ®...

  • Page 3: Warnings

    Operator’s Manual Landmark 10’ 600 Tower ™ READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE ASSEMBLY STOP MODEL LM623 WARNING MAXIMUM USE HEIGHT - 12’ 1” TO RAIL A signal device such as a mobile phone, radio, whistle, TOTAL WEIGHT LIMIT - 800 LB signal flare or personal locator device (PLD) must be on (300 LB PER PERSON MAX) your person and readily available at all times.
  • Page 4 Operator's Manual Landmark 10’ 600 Tower ™ READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE SETUP AND USE STOP WARNING WARNING Do Not use this product until you have watched the Never erect a tripod or tower stand near overhead electrical power lines and/or buried utilities that can safety video, understand it, and practiced the techniques cause electrocution, explosion and/or fire.

  • Page 5: Warnings/Inspection And Maintenance Schedule

    Operator’s Manual Landmark 10’ 600 Tower ™ WARNING INSPECTION AND MAINTENANCE Be sure only one person ascends or descends ladder at a BEFORE EACH USE PERFORM THE FOLLOWING: time. Be certain first person is fully off of the ladder and positioned safely on tower platform or ground before •...

  • Page 6: Hardware Identification Chart

    Operator's Manual Landmark 10’ 600 Tower ™ HARDWARE LIST Item Part No. Image Description BOLT 8930B 1/4 X 3/4 IN BOLT 63282 1/4 X 1 IN BOLT 48240B 1/4 X 1-1/2 IN BOLT 48153B 1/4 X 2 IN BOLT 48271B 1/4 X 2-1/4 IN BOLT 48270B...
  • Page 7 Operator’s Manual Landmark 10’ 600 Tower ™ TOOLS REQUIRED 7/16 IN 32563 WRENCHES 5/16 IN WRENCH HAMMER Check for parts online at www.HuntRiversEdge.com or call 800-345-6007...

  • Page 8: Assembly Instructions

    Operator's Manual Landmark 10’ 600 Tower ™ ASSEMBLY INSTRUCTIONS All assembly must be done completely in this order IMPORTANT ASSEMBLY TIP: before use. Do not tighten any nut and bolt combinations completely until instructions indicate to. Finger tighten plus one turn of Measure out assembly/intended use location, assembled footprint of product is 10’...
  • Page 9 Operator’s Manual Landmark 10’ 600 Tower ™ 3. Secure the two platforms (19) together using four 1/4-20 X 2-1/2 IN bolts (25) and 1/4-20 nuts (29). mesh hidden for clarity 4. Attach the four leg-to-platform attachment parts (3) to the assembled platform using two 1/4-20 X 3 IN bolts (27), two 1/4 IN steel washers (28) and 1/4-20 nuts (29) for each part.
  • Page 10 Operator's Manual Landmark 10’ 600 Tower ™ 5. Attach the entry platform brace (17) to one of the platform sections (19) using two 1/4-20 X 2-1/4 IN bolts (24) and 1/4-20 nuts (29). Attach the entry platform (2) to the entry platform brace (17) using two 1/4-20 X 2-1/4 IN bolts (24) and 1/4-20 nuts (29).
  • Page 11 Operator’s Manual Landmark 10’ 600 Tower ™ 7. Attach the right and left entry platform braces (15, 16) to the entry platform (2) and entry platform hand rails (14) using two 1/4-20 X 3 IN bolts (27) and 1/4-20 nuts (29). Securely tighten all loose hardware at this time.
  • Page 12 Operator's Manual Landmark 10’ 600 Tower ™ 9. Start assembly of the cross braces by inserting a male cross brace (7) into each female cross brace (6). 10. Complete assembly of the cross braces by attaching two cross brace assemblies together using a 1/4-20 X 2 IN bolt (23) and 1/4-20 nut (29) to make four separate cross brace assemblies.
  • Page 13 Operator’s Manual Landmark 10’ 600 Tower ™ 11. Attach the top ladder (9), bottom ladder (13) and ladder connector brackets (12) together using eight 1/4-20 X 2-3/4 IN bolts (26) and 1/4-20 nuts (29). SEE FIGURE 11. Attach two ladder feet (4) by sliding inside bottom ladder (13) and secure using two 1/4- 20 X 1-1/2 IN (22) bolts and 1/4-20 nuts (29).
  • Page 14 Operator's Manual Landmark 10’ 600 Tower ™ 13. While paying attention to the orientation of the cross braces, attach the cross brace assemblies to the inside of the brace-to-leg attachment brackets (1) using a 1/4-20 X 3/4 IN bolt (21) and 1/4-20 nut (29) on each end. The female cross braces (6) should be closer to the platform side of the tower as shown.
  • Page 15 Operator’s Manual Landmark 10’ 600 Tower ™ TILT TOWER ONTO FEET 15.With at least four people, carefully lift on the platform side of the tower and tilt onto its feet. DO NOT lift only on the blind! 16. Using a step ladder, attach the ladder assembly to the entry platform (2) by positioning the attachment plate on the top ladder section (9) on top of the entry platform (2) and by using...
  • Page 16 Operator's Manual Landmark 10’ 600 Tower ™ 17. After the platform has been leveled, to secure the tower to the ground, first start the auger (30) into the ground directly under the center of the platform by using one of the ground stakes (20) as a “T”...

  • Page 17: Illustrated Parts Breakdown

    Operator’s Manual Landmark 10’ 600 Tower ™ ILLUSTRATED PARTS BREAKDOWN - PLATFORM mesh hidden for clarity Check for parts online at www.HuntRiversEdge.com or call 800-345-6007...
  • Page 18 Operator's Manual Landmark 10’ 600 Tower ™ ILLUSTRATED PARTS BREAKDOWN - TOWER LEGS Check for parts online at www.HuntRiversEdge.com or call 800-345-6007...
  • Page 19 Operator’s Manual Landmark 10’ 600 Tower ™ ILLUSTRATED PARTS BREAKDOWN - LADDER mesh hidden for clarity Check for parts online at www.HuntRiversEdge.com or call 800-345-6007...

  • Page 20: Finished Tower

    Operator's Manual Landmark 10’ 600 Tower ™ FINISHED TOWER ASSEMBLED PLATFORM SECTION LEG ASSEMBLY CROSS BRACES LADDER ASSEMBLY Check for parts online at www.HuntRiversEdge.com or call 800-345-6007...

  • Page 21: Parts List

    Operator’s Manual Landmark 10’ 600 Tower ™ PARTS LIST ITEM # PART # DESCRIPTION QTY. ITEM # PART # DESCRIPTION QTY. 35511 BRACKET BRACE TO LEG ATT 48240B BOLT 1/4-20 X 1-1/2 IN 40458 ENTRY PLATFORM 48153B BOLT 1/4-20 X 2 IN 40460 LEG TO PLATFORM ATTACH 48271B...

  • Page 22: Notes

    Operator's Manual Landmark 10’ 600 Tower ™ NOTES Check for parts online at www.HuntRiversEdge.com or call 800-345-6007...
  • Page 23 Operator’s Manual Landmark 10’ 600 Tower ™ NOTES Check for parts online at www.HuntRiversEdge.com or call 800-345-6007...
  • Page 24 WE ARE HUNTERS Ardisam, Inc. Phone: 800-345-6007 1730 Industrial Ave. Fax: 715-822-2124 Cumberland, WI 54829 www.HuntRiversEdge.com *All weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Warning labels in some product images may have been removed for photography purposes only.
