Operator's Manual
LOCKDOWN
WIDE

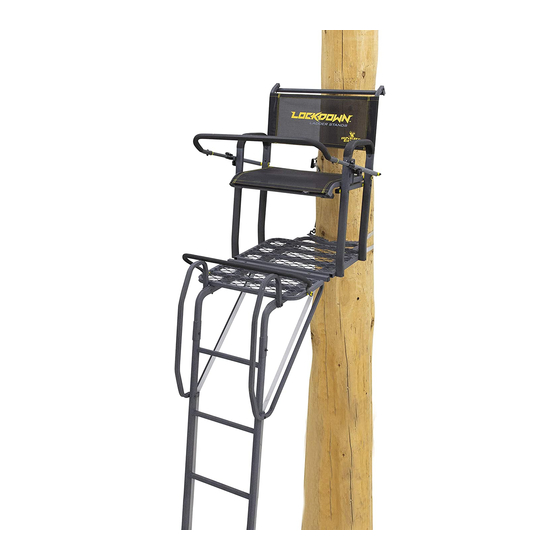

Ladder Stand
MODEL LD201
Maximum Height
17'1" to shooting rail
Maximum Field Rating
300 lbs
Tree Diameter Range
12" to 30"
Wear Your
Harness!
© 2020 RETI
C/N: 35727
All Rights Reserved
REV4: 12/21/2020
P/N: 35732
Advertisement
Table of Contents
Related Manuals for Rivers Edge LD201
Summary of Contents for Rivers Edge LD201
- Page 1 Operator's Manual LOCKDOWN WIDE PAT. WWW.ARDISAM.COM/PATENTS Ladder Stand MODEL LD201 Maximum Height 17’1” to shooting rail Maximum Field Rating 300 lbs Tree Diameter Range 12” to 30” Wear Your Harness! PRODUCT MEETS INDUSTRY STANDARDS RECOGNIZED BY Get parts online at P/N: 35732 ©...
-
Page 2: Table Of Contents
INTRODUCTION Rivers Edge® Treestands are engineered with you the hunter in mind. We appreciate your purchase of one of our world class treestands. Follow these few simple instructions and your stand will provide you many years of trouble-free pleasure. Instructions should be kept in a safe place and reviewed at least annually. -
Page 3: Warnings
Operator's Manual LOCKDOWN WIDE Ladder Stand READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE ASSEMBLY STOP MODEL LD201 WARNING MAXIMUM USE HEIGHT - 17’ 1” TO SHOOTING RAIL Never jump or bounce on a treestand to seat it to the tree. -
Page 4: Inspection And Maintenance
Operator's Manual LOCKDOWN WIDE Ladder Stand WARNING INSPECTION AND MAINTENANCE Always lean forward as you climb and attach your harness to the tree before securing the platform to the tree and BEFORE EACH USE PERFORM THE FOLLOWING: stepping onto the platform. •... -
Page 5: Hardware Identification Chart
Operator's Manual LOCKDOWN WIDE Ladder Stand TOOLS REQUIRED 7/16” WRENCHES 4 MM ALLEN # 27477 WRENCH (INCLUDED) HARDWARE LIST Item Part No. Image Description YELLOW PLASTIC # 23572 WASHER 2 MM YELLOW CURVED # 35130 SPACER YELLOW CURVED # 35225 WASHER YELLOW PLASTIC # 36703... - Page 6 Operator's Manual LOCKDOWN WIDE Ladder Stand Item Part No. Image Description KNOB # 28839 M6 X 29 MM KNOB SILENT # 36719 LADDER W/STUD # 29712 SQ PLUG 22 MM RUBBER BUMPER # 48679 STOP # 26813 BOLT M6 X 20 MM # 26959 BOLT M6 X 70 MM Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 M-F 8-5...
- Page 7 Operator's Manual LOCKDOWN WIDE Ladder Stand Item Part No. Image Description BOLT # 48240B 1/4 X 1-1/2 IN BOLT # 48250B 1/4 X 1-3/4 IN BOLT # 48271B 1/4 X 2-1/4 IN BOLT # 48270B 1/4 X 2-1/2 IN BOLT # 48280B 1/4 X 3 IN BOLT...
-
Page 8: Assembly Instructions
Operator's Manual LOCKDOWN WIDE Ladder Stand ASSEMBLY INSTRUCTIONS IMPORTANT ASSEMBLY TIP: All assembly must be done in this order at ground Do not tighten any nut and bolt combinations completely level before uprighting. until all parts are assembled together! Finger tighten plus one turn of a wrench only! This will temporarily hold the Do not remove labels/warnings from product, they are lock- nut on the bolt while helping alignment of all parts! - Page 9 Operator's Manual LOCKDOWN WIDE Ladder Stand Attach left and right armrests (10 and 11) to rear platform section (5) using four 1/4-20 x 3 IN bolts (48) and nuts (51). Attach seat support (12) to left and right armrests (10 and 11) using four 1/4-20 x 3-1/2 IN bolts (49), four 12 MM thick yellow spacers (32) and nuts (51).
- Page 10 Operator's Manual LOCKDOWN WIDE Ladder Stand Attach the backrest tubes (9) to the left and right armrests (10 and 11) using four 1/4-20 x 2-1/2 IN bolts (47) and nuts (51). Slide the backrest (25) onto the backrest tubes (9). Attach the backrest spreader (7) to the top of the backrest tubes (9) using two 1/4-20 x 1-1/2 IN bolts (44) and nuts (51).
- Page 11 Operator's Manual LOCKDOWN WIDE Ladder Stand Thread the M6 x 70 MM bolt (43) all the way into the seat tensioner (14). To assemble the seat (13), slide the seat tensioner (14) through the right seat tube and into the left seat tube so that the head of the M6 x 70 MM bolt (43) bottoms out on the inside of the capped seat tube.
- Page 12 Operator's Manual LOCKDOWN WIDE Ladder Stand Assemble the shooting rail (16 and 26) by inserting the small diameter tube of adjustable shooting rail parts (26) into the shooting rail (16). Align the holes and secure together using two 1/4-20 x 1-1/2 IN bolts (44) and nuts (51). 10.
- Page 13 Operator's Manual LOCKDOWN WIDE Ladder Stand mesh hidden for clarity 11. Attach the footrest (8) to the front platform section (4) using two 1/4-20 x 2-1/2 IN bolts (47), two yellow washers (29), four curved yellow washers (31) and nuts (51). Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 M-F 8-5...
- Page 14 Operator's Manual LOCKDOWN WIDE Ladder Stand mesh hidden for clarity 12. Slide the top ladder section (2) into the pockets on the J-tubes (6) and secure using two 1/4-20 x 1-3/4 IN bolts (45) and nuts (51). Pre-assemble the platform braces (19) with the ladder hand rails (18) by inserting one end of each platform brace (19) into the lower end of each ladder hand rail (18) and aligning the holes.
- Page 15 Operator's Manual LOCKDOWN WIDE Ladder Stand 13. Attach the ladder ratchets (28) to the ladder section with the stabilizer bar mount (21) using two 1/4-20 x 2-1/4 IN bolts (46) and nuts (51). Set aside for now. 14. Ladder sections are assembled on the ground in the following order: bottom ladder section (3), ladder section with stabilizer bar mount (21), middle ladders section (1) and the top ladder...
- Page 16 Operator's Manual LOCKDOWN WIDE Ladder Stand 15. Before uprighting the stand to the tree, you must attach the two long straps (55) to the assembled treestand. Begin by feeding one end of each strap through the three strap guides (23) under the platform and at the top of the ladder on both sides.
-
Page 17: Warnings
Operator's Manual LOCKDOWN WIDE Ladder Stand READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE SETUP AND USE STOP WARNING WARNING Double check assembly steps to be certain you have Always maintain three (3) points of contact when correctly assembled this product. climbing a ladder treestand. -
Page 18: Setup And Use Instructions
Operator's Manual LOCKDOWN WIDE Ladder Stand SET UP AND USE INSTRUCTIONS WATCH THE SET-UP AND USE VIDEO ONLINE AT WWW.HUNTRIVERSEDGE.COM TO ASSIST WITH THE SET-UP OF YOUR TREESTAND WARNING During installation and removal of ladder treestands, Never use a treestand on a dead, leaning, diseased or you must always and properly use the included Full Body loose barked tree, or a utility pole. - Page 19 Operator's Manual LOCKDOWN WIDE Ladder Stand Begin by removing the long straps (55) from the ground level FIGURE 3 ratchets (28) and let them hang down on either side of the tree. SEE FIGURE 3. 10. Hook the large carabiner (57) to one of the long straps (55) that are hanging down near the tree.
- Page 20 Operator's Manual LOCKDOWN WIDE Ladder Stand 11. If the tree has branches between the ground and the top of the FIGURE 5 stand, before hooking the two long straps (55) together behind the tree with the carabiner (57), you must first get both straps on the same side of all of the branches.
- Page 21 Operator's Manual LOCKDOWN WIDE Ladder Stand 12. Hook the two long straps (55) together behind the tree with the FIGURE 7 large carabiner (57). SEE FIGURE 5. Be sure to lock the carabiner with the screw locking mechanism. SEE FIGURES 6 A-C. 13.
- Page 22 Operator's Manual LOCKDOWN WIDE Ladder Stand 14. Once the straps (55) and carabiner (57) are all the way up the back FIGURE 9-A FIGURE 9-B of the tree, unhook the tether rope (56) from the two long straps (55) and set aside. The tether rope can later be used as a haul line to pull your gear up into the stand.
- Page 23 Operator's Manual LOCKDOWN WIDE Ladder Stand INSTALLING THE RATCHET STRAPS (53) FIGURE 12-A FIGURE 12-B 19. Be certain ladder bottom is firmly seated on dry, level ground. With two people securely holding the base of the ladder, use the three point contact climbing method to slowly climb the ladder and carefully keep a constant hand grip on the ladder at all times.
-
Page 24: The Ultimate Shooting Rail Use Instructions
Operator's Manual LOCKDOWN WIDE Ladder Stand THE ULTIMATE SHOOTING RAIL USE INSTRUCTIONS The shooting rail on this stand is unique. It has both up-and-down and FIGURE 14 in-and-out adjustment. It can also be flipped down and tucked away into the platform to get it out of the way for bow hunting. SHOOTING RAIL ADJUSTMENT To adjust the shooting rail up or down, simply loosen the two knobs, slide them up or down in the slots to the desired height,... -
Page 25: Finished Ladder
Operator's Manual LOCKDOWN WIDE Ladder Stand FINISHED LADDER RATCHET STRAPS ASSEMBLED PLATFORM SECTION LONG STRAP CONNECTED WITH CARABINER TOP LADDER SECTION MIDDLE LADDER SECTION STABILIZER BAR CAM STRAP LADDER SECTION WITH STABILIZER MOUNTS TELESCOPING STABILIZER BAR RATCHETS SILENT LADDERLOCK BOTTOM LADDER SECTION Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 M-F 8-5... -
Page 26: Illustrated Parts Breakdown
Operator's Manual LOCKDOWN WIDE Ladder Stand ILLUSTRATED PARTS BREAKDOWN 51 29 mesh hidden for clarity Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 M-F 8-5... - Page 27 Operator's Manual LOCKDOWN WIDE Ladder Stand PARTS LIST ITEM # PART # DESCRIPTION QTY. ITEM # PART # DESCRIPTION QTY. 35446 MIDDLE LADDER SECTION 48042B WING NUT 35448 TOP LADDER SECTION 48057B SCREW WING 35454 BOTTOM LADDER SECTION 28839 M6 X 29 MM KNOB 34934 PLATFORM FRONT 36719...
- Page 28 Ardisam, Inc. Phone: 800-345-6007 1160 Eighth Avenue, PO Box 755 Fax: 715-822-2124 Cumberland, WI 54829 www.huntriversedge.com *All weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Warning labels in some product images may have been removed for photography purposes only.
