HotWire HWGL2 Instructions

Hotwire Thermostat
Technical Information
Configuration Menu
To enter into the setting menu please follow the steps below:
Step 1. Turn the thermostat off by pressing
Step 2. Press you will then see menu 1.(Press and hold
Step 3. Use the increase and decrease arrows to adjust the sensor selection which is Menu 1(Air sensing;Air and Floor, or Floor only)
Step 4. Press to move to the next Menu and once you have all the menu options set, press
Feature
Menu #
This thermostat is a combination model which allows you
to choose 3 different modes.
1 Mode/Sensor Selection A mode = Air Sensing Only(Has built in sensor)
AF mode = Air & Floor sensing (Floor probe must be installed)
F mode = Floor Sensing(Floor probe must be installed)
The number of degrees difference before switching.
The default is 1°C which means the thermostat will switch
the heating on 0.5°C below the set temperature and will turn
2 Switching differential
it off 0.5°C above the set temperature.With a 2°C differential
the heating will switch on 1°C below the set temperature
and will switch off 1°C above the set temperature.
3 Air Temp Calibration This is to recalibrate the air temp if required
4 Floor Temp Calibration This is to recalibrate the floor temperature if required
Temperature Readout This gives you the option to show the Air Temp,
5
(AF mode only) Floor Temp or to show both Air & Floor at intervals
Maximum Floor Temp
6 This is to protect the floor surface
( AF Mode only)
This allows the temperature to be set to show
7 Temperature Format
Deg Celsius or Deg Fahrenheit
8 Frost Protection This is to avoid your room temp going below 5 DegC
This allows you to programme either 5 days at once,
5+2 / 7 Day mode then the 2 days of the weekend separately,
9
or a full 7 days at the same time or 7 days separately.
10 Auto/Manual mode
This allows you to choose Auto / Manual mode
selection
11
Software version This is for review only
Minimum temperature This gives you the option to change the minimum set
12
limit
Maximum temperature This gives you the option to change the maximum set
13
limit
14 Sensor type selection This allows you to match your ther
This allows you to adjust the brightness of the back light
15 Backlit brightness
Reset This allows you to reset your the
16
Direction of installation This allows you to choose to install your thermostat vertically or horizontally
17
for about 5 seconds, you will see menu 12)
to accept and store.
Adjustment
Explanation
(Press up & down buttons to adjust)
A / AF / F
1 Deg C, 2 Deg C....10 Deg C ( 1 Deg C by default)
-1 Deg C = decrease 1 °C , 1 Deg C = increase 1
-1 Deg C = decrease 1 °C , 1 Deg C = increase 1
A = Show Air Temperature
F = Show Floor Temperature
A-F = Show Floor and Air Temperature in 5 sec
intervals
20 Deg C - 40 Deg C (40 Deg C by default)
Deg C / Deg F
On = activated, Off = deactivated
01 = 5 + 2 Day Programming
02 = 7 Day Programming
00 = Auto mode
01 = Manual mode
5 °C~ 20 °C (5 °C by default)
temperature
40 °C~ 90 °C (40 °C by default)
temperature
10 = NTC10K(by default), 100= NTC100K,
mostat to different sensor
3=NTC3K
10%~100% 100 = 100%(by default)
rmostat to factory default Press and hold down button until you see RE on screen
L = Vertical H= horizontal
Hotwire Thermostat
Deg C
Deg C
V1.0
Instructions

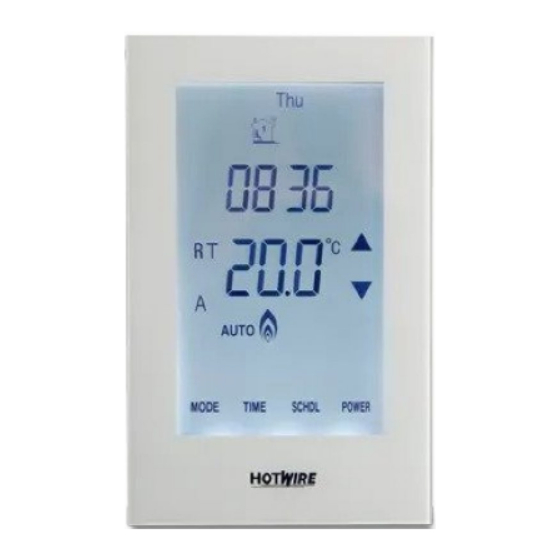

Model Number: HWGL2 Dual Device Thermostat
AUSTRALIA
Hotwire Heating
WWW.HOTWIREHEATING.COM.AU
NEW ZEALAND
The Heating Company
www.theheatingcompany.co.nz/
