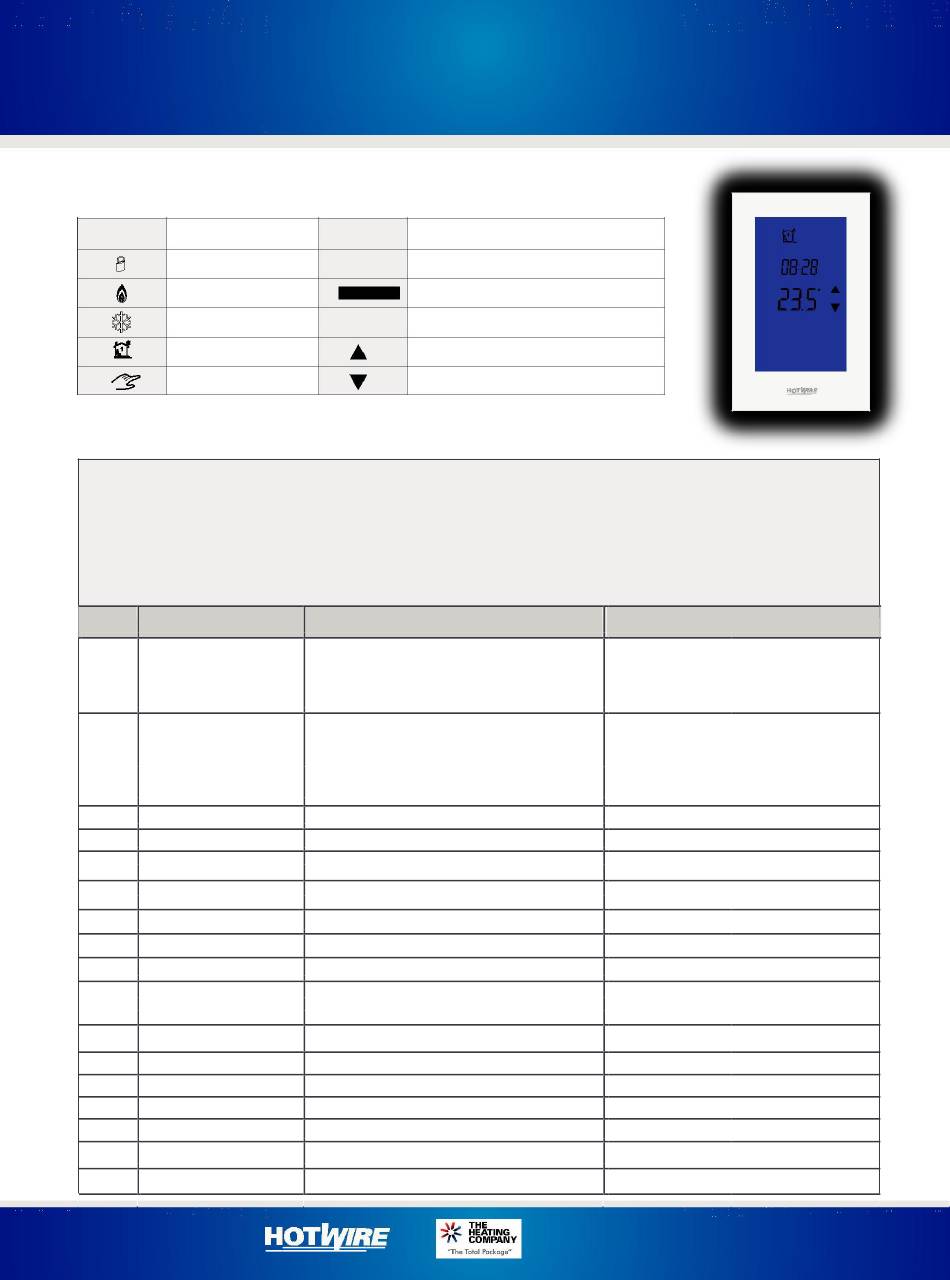

HotWire Wireless Glass TR8100V Instructions

Hotwire Thermostat Instructions
LCD symbols
Symbol
Event
The buttons are locked
Heating is turned on
Frost protection activated
Program number
Manual mode

Configuration Menu

To enter into the setting menu please follow the steps below:
Step 1, Turn the thermostat off by pressing "POWER" ;
Step 2, Press "MENU" , you will then see menu 1. At this step, if you press and hold "MENU", you will access to MENU 13 directly.
Step 3, Use the up and down arrows to adjust the "sensor selection" which is Menu 1(Air sensing, Air and Floor, or Floor only)
Step 4, Press "NEXT" to move to the next Menu and once you have all the menu options set,
Setp 5, Press "DONE" to accept and store.
Menu # Feature
01
Mode/Sensor selection
02
Switching Differential
03
Air Temp Calibration
04
Floor Temp Calibration
Temperature Readout
05
(AF mode only)
Maximum Floor Temp
06
( AF mode only)
07
Temperature Format
08
Clock Format
09
Frost Protection
10
5+2 / 7 Day Mode
11
Auto/Manual mode selection
12
Software version
13
Minimum temperature limit
14
Maximum temperature limit
15
Sensor type selection
16
Not at use
17
Reset
Page1
Model Number: Wireless Glass TR8100V
Symbol
Event
Automatic mode,
AUTO
executes the programmed schedules
OVERRIDE Temporary temperature override
Er
The floor sensor is not being read by the thermostat
Increase
Decrease
Explanation
This thermostat is a combination model which allows you to
choose 3 different modes.
A mode=Air Sensing Only(Has built in sensor)
AF mode=Air & Floor sensing(Floor probe must be installed)
F mode=Floor Sensing(Floor probe must be installed)
The number of degrees difference before switching. The default
is 1°C which means the thermostat will switch the heating on
below the set temperature and will turn it off 0.5°C above the
set temperature. With a 2°C differential the heating will switch
on 1°C below the set temperature and will switch off 1°C above
the set temperature.
This is to recalibrate the air temperature if required.
This is to recalibrate the floor temperature if required.
This gives you the option to show the Air Temperature,
Floor Temperature or to show both Air & Floor at intervals.
This is to protect the floor surface.
This allows the temperature to be set to show °C or °F.
You can select the clock to show in either 12 or 24 hour time
This is to avoid your room temperature going below 5°C
This allows you to program either 5 days at once, then the 2
days of the weekend separately, or a full 7 days at the same
time or 7 days separately
This allows you to choose Auto / Manual mode
This is for review only
This gives you the option to change the minimum set temperature
This gives you the option to change the maximum set temperature
This allows you to match your thermostat to different sensor
Reserved for future use
This allows you to reset your thermostat to factory default
Adjustment
（press up & down buttons to adjust）
A, AF, F
0.5°C
1°C, 2°C....10°C ( 1°C by default)
-1°C = decrease 1°C , 1°C = increase 1°C ...
-1°C = decrease 1°C , 1°C = increase 1°C ...
A= to show air temperature, F=to show floor temperature,
A--F = to show both in 5 second intervals
20 °C~ 40 °C (40 °C by default)
°C or °F
24 (default), 12
on= activated, off= deactivated(default)
01 = 5+2 day programmable
02 = 7 day programmable
00 = Auto mode
01 = Manual mode
V1.0
5 °C~ 20 °C (5 °C by default)
40 °C~ 90 °C (40 °C by default)
10 = NTC10K(by default), 100= NTC100K, 3=NTC3K
Press and hold down button until you see RES on screen
AUSTRALIA NEW ZEALAND
Hotwire Heating The Heating Company
WWW.HOTWIREHEATING.COM.AU www.theheatingcompany.co.nz
