OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FT450 and is the answer not in the manual?

Questions and answers

Related Manuals for FuelTech FT450

Summary of Contents for FuelTech FT450

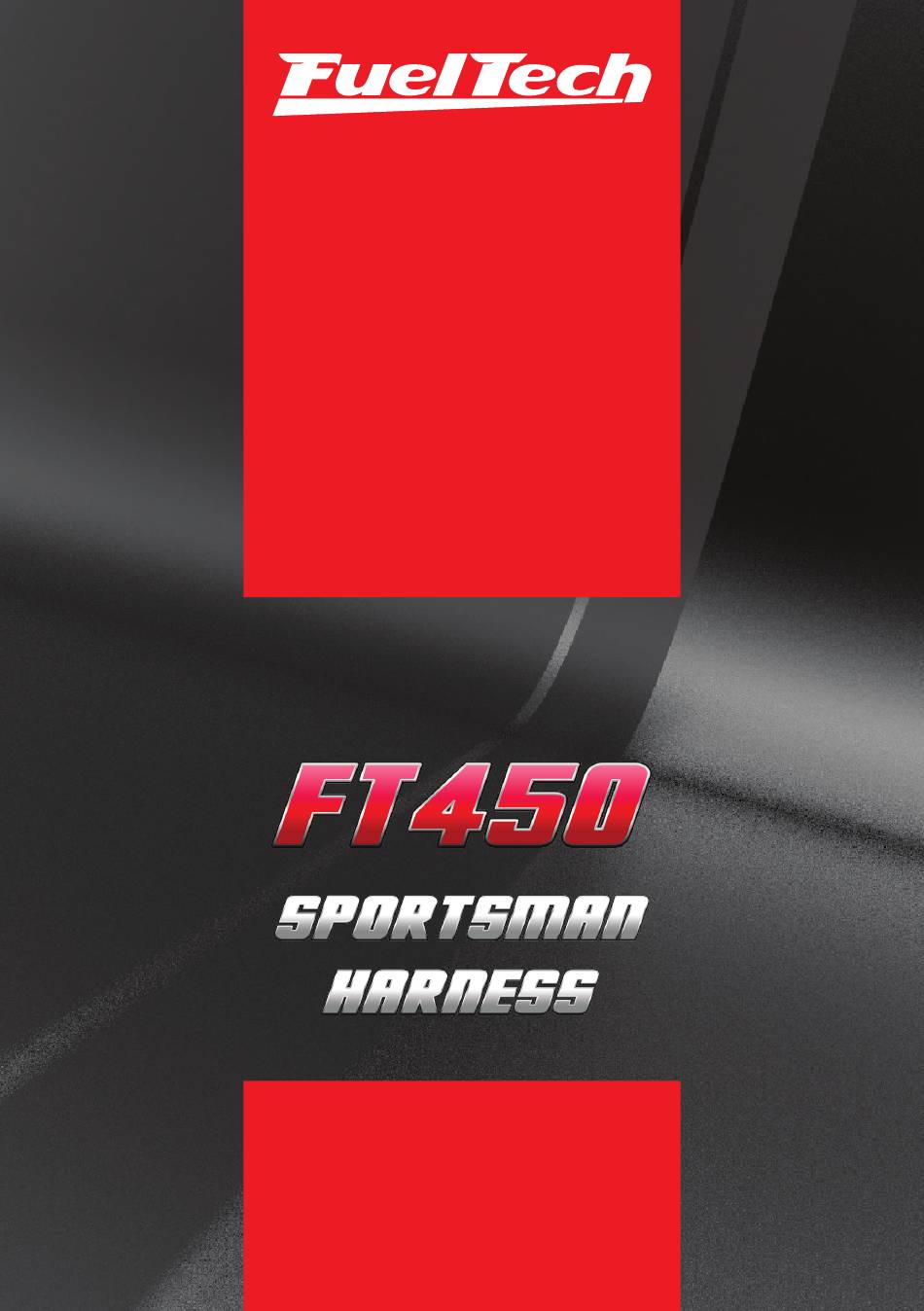

  • Page 1 OWNER’S MANUAL...
  • Page 3 7.1 Fuel and Oil Pressure ..................15 7.2 Engine Coolant Temperature ................15 Meters and Adapter Wires ................... 16 8.1 FuelTech WB-O2 NANO ................16 8.2 Bosch LSU 4.2 Wideband O2 Sensor ............16 Troubleshooting ....................17 10. FuelTech Latest Manuals and Software ..............17...
  • Page 4 FT450/FT550 Sportsman Data logging A Harness 2. Presentation The FuelTech FT450 / FT550 Sportsman Data Logging A Harness is a plug and play solution to easily incorporate data logging into any setup equipped with an FT450 or FT550 ECU. It comes pre-terminated to plug directly into essential data logging input channels (see features below) and has an extra input connector to add up to two more configurable inputs for sensors or buttons.

  • Page 5: Warnings And Warranty Terms

    Limited Warranty All products manufactured by FUELTECH are warranted to be free from defects in material and workmanship for three months the date of original purchase. Warranty claim must be made by original owner with proof of purchase from an authorized reseller.
  • Page 6 FUELTECH. The parties hereto expressly agree that the purchaser’s sole and exclusive remedy against FUELTECH shall be for the repair or replacement of the defective product as provided in this limited warranty. This exclusive remedy shall not be deemed to have failed of its essential purpose so long as FUELTECH is willing and able to repair or replace defective goods.
  • Page 7 4. Overview The Fueltech FT450 SPORTSMAN universal harness is a plug and play wiring solution to be used with a FuelTech FT450 ECU. It comes pre-terminated to plug directly into essential data logging input channels, and has an extra input connector to add up to two more configurable inputs for sensors or buttons.
  • Page 8 FT450/FT550 Sportsman Data logging A Harness Engine 5 - Oil Pressure Connector 6 - Fuel Pressure Connector 1 - CPC Connector 7 - Engine Temperature Connector 2 - O2 Sensor R 8 - Transmission Temperature Connector 3 - O2 Sensor L...
  • Page 9 FT450/FT550 Sportsman Data logging A Harness 5. Diagrams 5.1 FT450/FT550 A Connector FT450 Color Connector Function CPC Pin Blue #1 Blue #2 Blue #3 Extra Output A Spare output connector Blue #4 Blue #5 Blue #6 Black/White (-) BATT ground...

  • Page 10: Harness Components

    The Main Relay Oil pressure sensor: This input can be powers the ECU, Wideband NANO O2, used to read oil pressure using a FuelTech Peak and Hold drivers, sensors and extra PS sensor or SSI P51 Packard sensor.
  • Page 11 FT450/FT550 Sportsman Data logging A Harness 5 . 3 S m a r t C o i l h a r n e s s components (Sold Separately) This extension allows the use of 8 individual Smart COP coils(w/ integrated igniter) on the ignition system, it has 8 metri-pack 150.2...
  • Page 12 40A capacity, integrated 40A fuse and White #4 Extra Input an ON status LED. 12V for sensor There is a main relay for the FuelTech ECU, Green/Red 5V for sensor O2 conditioner and sensors. There is also a Outputs Relay, that supplies power to the Extra Outputs A: The Extra Outputs A “Outputs A”...
  • Page 13 FT450/FT550 Sportsman Data logging A Harness 6.6 WB-O2 NANO Connector Pin A: signal output Pin B: battery’s negative The WB-O2 NANO has a 12 way connector with 3 wire groups. One has the connector for the O2 sensor (Part number 3022000965), the second is for CAN communication and the third is responsible for the power and analog output.
  • Page 14 FT450/FT550 Sportsman Data logging A Harness 6.7 Ignition Expansion When using this harness combined with FuelTech Smart Coil Harness (sold separately - 2002100108), there will be 8 Smart Coil (5001100012) plugs. The Smart Coil Harness’ Relay is powered by a external switch that must be supplied trough the “J”...

  • Page 15: Aux. Power Connector

    FT450/FT550 Sportsman Data logging A Harness FuelTech part numbers: IMPORTANT 5005100020 - 0-150 psi sensor Unused wires and wire shield 5005100021 - 0-300 psi sensor must never be grounded! Leave 5005100217 - 0-500 psi sensor them insulated. 5005100022 - 0-1500 psi sensor 6.11 Aux.

  • Page 16: Bosch Lsu 4.2 Wideband O2 Sensor

    FT450/FT550 Sportsman Data logging A Harness 8. Meters and Adapter Wires 8.1 FuelTech WB-O2 NANO The WB-O2 NANO has a 12-way connector with 3 wire groups. One of them has the connector for the O2 sensor, the second makes the CAN communication.

  • Page 17: Troubleshooting

    Ensure your software version is compatible with your FT450 firmware version ECU won’t communicate to PC Check if read and write buttons get colored when FT450 is connected 10. FuelTech Latest Manuals and Software You can access all updated manuals and software at the FuelTech website: www.fueltech.net/manuals www.fueltech.net/software...
  • Page 20 455 Wilbanks Dr. Ball Ground, GA, 30107, USA Phone: +1 678-493-3835 Toll Free: +1 855-595-3835 E-mail: info@FuelTech.net www.FuelTech.net FuelTechUSA...
