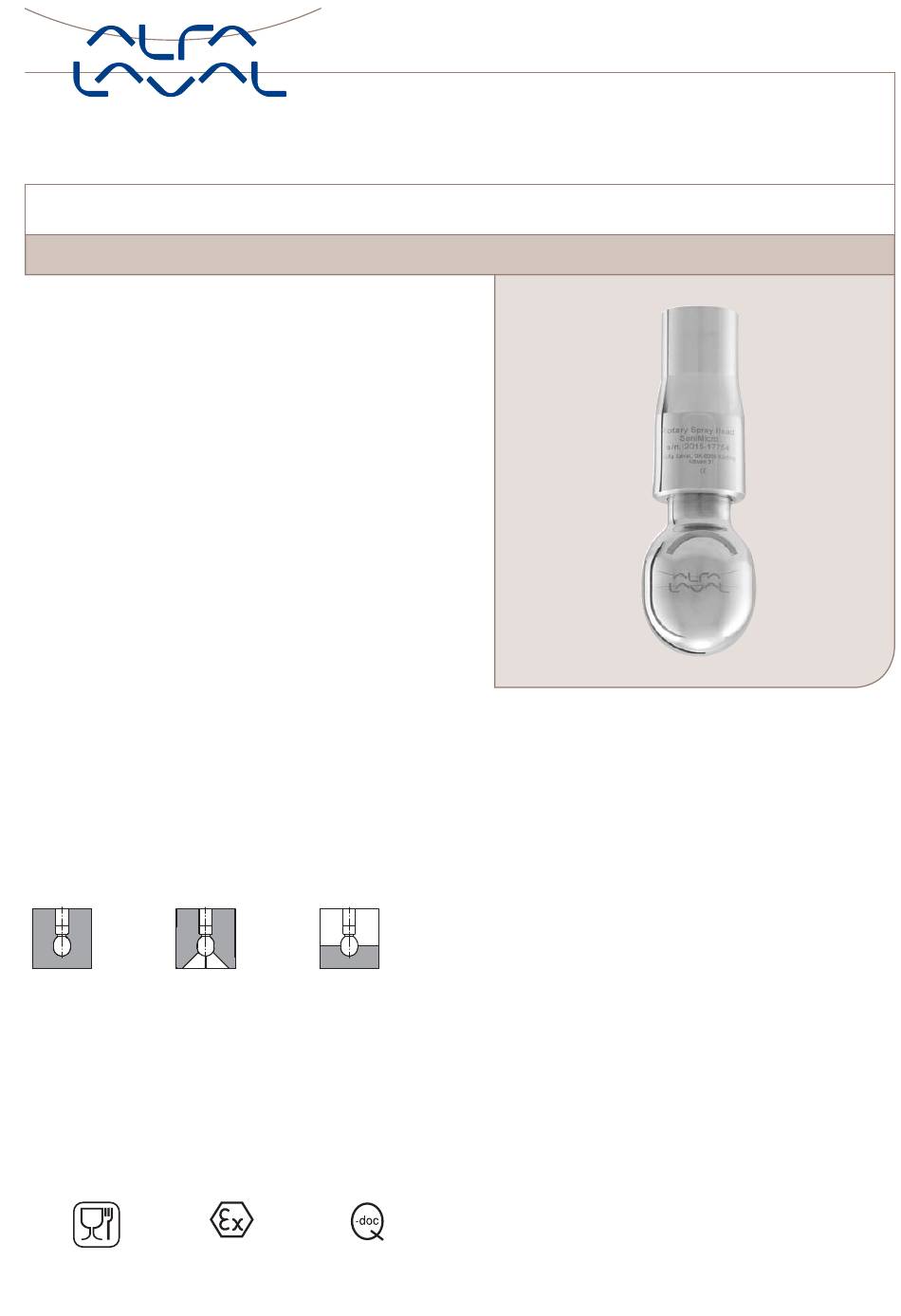

Alfa Laval SaniMicro
Low Flow Saves on Water and Chemicals
Application
The Toftejorg SaniMicro is a rotary spray head that uses cleaning
media to provide coverage and impact. The device represents an
effective alternative to traditional static spray balls because it uses low
volumes of cleaning fluid at low pressure. The double ball bearing in
the Toftejorg SaniMicro's rotating head makes the device suitable for all
industrial cleaning applications, including tanks, reactors, vessels and
other containers ranging from 0.05 to 1 m
and cleaning task.
Working principle
The flow of the cleaning media causes the head of the Toftejorg
SaniMicro to rotate, and the fan-shaped jets lay out a swirling pattern
throughout the tank or reactor. This generates the impact needed for
the efficient removal of residual product; the cascading flow covers
all internal surfaces of the vessel.
.
TECHNICAL DATA
Lubricant: . . . . . . . . . . . . . . . . . . . Self-lubricating with the
Wetting radius . . . . . . . . . . . . . . . . Max. 2.5 m
Impact cleaning radius: . . . . . . . . . . Max. effective 0.6 m
Pressure
Working pressure: . . . . . . . . . . . . . 1-3 bar
Recommended pressure: . . . . . . . . . 2 bar
Spray Pattern
360° 270° up
Standard Design
As standard documentation, the Toftejorg SaniMicro can be supplied
with a "Declaration of Conformity" for material specifications or
3.1 certification for metallic parts. The device is available in an
electropolished version as well as in hastelloy C22 (balls in hastelloy
C276) with 3.1 certification for metallic parts.
Certificates
2.2 material certificate, Q-doc, Q-doc incl. FAT & SAT and ATEX.
.
3
, depending on dimensions
cleaning fluid
180° down
PHYSICAL DATA
Materials
AISI 316L (UNS S31603). PTFE*
* FDA compliance 21CFR§177.
Clip parts . . . . . . . . . . . . . . . . . . . 316
Min. tank opening: . . . . . . . . . . . . . 25 mm diameter (DN25)
Standard Surface finish:
exterior: . . . . . . . . . . . . . . . . . . . . Ra 0.5µm
. . . . . . . . . . . . . . . . . . . . Ra 0.8µm
internal:
Temperature
Max. working temperature: . . . . . . . . 95°C
Max. ambient temperature: . . . . . . . . 140°C
Weight: . . . . . . . . . . . . . . . . . . . . 75 g
Connections
- Thread: 3/8" Rp (BSP), or 3/8" NPT
- Weld-on: 3/4" ISO 2037, or DN15 DIN11850-R1 or R2, or 3/4"
BPE US
- Clip-on: 3/4" ISO 2037, or DN15 DIN11850-R1 or R2, or 3/4" BPE
US
Caution
Avoid hydraulic shock, hard and abrasive particles in the cleaning
liquid, as this can cause increased wear and/or damage of internal
mechanisms. In general, a filter in the supply line is recommended. Do
not use for gas evacuation or air dispersion. For steaming we refer
to the manual.
