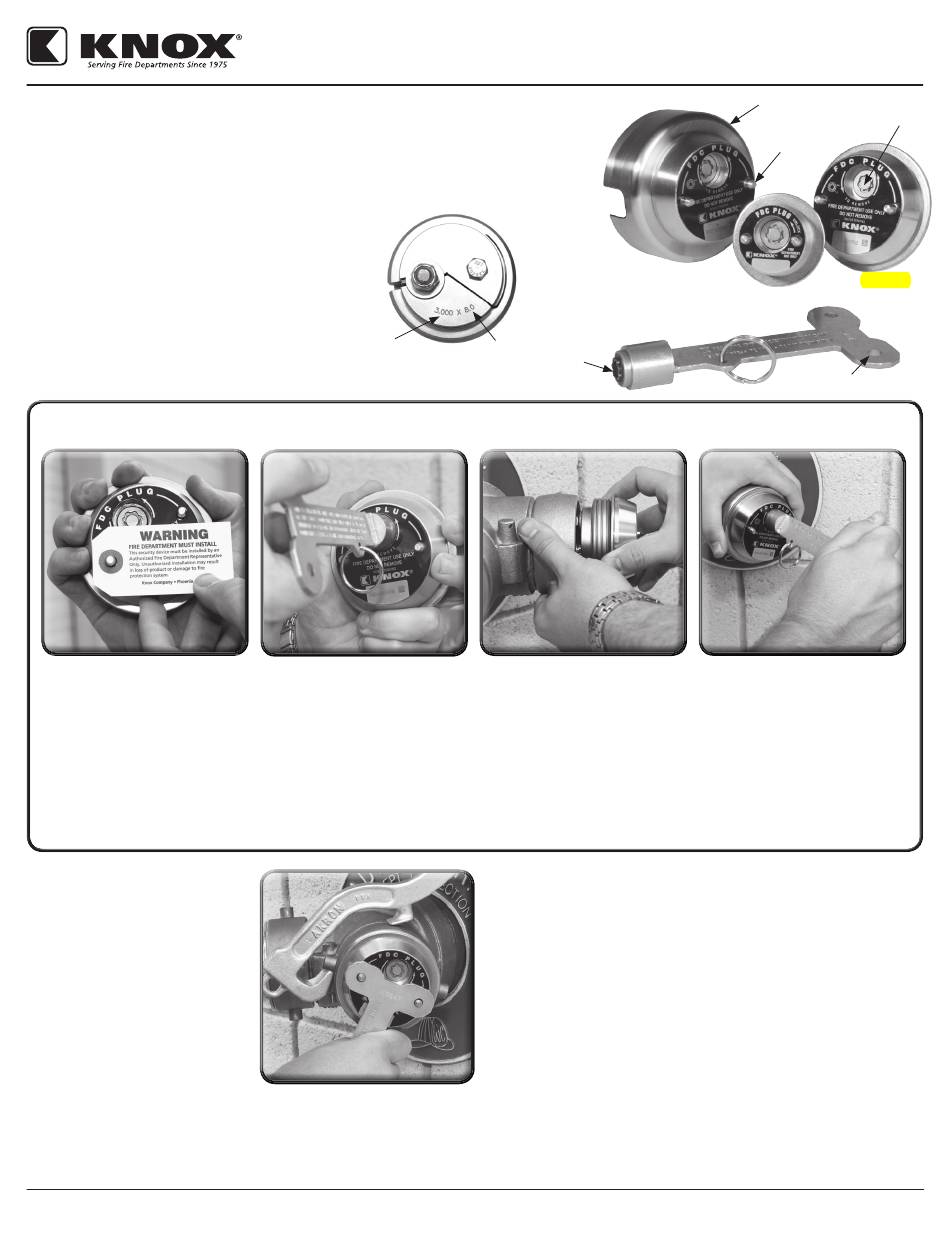

Knox FDC Plug Operating Instructions

The Knox FDC Plug has been designed for ease-of-use when installing or
®
removing the plug from a connection. Fire personnel properly equipped with
a Knox Keywrench can quickly remove the plug. In the event of debris or ice
buildup on the locking bolt head, a small flathead screwdriver or similar tool
will quickly remove any foreign matter.
Plug Identification
Each Knox FDC Plug is etched with a unique serial number
on the plug face. The plug thread size and diameter is
etched on the back of the plug. Verify that the connection
coupling thread is the same size before attempting
plug installation.
Installation
1
Remove warning tag. Remove
all debris from connection
coupling threads and from
inside the pipe. Flush system
if necessary.
Notes: • For Swivel-Guard model, line up lugs on swivel with cut outs in swivel guard ring, then spin swivel to thread FDC plug into the connection.
• FDC Plug should easily thread into connection coupling (loose fit). If the FDC Plug thread binds, remove and check threads for damage or
incorrect size.
Removal
1
Inspect locking bolt head and
remove any debris, if necessary.
2
Use the Knox Keywrench to turn
the locking bolt head counter
clockwise until fully unlocked
(Keywrench will stop).
3
Use the pins to unscrew the
plug from the connection.
4
If the locking bolt is completely loosened and the plug will still not
release, use the spanner end of the Keywrench to engage the pins
on the face of the FDC plug and unscrew counter clockwise as
shown above.
