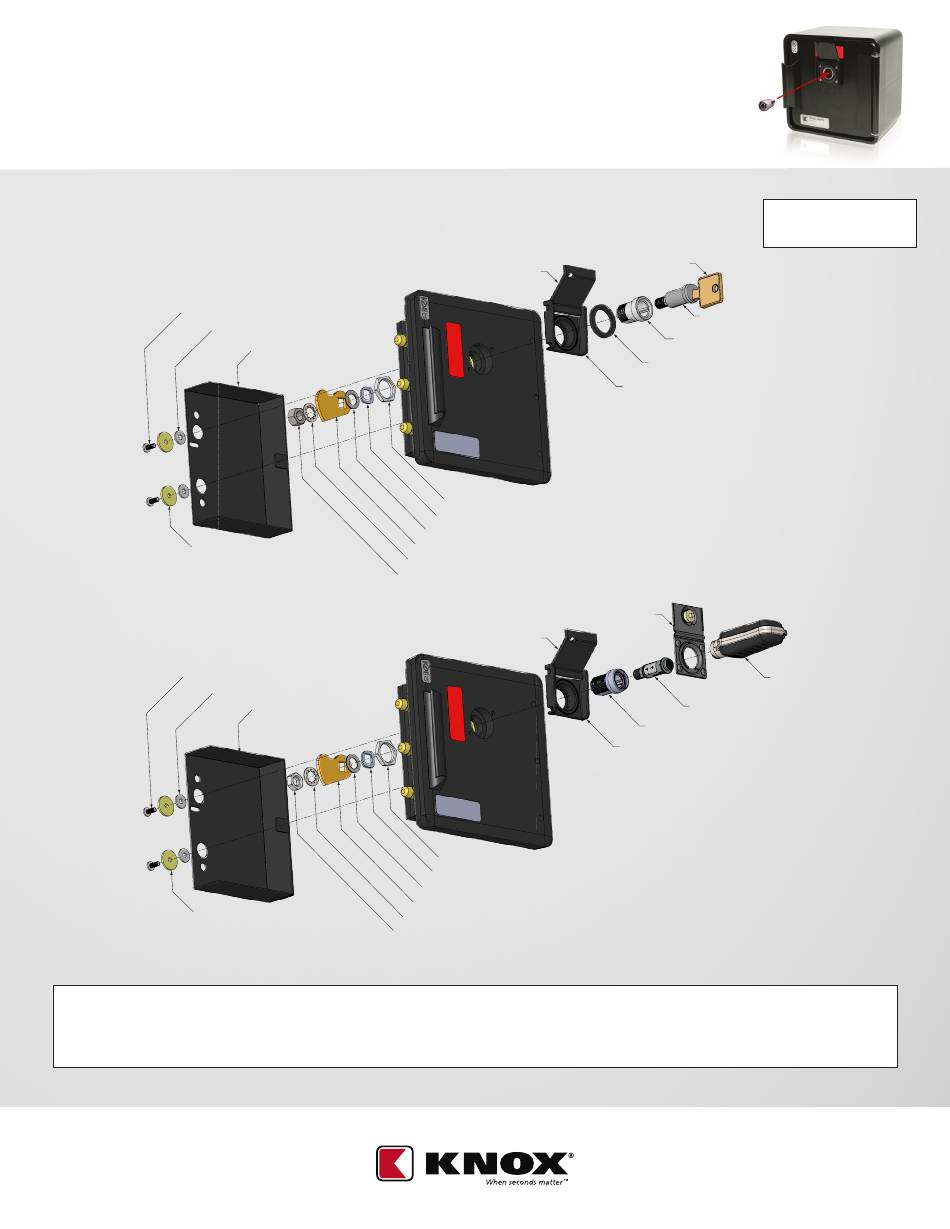

KNOX ELOCK CORE RETROFIT
KLS- 4400 & KLS-4500 INSTALLATION GUIDE
Mounting Screw
Aluminum Space Washer (Cover)
Special Release Non-Metallic (Fiber) Washer
Note: Replace if over-tightened or cracked
DO NOT SUBSTITUTE
Mounting Screw
Aluminum Space Washer (Cover)
Special Release Non-Metallic (Fiber) Washer
Note: Replace if over-tightened or cracked
DO NOT SUBSTITUTE
CAUTION:
Activate Knox eKey and Knox eLock Core prior to installation!
of the Knox eLock Core. See the KnoxConnect
Lock Mechanism Cover
Adjustment Shim Washer
Cam
Lock Washer
Lock Cam Nut
Lock Mechanism Cover
Adjustment Shim Washer
Cam
Lock Washer
Lock Cam Nut
Management System Administrator User Guide for further instructions.
™
Mechanical Key
Dust Cover
Lock Shell Nut
90° Stop Washer
(See Figure 5)
Knox Rain Gaurd
Dust Cover
Lock Shell Nut
90° Stop Washer
(See Figure 5)
The Knox eLock Core and the Knox eKey must be activated before installation
Installation Time:
Less than 15 minutes
Mechanical Lock Core
Mechanical Lock Shell
Dust Cover Magnet
Dust Cover Bracket
Figure 1
Knox eKey
Knox eLock Core
Knox eLock Shell
Dust Cover Bracket
Figure 2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Knox KLS-4400
Summary of Contents for Knox KLS-4400
- Page 1 CAUTION: Activate Knox eKey and Knox eLock Core prior to installation! The Knox eLock Core and the Knox eKey must be activated before installation of the Knox eLock Core. See the KnoxConnect Management System Administrator User Guide for further instructions.
- Page 2 DO NOT SUBSTITUTE NOTE: IMPORTANT: For illustration of part Return Lock Shell with the Lock Core and Mechanical Key to Knox disassembly, see first page. Company. Contact Technical Support for return instructions. 1601 W. DEER VALLEY RD. PHOENIX, AZ 85027 | 800-552-5669 | 623-687-2290 | TECHSUPPORT@KNOXBOX.COM |...
- Page 3 LEFT. Activate Knox eKey and Knox eLock Core prior to installation! IMPORTANT: The Knox eLock Core and the Knox eKey must be activated before installation of the Knox eLock Core. See the KnoxConnect ™ Stop Washer orientation sets the direction that the cylinder Management System Administrator User Guide for further instructions.
- Page 4 Lastly, remove the adhesive backing from the Knox "K" reflective label, and place front and center of the Dust Cover. This concludes the Knox eLock Core Retrofit Instructions. 1601 W. DEER VALLEY RD. PHOENIX, AZ 85027 | 800-552-5669 | 623-687-2290 | TECHSUPPORT@KNOXBOX.COM | KNOXBOX.COM...
