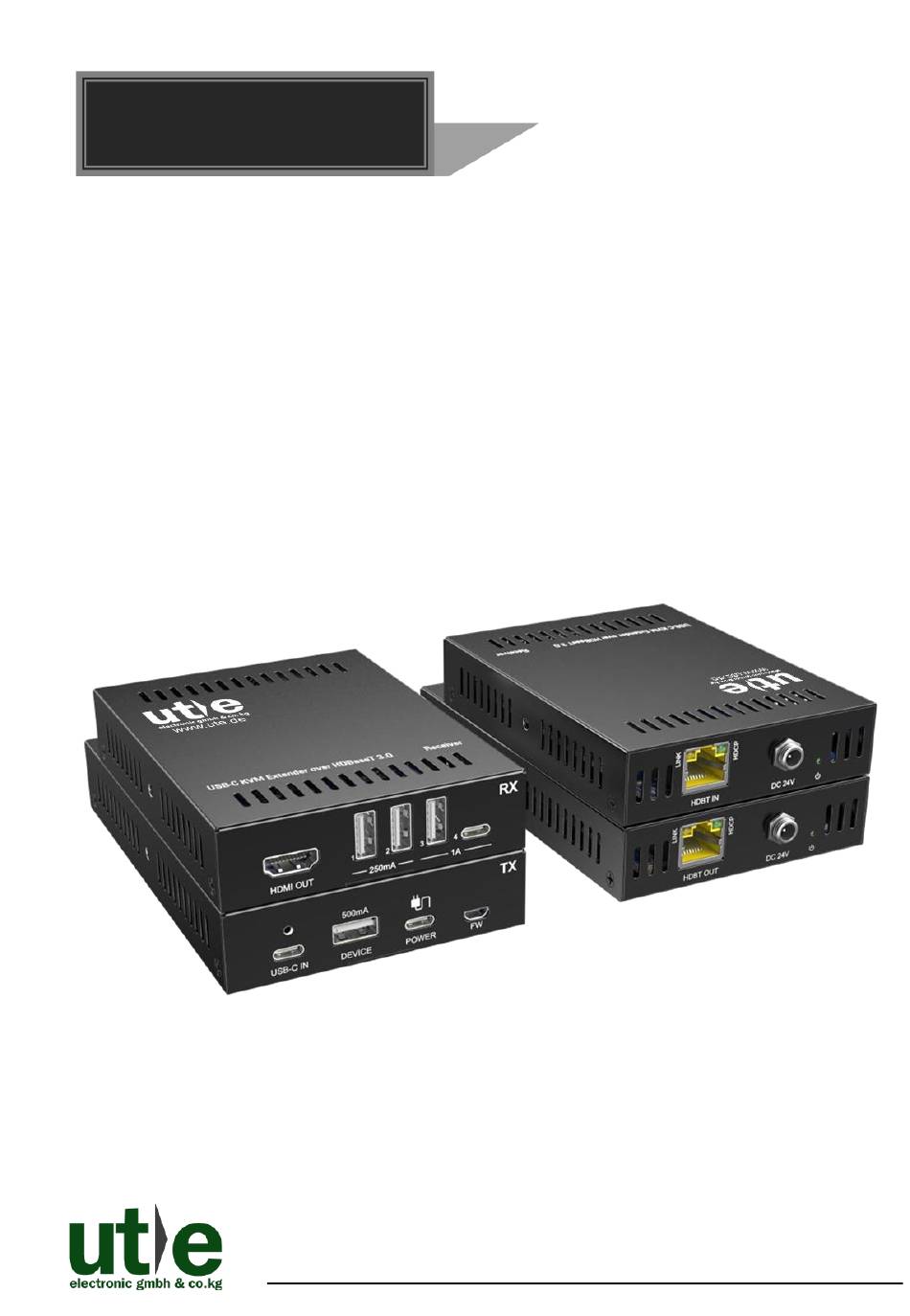

- Page 1 User Manual UHKVM-70XC USB-C KVM Extender over HDBaseT3.0 All Rights Reserved Version: UHHKVM_2023V1.1 www.ute.de...
- Page 2 UHKVM-70XC: 4K60 18G USB-C KVM Extender over HDBaseT3.0 U.T.E. electronic GmbH & Co. KG www.ute.de...
- Page 3 UHKVM-70XC: 4K60 18G USB-C KVM Extender over HDBaseT3.0 Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact your local dealer for maintenance assistance.
- Page 4 UHKVM-70XC: 4K60 18G USB-C KVM Extender over HDBaseT3.0 SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ⚫...
-
Page 5: Table Of Contents
UHKVM-70XC: 4K60 18G USB-C KVM Extender over HDBaseT3.0 Table of Contents 1. Product Introduction ....................1 1.1 Introduction to 4K60 18G USB-C KVM Extender Set UHKVM-70XC ....1 1.2 Features ......................1 1.3 Package List ...................... 2 2. Panel Description ......................3 2.1 USB-C KVM Transmitter (UHKVM-70XCT) ............ -
Page 6: Product Introduction
1.1 Introduction to 4K60 18G USB-C KVM Extender Set UHKVM-70XC The UHKVM-70XC is an USB-C KVM Extender Set that allows one USB channel to be transmitted over distances of up to 40m at 4K@60Hz and 70m at 4K@30Hz via CAT6A cable. -
Page 7: Package List
UHKVM-70XC: 4K60 18G USB-C KVM Extender over HDBaseT3.0 1.3 Package List 1x UHKVM-70XCT: 4K60 18G USB-C over HDBaseT 3.0 KVM Transmitter ⚫ 1x UHKVM-70XCR: 4K60 18G USB-C over HDBaseT 3.0 KVM Receiver ⚫ 4x Mounting Ears with 4 Mounting Screws ⚫... -
Page 8: Panel Description
UHKVM-70XC: 4K60 18G USB-C KVM Extender over HDBaseT3.0 2. Panel Description 2.1 USB-C KVM Transmitter (UHKVM-70XCT) Figure 2- 1 UHKVM-70XCT Front and Rear Panel ① USB-C IN: Connects to the Macbook or other device with SlimPort output. ② DEVICE: USB 2.0 Ports for connecting device. -
Page 9: Usb-C Kvm Receiver (Uhkvm-70Xcr)
UHKVM-70XC: 4K60 18G USB-C KVM Extender over HDBaseT3.0 2.2 USB-C KVM Receiver (UHKVM-70XCR) Figure 2- 2 UHKVM-70XCR Front and Rear Panel ① HDMI OUT: Connects to the HDMI display. ② DEVICE (1~4): 4 USB Ports for connecting KVM device: (2) Type-A USB 2.0 5V250mA Power Supply (1) Type-A USB 2.0 5V1A Power Supply... -
Page 10: System Connection
⚫ 3.2 System Diagram UHKVM-70XC The following diagrams illustrate typical input and output connection/ application that can be utilized with 4K60 18G USB-C KVM Extender UHKVM-70XC: Figure 3- 1 Connection and System Diagram U.T.E. electronic GmbH & Co. KG www.ute.de... - Page 11 UHKVM-70XC: 4K60 18G USB-C KVM Extender over HDBaseT3.0 Figure 3- 2 Application Diagram U.T.E. electronic GmbH & Co. KG www.ute.de...
-
Page 12: Specification
UHKVM-70XC: 4K60 18G USB-C KVM Extender over HDBaseT3.0 4. Specification UHKVM-70XCT UHKVM-70XCR Video Input Signal (1) USB-C IN (1) HDBaseT IN Input Connector (1) Type-C USB (1) RJ45 Input Resolution Up to 4Kx2K@60Hz 4:4:4 Up to 4Kx2K@60Hz 4:4:4 Output Signal... - Page 13 UHKVM-70XC: 4K60 18G USB-C KVM Extender over HDBaseT3.0 General Supported bi-directional 24V PoC 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 10m, HDMI Cable Length 1080P ≤ 15m Transmission Mode HDBaseT 3.0 4K@60 4:4:4≤ 40m; Transmission Distance 4K@30 4:4:4 ≤ 70m -5°C ~ +55°...
-
Page 14: Panel Drawing
UHKVM-70XC: 4K60 18G USB-C KVM Extender over HDBaseT3.0 5. Panel Drawing 5.1 USB-C KVM Transmitter (UHKVM-70XCT) Figure 5-1 UHKVM-70XCT (Transmitter) Note: Pictures shown in this manual are only for reference. U.T.E. electronic GmbH & Co. KG www.ute.de... -
Page 15: Usb-C Kvm Receiver (Uhkvm-70Xcr)
UHKVM-70XC: 4K60 18G USB-C KVM Extender over HDBaseT3.0 5.2 USB-C KVM Receiver (UHKVM-70XCR) Figure 5-2 UHKVM-70XCT (Receiver) Note: Pictures shown in this manual are only for reference. U.T.E. electronic GmbH & Co. KG www.ute.de... -
Page 16: After Sales/ Customer Service
UHKVM-70XC: 4K60 18G USB-C KVM Extender over HDBaseT3.0 6. After Sales/ Customer Service Any transport costs are borne by the users during the warranty. The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. - Page 17 UHKVM-70XC: 4K60 18G USB-C KVM Extender over HDBaseT3.0 5) Technical Support: Email to our after-sales department or make a call, please inform us the following information about your cases. ⚫ Product version and name. ⚫ Detailed failure situations. ⚫ The formation of the cases.
- Page 18 UHKVM-70XC: 4K60 18G USB-C KVM Extender over HDBaseT3.0 U.T.E. electronic GmbH & Co. KG www.ute.de...
- Page 19 UHKVM-70XC: 4K60 18G USB-C KVM Extender over HDBaseT3.0 U.T.E. electronic GmbH & Co. KG www.ute.de...
- Page 20 U.T.E. electronic GmbH & Co. KG Tel: +49-2302-28283-0 Fax: +49-2302-28283-10 Email: info@ute.de Website: www.ute.de...
