MAG6701
100V Network Terminal

Description

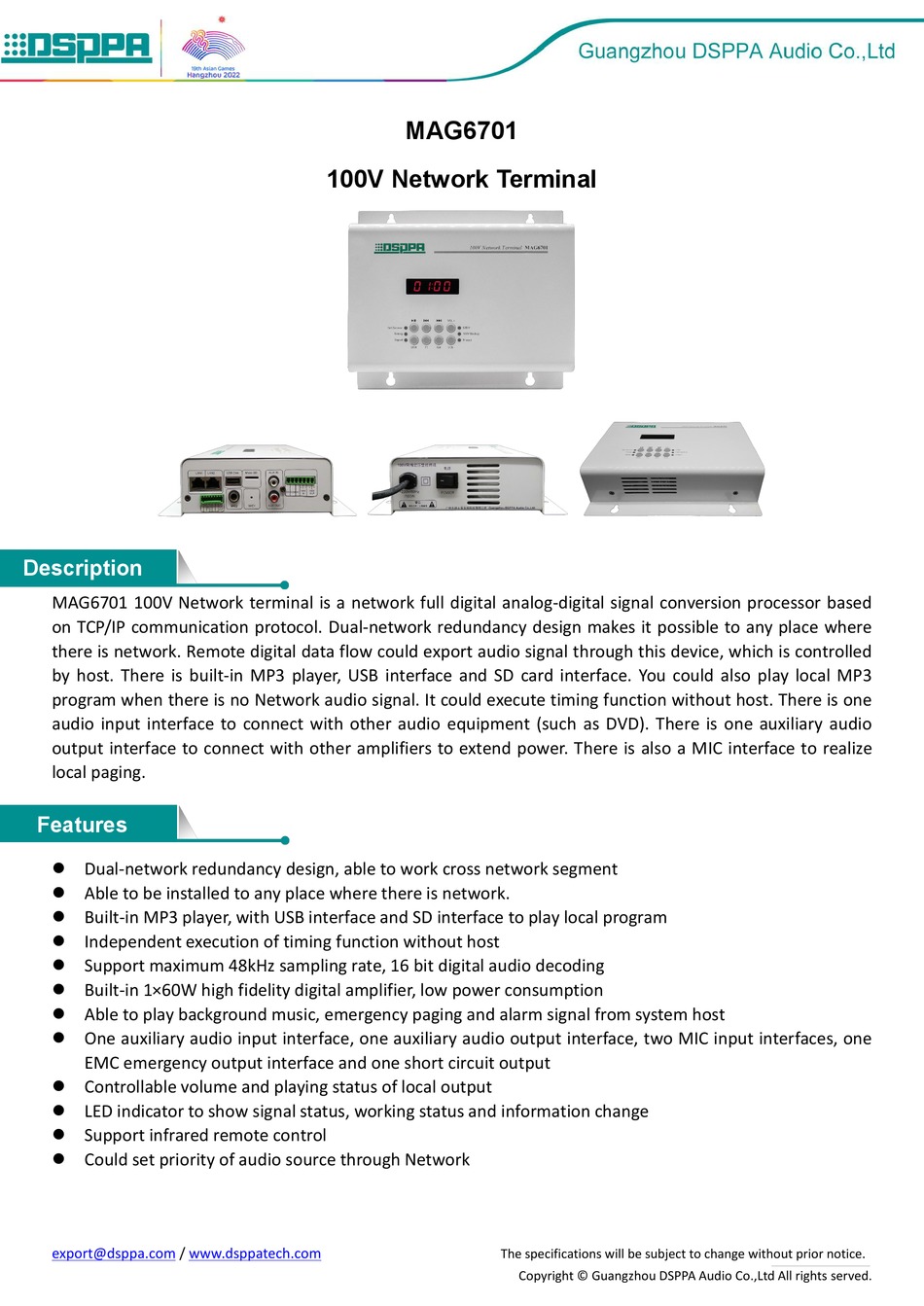

MAG6701 100V Network terminal is a network full digital analog-digital signal conversion processor based
on TCP/IP communication protocol. Dual-network redundancy design makes it possible to any place where
there is network. Remote digital data flow could export audio signal through this device, which is controlled
by host. There is built-in MP3 player, USB interface and SD card interface. You could also play local MP3
program when there is no Network audio signal. It could execute timing function without host. There is one
audio input interface to connect with other audio equipment (such as DVD). There is one auxiliary audio
output interface to connect with other amplifiers to extend power. There is also a MIC interface to realize
local paging.

Features

 Dual-network redundancy design, able to work cross network segment
 Able to be installed to any place where there is network.
 Built-in MP3 player, with USB interface and SD interface to play local program
 Independent execution of timing function without host
 Support maximum 48kHz sampling rate, 16 bit digital audio decoding
 Built-in 1×60W high fidelity digital amplifier, low power consumption
 Able to play background music, emergency paging and alarm signal from system host
 One auxiliary audio input interface, one auxiliary audio output interface, two MIC input interfaces, one
EMC emergency output interface and one short circuit output
 Controllable volume and playing status of local output
 LED indicator to show signal status, working status and information change
 Support infrared remote control
 Could set priority of audio source through Network
