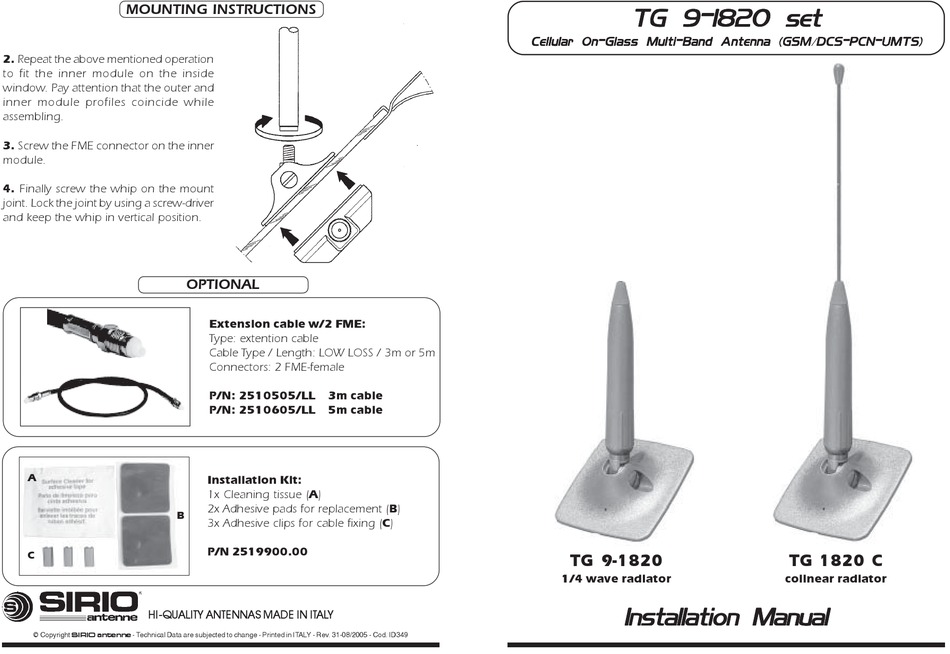

MOUNTING INSTRUCTIONS
2. Repeat the above mentioned operation
to fit the inner module on the inside
window. Pay attention that the outer and
inner module profiles coincide while
assembling.
3. Screw the FME connector on the inner
module.
4. Finally screw the whip on the mount
joint. Lock the joint by using a screw-driver
and keep the whip in vertical position.
A
B
C
HI-QUALITY ANTENNAS MADE IN ITALY
B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 31-08/2005 - Cod. ID349
OPTIONAL
Extension cable w/2 FME:
Type: extention cable
Cable Type / Length: LOW LOSS / 3m or 5m
Connectors: 2 FME-female
P/N: 2510505/LL 3m cable
P/N: 2510605/LL 5m cable
Installation Kit:
1x Cleaning tissue (A)
2x Adhesive pads for replacement (B)
3x Adhesive clips for cable fixing (C)
P/N 2519900.00
TG 9-1820 set TG 9-1820 set
TG 9-1820 set TG 9-1820 set TG 9-1820 set
Cellular On-Glass Multi-Band Antenna (GSM/DCS-PCN-UMTS) Cellular On-Glass Multi-Band Antenna (GSM Cellular On-Glass Multi-Band Antenna (GSM Cellular On-Glass Multi-Band Antenna (GSM Cellular On-Glass Multi-Band Antenna (GSM
TG 9-1820
1/4 wave radiator
Installation Manual Installation Manual
Installation Manual Installation Manual Installation Manual
DCS-PCN-UMTS) DCS-PCN-UMTS) DCS-PCN-UMTS) DCS-PCN-UMTS)
TG 1820 C
colinear radiator
