Charger Knock-Outs; Loading Products; Combining Doors For Multiple Products - Seaga Intelligent Inventory Control IQ24 Service And Parts Manual

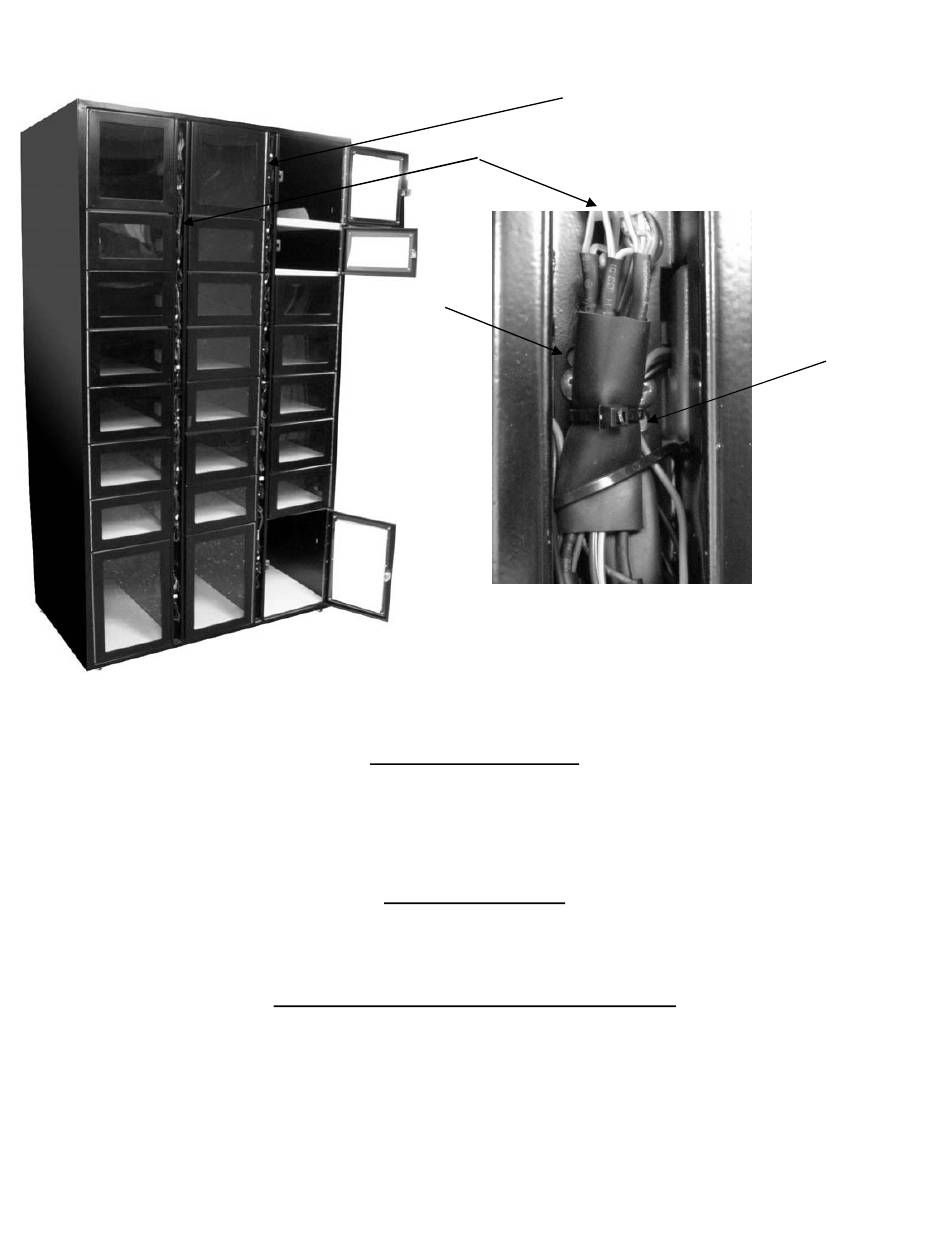

Locate the Solenoid Triggers and insert the Solenoid Tool until the compartment door opens (Fig. 5):
Fig. 5 – Open Service Doors
On the back of the machine, located behind each compartment, there are knock-outs in case of items that need to be
plugged in to AC power supplies (Fig. 2). These knock-outs are best removed by opening the compartment door using the
software and pushing out the knock-out from inside the compartment.
See the Standard Configuration outline for the maximum size of each compartment. Do not overfill compartment to allow
full closure of door.
In case of multiple item dispensing, two locker doors may be combined. The compartments must be located on top of each
other. To combine compartments, open each compartment door and remove window fasteners from the bottom of the top
compartment door and the top of the bottom compartment door. Secure the door combination bracket and reinstall the
window fasteners.
Revision 1 03.2017
Solenoid
Trigger

CHARGER KNOCK-OUTS

LOADING PRODUCTS

COMBINING DOORS FOR MULTIPLE PRODUCTS

Right Service Door Shown Open
Left Service Door Shown Open
