Standard Configuration - Seaga Intelligent Inventory Control IQ24 Service And Parts Manual

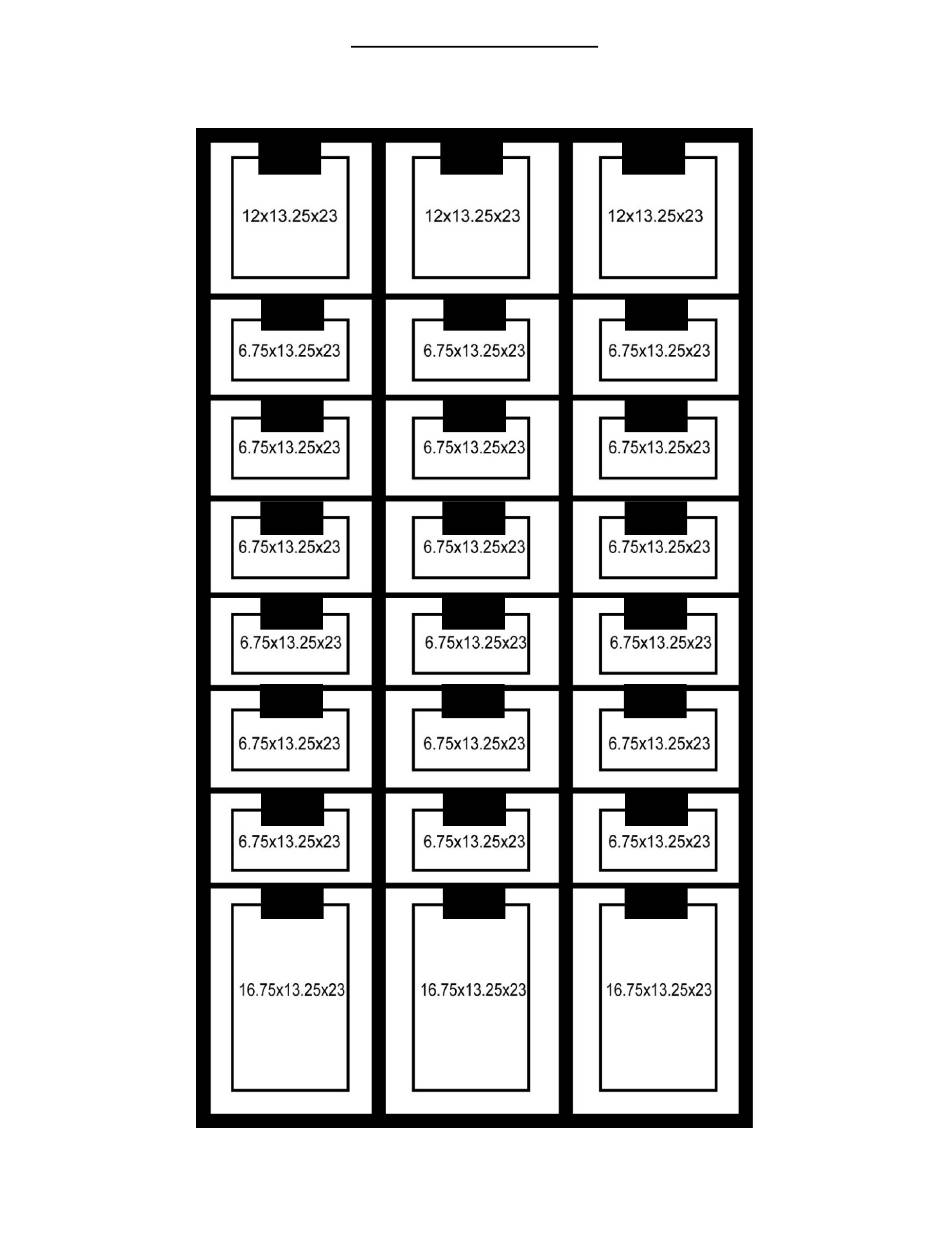

The maximum size for each compartment is shown below. Note: For proper operation, do not overload the compartment in
a way that the door cannot be secured.
Note: Selection numbers are for Stand Alone configuration; numbers for Auxiliary lockers may begin with 2, 3, etc. On the
IQ23 model, Door 122 is used for the keypad and display and cannot be filled with product.
Revision 1 03.2017

STANDARD CONFIGURATION

110
120
130
140
150
160
170
180
111
121
131
141
151
161
171
181
5
112
122
132
142
152
162
172
182
