Cabinet Assembly - Seaga Intelligent Inventory Control IQ24 Service And Parts Manual

ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Revision 1 03.2017

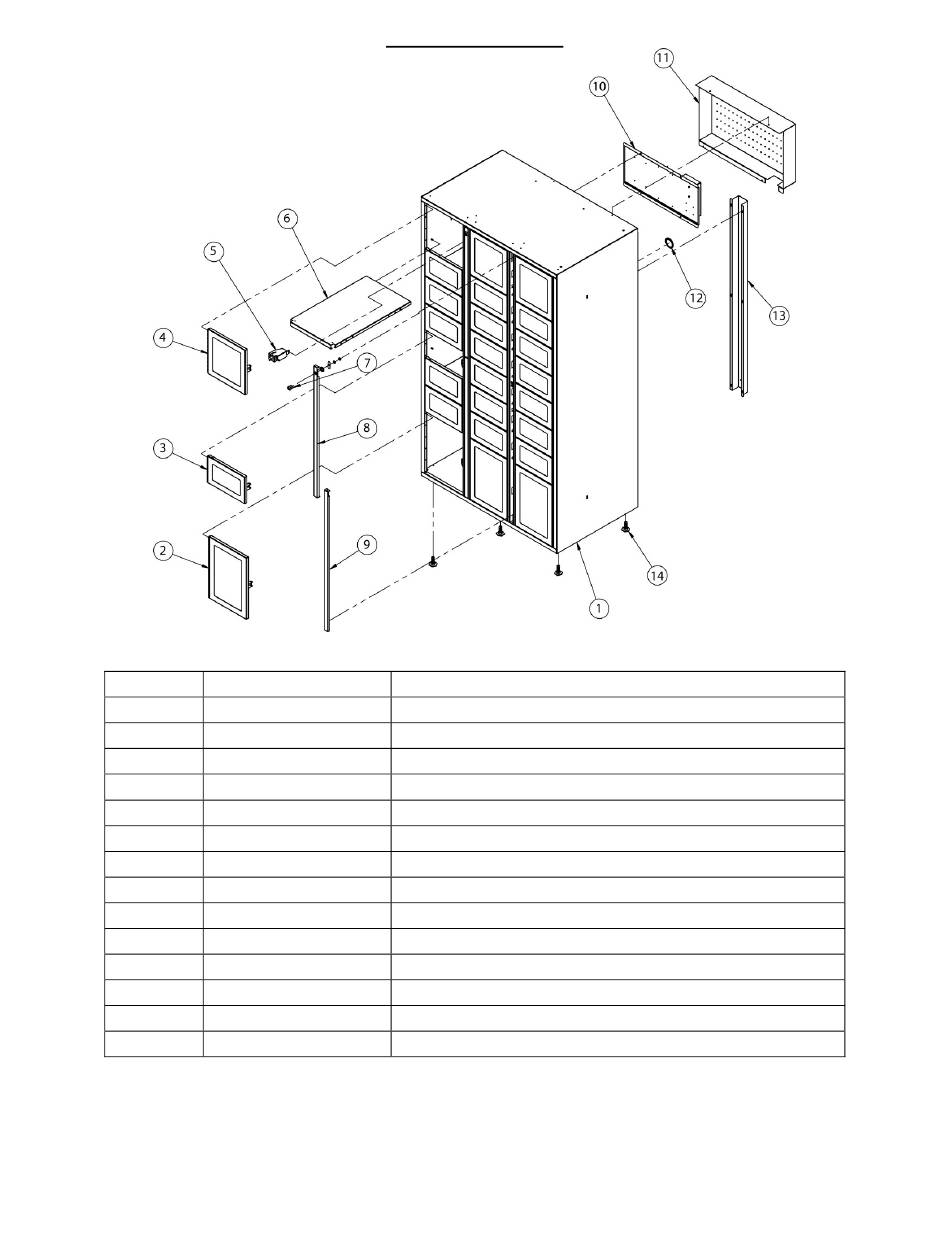

CABINET ASSEMBLY

PART NO.
SAI86002 CABINET
SAI86008 LARGE COMPARTMENT DOOR
SAI86006 SMALL COMPARTMENT DOOR
SAI86007 MEDIUM COMPARTMENT DOOR
STI87038 SOLENOID
STI86016 SHELF
HAI100 LOCK
STI86014 SERVICE DOOR, TOP
STI86015 SERVICE DOOR, BOTTOM
STI86020 PANEL, ELECTRICAL
STI86021 COVER, ELECTRICAL PANEL
HAI2053 PLUG
STI86022 WIRE HARNESS CHANNEL
HAI705 LEG LEVELERS
DESCRIPTION
11
