Summary of Contents for Ava Bullet Series

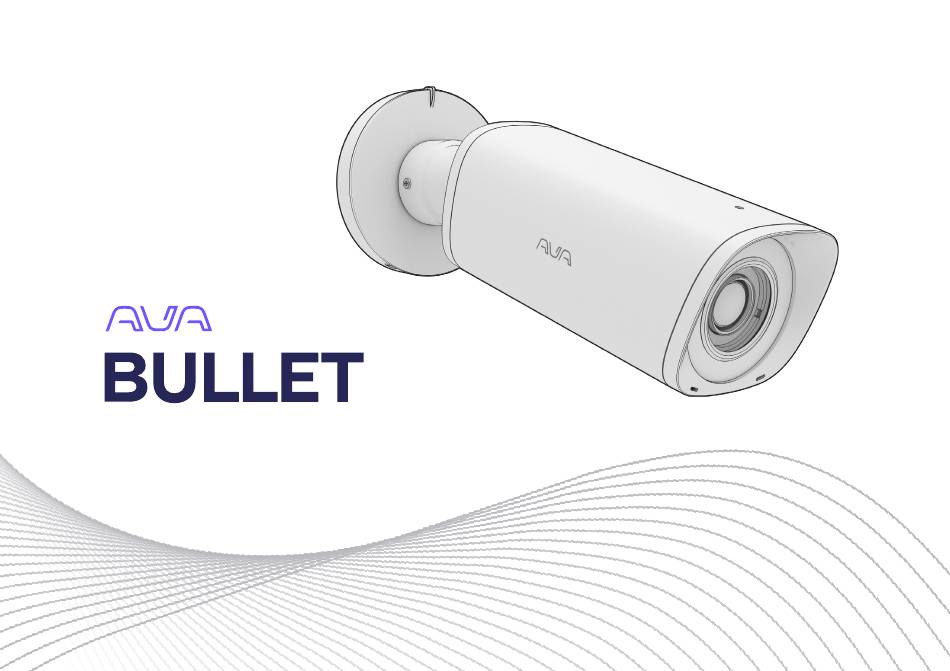

  • Page 1 Mounting guide...

  • Page 2: Important Warnings And Safety Instructions

    Do not clean the camera with harsh detergents, gasoline or chemicals such as acetone. Do not try to repair the unit yourself. Refer all servicing of the camera to Ava or contact a reseller. Do not install the camera during rain, mist or other conditions of high humidity. Water may be trapped inside, causing damage or condensation issues.

  • Page 3: Box Contents

    Box contents Bullet • Mounting guide | 3 AVA-BULLET-MG-06 Copyright © 2023, Ava Video Security. All rights reserved.

  • Page 4: Using The Wall Bracket

    Using the wall bracket Screws are not included. The installer must use suitable fasteners. Bullet • Mounting guide | 4 AVA-BULLET-MG-06 Copyright © 2023, Ava Video Security. All rights reserved.
  • Page 5 Opening the housing and removing cable gland It’s easier to access the screws when the ball joint is moved to an angle. Bullet • Mounting guide | 5 AVA-BULLET-MG-06 Copyright © 2023, Ava Video Security. All rights reserved.
  • Page 6 Installing the camera on to the wall bracket Bullet • Mounting guide | 6 AVA-BULLET-MG-06 Copyright © 2023, Ava Video Security. All rights reserved.
  • Page 7 Installing cable gland and connecting ethernet cable Bullet • Mounting guide | 7 AVA-BULLET-MG-06 Copyright © 2023, Ava Video Security. All rights reserved.
  • Page 8 Connect the camera and adjust the picture Add the Camera to Ava Aware and ensure that When the correct position is obtained, firmly tighten the screws (3Nm) to lock the position. the video stream is working. Close the camera and tighten the two screws on the rear cover.
  • Page 9 Change lens orientation, horizontal (16:9) - vertical (9:16) Please be aware of the screw, it can easily be lost during disassembly Bullet • Mounting guide | 9 AVA-BULLET-MG-06 Copyright © 2023, Ava Video Security. All rights reserved.
  • Page 10 Change lens orientation, horizontal (16:9) - vertical (9:16) HORIZONTAL VERTICAL Ensure the camera body has been opened before attempting to rotate the lens Bullet • Mounting guide | 1 0 AVA-BULLET-MG-06 Copyright © 2023, Ava Video Security. All rights reserved.
