Summary of Contents for Ava QUAD

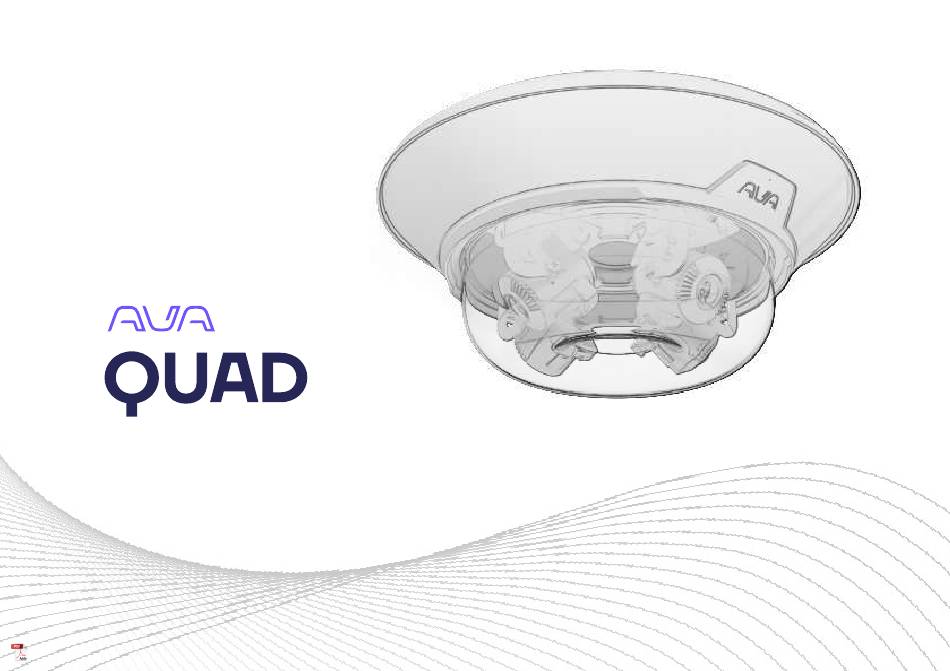

- Page 1 Mounting guide...
-
Page 2: Important Warnings And Safety Instructions
Do not clean the camera with harsh detergents, gasoline or chemicals such as Acetone. Do not try to repair the unit yourself. Refer all servicing of the camera to Ava or contact a reseller. Disconnect power from the unit when performing a maintenance task. - Page 3 Overview Outer view Top view Through holes for Threaded holes for ceiling-mount or wall Release mounting adapter mount bracket button IR LEDs Dome cover Top mounting plate Bullet • Mounting guide | 3...
- Page 4 Overview Inner view Side track Lens (sensor) module, 3-axis adjustable RJ45 Reset button Ethernet port Cable gland for ethernet Status LEDs Safety tether wire Bullet • Mounting guide | 4...
- Page 5 Camera mount - preparation Bullet • Mounting guide | 5...
- Page 6 Camera mount - preparation Bullet • Mounting guide | 6...
-
Page 7: Ceiling Mount
Ceiling mount 180mm Drill hole Cable hole Cable hole Drill hole Drill hole Alignment sticker Bullet • Mounting guide | 7... -
Page 8: In-Ceiling Mount
In-ceiling mount Assemble the bracket rod with the two bracket stands and place the assembly at the desired location before the screws are fastened. Hanging rod Main keel Rail Secondary keel ø15cm If needed, add hanging rods to strengthen the ceiling structure. Weight of camera: 2.7 Kg Weight of Recessed kit: 1.1 Kg Bullet •... - Page 9 In-ceiling mount Adjust the position relative to the ceiling tile, the mounting plate should be a little bit higher than Fasten the two nuts to secure the positions of the bracket stands on the hang rod. Remove the the lower edge of the ceiling tile. Make sure you can press the release button on the mounting assembly from the ceiling and install the ceiling tile.
-
Page 10: Pendant Mount
Pendant mount Use the alignment sticker and drill holes for the Pendant head, Install the Pendant pipe and secure with the upper hex screw, Install the top mounting plate. secure it with the screws. install the Mounting adapter and secure it with the lower hex screw. Note the front indicators indicate the default front side of the camera. -
Page 11: Wall Mount
Wall mount Attach the alignment sticker to the wall. Drill 4 holes for screws Leave one washer on each threaded pole. Connect the Ethernet Route the cables along the routing guide poles to form drip loops. and 1 hole for routing cables. cable and use foam tapes or seal foam to ensure the back-end connection is waterproof. - Page 12 Wall mount Secure the top mounting plate. Bullet • Mounting guide | 1 2...
- Page 13 Pole / Corner mount Install the Pole bracket to the pole wrapping the metal band around Install the Wall mount bracket to the Pole or Corner bracket as Secure the top mounting plate. the pole. Or install the Corner bracket to the corner using correct described on the previous page.
- Page 14 Camera mount - final installation Bullet • Mounting guide | 1 4...
- Page 15 Camera mount - final installation Adjust the image orientation in Ava Aware. 19cm Mind the electrostatic damage by avoiding contact with exposed circuitry. Bullet • Mounting guide | 1 5...
- Page 16 Camera mount - final installation Bullet • Mounting guide | 1 6...
