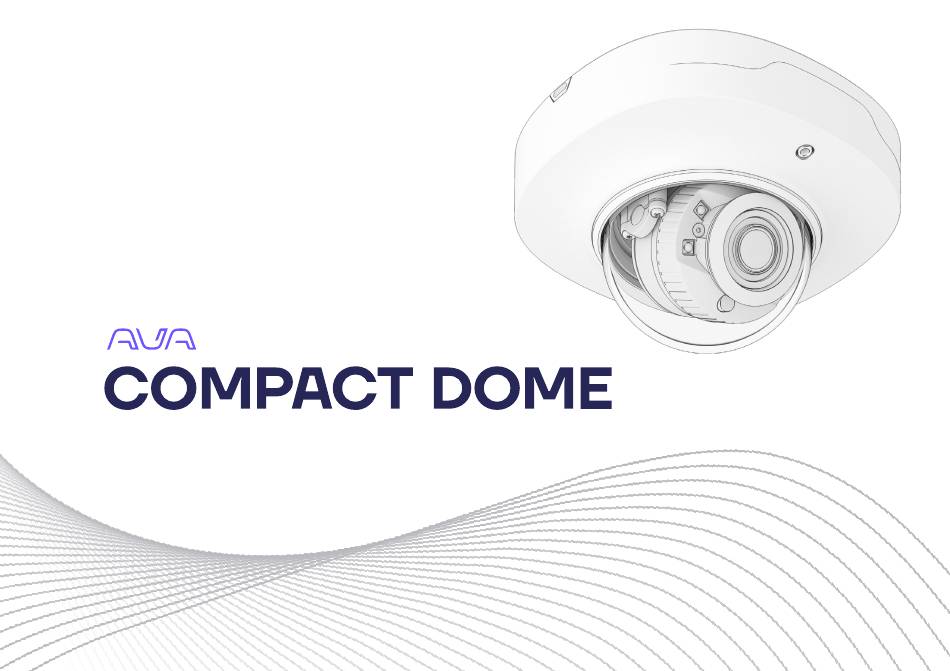

  • Page 1 Mounting guide...

  • Page 2: Important Warnings And Safety Instructions

    Do not clean the camera with harsh detergents, gasoline or chemicals such as acetone. Do not try to repair the unit yourself. Refer all servicing of the camera to Ava or contact a reseller. This product should be supplied by a Power over Ethernet (PoE) Power Sourcing Equipment (PSE) compliant to IEEE 802.3af.

  • Page 3: Box Contents

    Screw dimensions Anchor dimensions = 9.2 mm = 30 mm l = 32 mm = 6 mm d = 4.1 mm 3 /8 Ava Compact Dome • Mounting guide | AVA-COMPACTDOME-MG-02 Copyright © 2022, Ava Video Security. All rights reserved.

  • Page 4: Camera Placement

    Avoid placing the camera near obstacles and overhangs, or in a corner. This causes reflections which reduce the image quality, especially when using night vision. 4 /8 Ava Compact Dome • Mounting guide | AVA-COMPACTDOME-MG-02 Copyright © 2022, Ava Video Security. All rights reserved.
  • Page 5 Using the drilling template to place the camera For through the wall cable connections, mark the cable entry position using the template. 5 /8 Ava Compact Dome • Mounting guide | AVA-COMPACTDOME-MG-02 Copyright © 2022, Ava Video Security. All rights reserved.
  • Page 6 Drill the holes and install the anchors and camera Dia: 6mm, [¼”] Depth: 40mm [1.5”] 6 /8 Ava Compact Dome • Mounting guide | AVA-COMPACTDOME-MG-02 Copyright © 2022, Ava Video Security. All rights reserved.

  • Page 7: Adjust The Picture

    Attach the ethernet cable Adjust the picture Use the video stream to confirm the image orientation. Adjust the image orientation in Ava Aware. Ava Compact Dome • Mounting guide | AVA-COMPACTDOME-MG-02 Copyright © 2022, Ava Video Security. All rights reserved.

  • Page 8: Install The Top Cover

    Use a long nose pliers or similar to you must remove the the cable pull out the cable bridging piece. bridging piece. 8 /8 Ava Compact Dome • Mounting guide | AVA-COMPACTDOME-MG-02 Copyright © 2022, Ava Video Security. All rights reserved.
