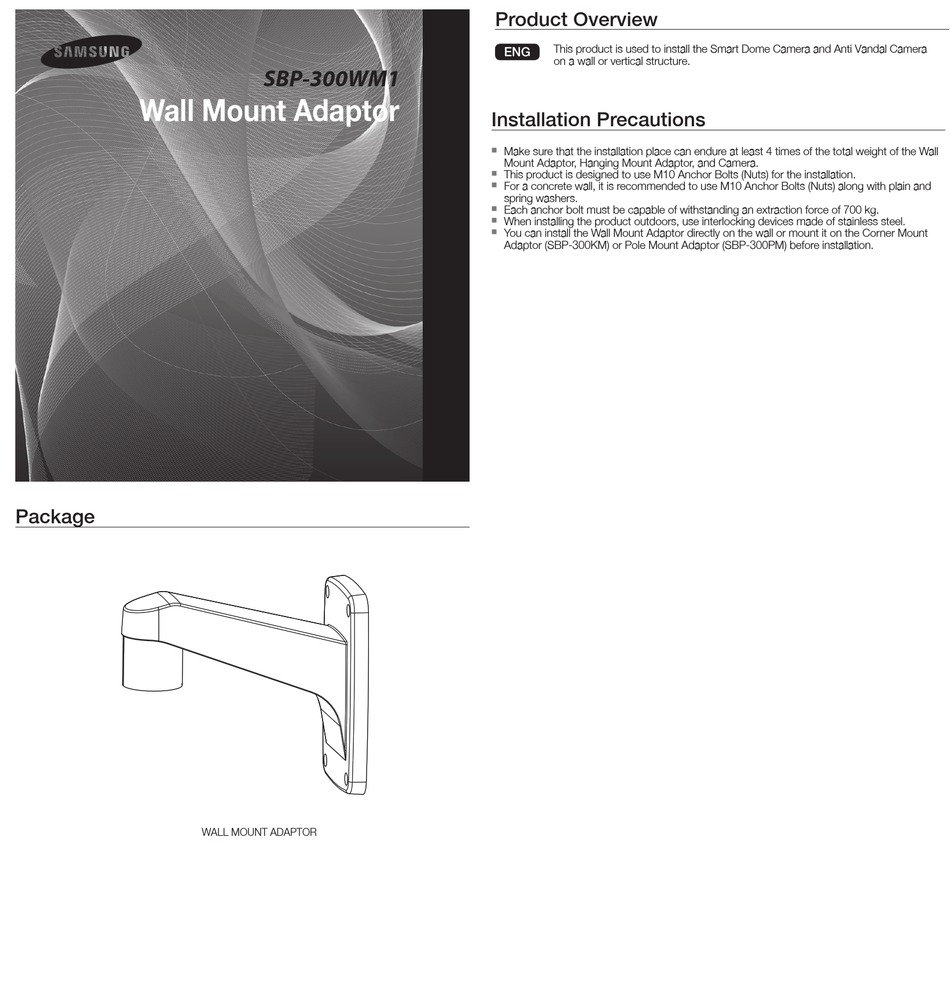

Samsung SBP-300WM1 Manual

Wall Mount Adaptor
Package

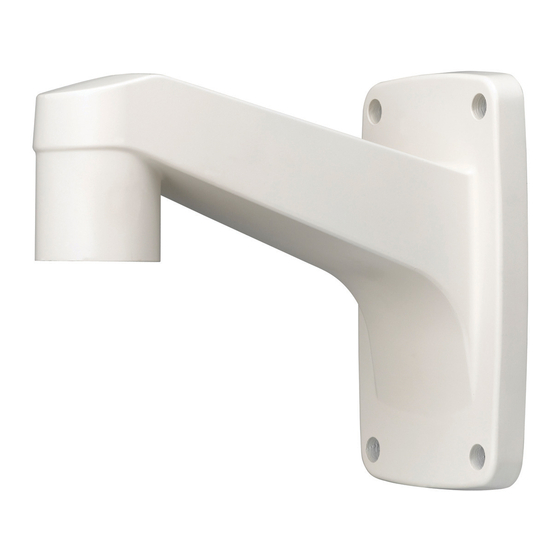

SBP-300WM1
WALL MOUNT ADAPTOR
Product Overview
This product is used to install the Smart Dome Camera and Anti Vandal Camera
ENG
on a wall or vertical structure.
Installation Precautions
`
Make sure that the installation place can endure at least 4 times of the total weight of the Wall
Mount Adaptor, Hanging Mount Adaptor, and Camera.
`
This product is designed to use M10 Anchor Bolts (Nuts) for the installation.
`
For a concrete wall, it is recommended to use M10 Anchor Bolts (Nuts) along with plain and
spring washers.
`
Each anchor bolt must be capable of withstanding an extraction force of 700 kg.
`
When installing the product outdoors, use interlocking devices made of stainless steel.
`
You can install the Wall Mount Adaptor directly on the wall or mount it on the Corner Mount
Adaptor (SBP-300KM) or Pole Mount Adaptor (SBP-300PM) before installation.
