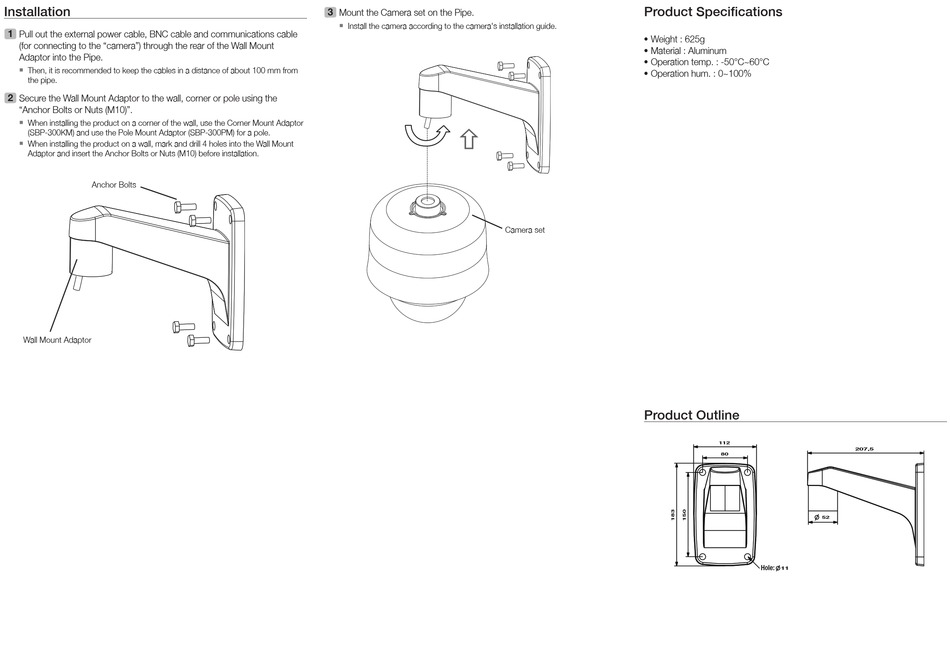

Installation
1 Pull out the external power cable, BNC cable and communications cable
(for connecting to the "camera") through the rear of the Wall Mount
Adaptor into the Pipe.
`
Then, it is recommended to keep the cables in a distance of about 100 mm from
the pipe.
2 Secure the Wall Mount Adaptor to the wall, corner or pole using the
"Anchor Bolts or Nuts (M10)".
`
When installing the product on a corner of the wall, use the Corner Mount Adaptor
(SBP-300KM) and use the Pole Mount Adaptor (SBP-300PM) for a pole.
`
When installing the product on a wall, mark and drill 4 holes into the Wall Mount
Adaptor and insert the Anchor Bolts or Nuts (M10) before installation.
Anchor Bolts
Wall Mount Adaptor
3 Mount the Camera set on the Pipe.
`
Install the camera according to the camera's installation guide.
Camera set
Product Specifications
• Weight : 625g
• Material : Aluminum
• Operation temp. : -50°C~60°C
• Operation hum. : 0~100%
Product Outline
112
80
52
Hole:
11
207,5
