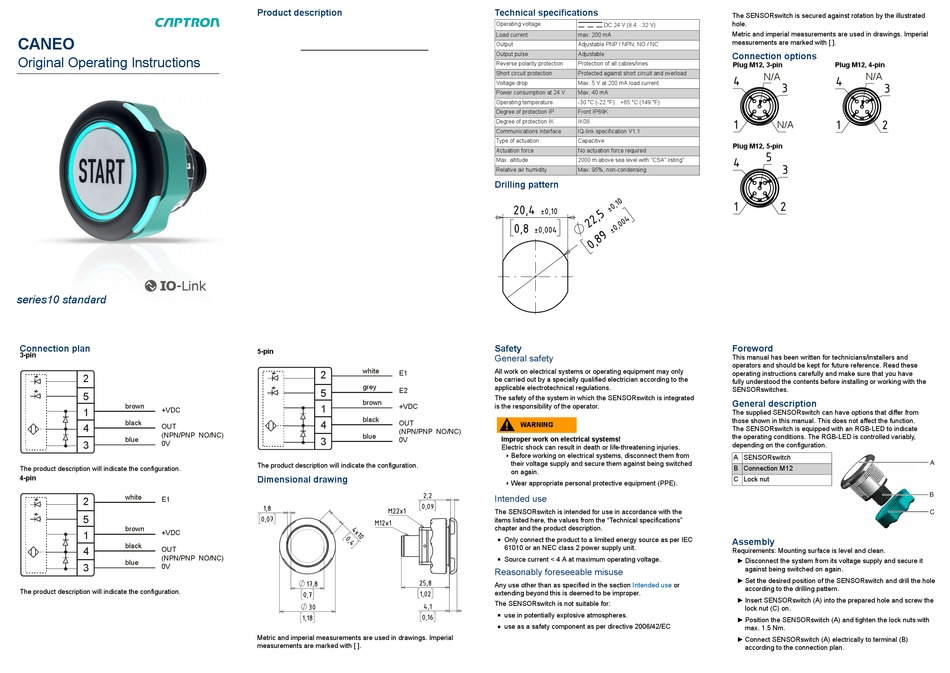

Captron 10 Series Original Operating Instructions

CANEO CANEO
Original Operating Instructions Original Operating Instructions
series10 standard series10 standard
Connection plan
3-pin
2
5
brown
1 +VDC
black
4
OUT
(NPN/PNP NO/NC)
blue
3 0V
The product description will indicate the configuration.
4-pin
white
2
E1
5
brown
1 +VDC
black
4
OUT
(NPN/PNP NO/NC)
blue
3 0V
The product description will indicate the configuration.

Product description

5-pin
white
2 E1
grey
5 E2
brown
1 +VDC
black
4 OUT
(NPN/PNP NO/NC)
blue
3 0V
The product description will indicate the configuration.
Dimensional drawing
Metric and imperial measurements are used in drawings. Imperial
measurements are marked with [ ].

Technical specifications

Operating voltage
DC 24 V (8.4...32 V)
Load current max. 200 mA
Output Adjustable PNP / NPN; NO / NC
Output pulse Adjustable
Reverse polarity protection Protection of all cables/lines
Short circuit protection Protected against short circuit and overload
Voltage drop Max. 5 V at 200 mA load current
Power consumption at 24 V Max. 40 mA
Operating temperature -30 °C (-22 °F)...+65 °C (149 °F)
Degree of protection IP Front IP69K
Degree of protection IK IK08
Communications interface IQ-link specification V1.1
Type of actuation Capacitive
Actuation force No actuation force required
Max. altitude 2000 m above sea level with "CSA" listing"
Relative air humidity Max. 95%, non-condensing
Drilling pattern

Safety

General safety

All work on electrical systems or operating equipment may only
be carried out by a specially qualified electrician according to the
applicable electrotechnical regulations.
The safety of the system in which the SENSORswitch is integrated
is the responsibility of the operator.
WARNING
Improper work on electrical systems!
Electric shock can result in death or life-threatening injuries.
Before working on electrical systems, disconnect them from
4
their voltage supply and secure them against being switched
on again.
Wear appropriate personal protective equipment (PPE).
4

Intended use

The SENSORswitch is intended for use in accordance with the
items listed here, the values from the "Technical specifications"
chapter and the product description.
Only connect the product to a limited energy source as per IEC
61010 or an NEC class 2 power supply unit.
Source current < 4 A at maximum operating voltage.

Reasonably foreseeable misuse

Any use other than as specified in the section Intended use or
extending beyond this is deemed to be improper.
The SENSORswitch is not suitable for:
use in potentially explosive atmospheres.
use as a safety component as per directive 2006/42/EC
The SENSORswitch is secured against rotation by the illustrated
hole.
Metric and imperial measurements are used in drawings. Imperial
measurements are marked with [ ].

Connection options

Plug M12, 3-pin Plug M12, 4-pin
N/A
N/A
N/A
Plug M12, 5-pin

Foreword

This manual has been written for technicians/installers and
operators and should be kept for future reference. Read these
operating instructions carefully and make sure that you have
fully understood the contents before installing or working with the
SENSORswitches.

General description

The supplied SENSORswitch can have options that differ from
those shown in this manual. This does not affect the function.

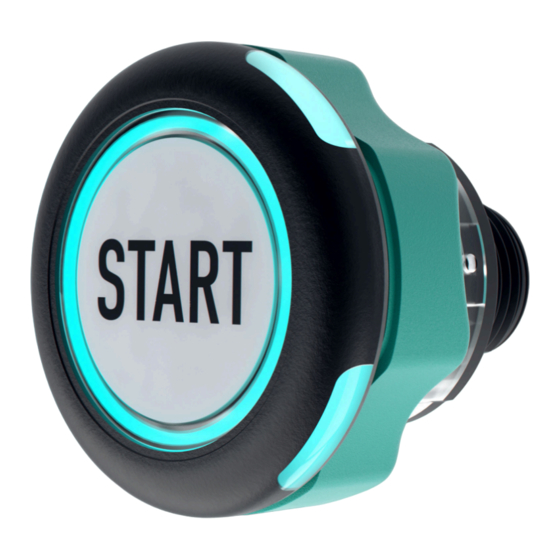

The SENSORswitch is equipped with an RGB-LED to indicate
the operating conditions. The RGB-LED is controlled variably,
depending on the configuration.
A SENSORswitch
B Connection M12
C Lock nut

Assembly

Requirements: Mounting surface is level and clean.
► Disconnect the system from its voltage supply and secure it
against being switched on again.
► Set the desired position of the SENSORswitch and drill the hole
according to the drilling pattern.
► Insert SENSORswitch (A) into the prepared hole and screw the
lock nut (C) on.
► Position the SENSORswitch (A) and tighten the lock nuts with
max. 1.5 Nm.
► Connect SENSORswitch (A) electrically to terminal (B)
according to the connection plan.
