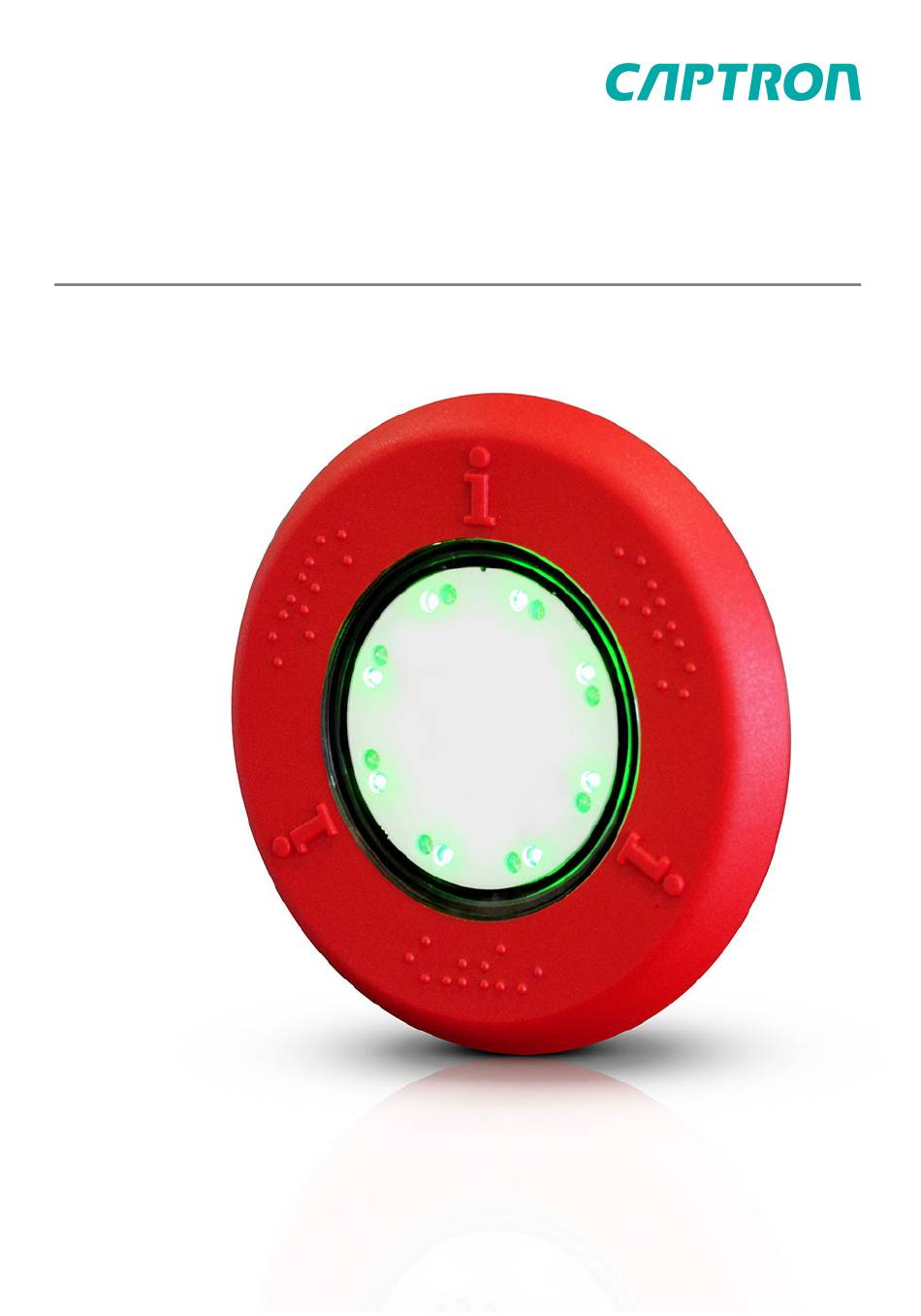

- Page 1 CHT3 CHT3 Original Operating Instructions Original Operating Instructions CHT3-1 / CHT3-2 / CHT3-A CHT3-1 / CHT3-2 / CHT3-A CHT3-V / CHT3-N / CHT3-S CHT3-V / CHT3-N / CHT3-S...
-
Page 2: Table Of Contents
Table of Contents Safety................... 3 General safety................3 Notes and symbols used............3 Personnel qualifications............5 Intended use................5 Reasonably foreseeable misuse..........5 Technical specifications..............6 Connection options..............6 Connection plan................8 Drilling pattern................9 Dimensional drawing.............. 10 General description..............11 Assembly..................12 Recommended screw types........... 13 Maximum dimensions of the screws........ -
Page 3: Safety
This manual has been written for technicians/installers and operators and should be kept for future reference. Read these operating instructions carefully and make sure that you have fully understood the contents before installing or working with the CHT3. Metric and imperial measurements are used in drawings. Imperial measurements are marked with [ ]. - Page 4 WARNING Warning designates a hazardous situation, which, if ignored, may lead to death or serious injury. The symbol next to the warning indicates the type and source of the danger. CAUTION Caution designates a hazardous situation, which, if ignored, may lead to injury. The symbol next to the warning indicates the type and source of the danger.
-
Page 5: Personnel Qualifications
WARNING Improper work on electrical systems! Electric shock can result in death or life- threatening injuries. Before working on electrical systems, disconnect them from their voltage supply and secure them against being switched on again. Work on electrical installations should be carried out only by qualified personnel in compliance with local and national electrical regulations and specifications. -
Page 6: Technical Specifications
Technical specifications Operating voltage 24 V (16.8 to 32 V) Load current max. 400 mA Output pulse approx. 300 ms dynamic Corresponds to operating time static Reverse polarity protection Protection of all cables/lines Short circuit protection Protected against short circuit and overload Voltage drop max. - Page 7 CHT3-_6_ … CHT3-_6_ … Plug JST 2.54, 4-pin Plug JST 2.54, 5-pin CHT3-_1_ … CHT3-_4_ … Plug AMP 6.3, 4-pin Plug AMP 6.3, 4-pin CHT3-_8_ … CHT3-_8_ … Plug M12, 4-pin Plug M12, 5-pin Strands CHT3-_7_ … 200 mm single strands with wire end ferrules Wire end ferrules with plastic collars DIN 46228 Wire cross-section strands 0.25 mm...
-
Page 8: Connection Plan
Connection plan PNP-NO, 4-pin brown +VDC white +VDC / LED1 black PNP-NO LED1 LED2 Load blue NPN-NO 4-pin brown +VDC load black NPN-NO white 0V / LED1 LED2 LED1 blue PNP-NO 5-pin brown +VDC white +VDC / LED1 grey +VDC / LED2 LED1 black PNP-NO... -
Page 9: Drilling Pattern
Drilling pattern V-assembly CHT3-2 CHT3-V... -
Page 10: Dimensional Drawing
A-assembly CHT3-1 CHT3-S CHT3-N CHT3-A Dimensional drawing Exemplary presentation, plug M8, 4-pin... -
Page 11: General Description

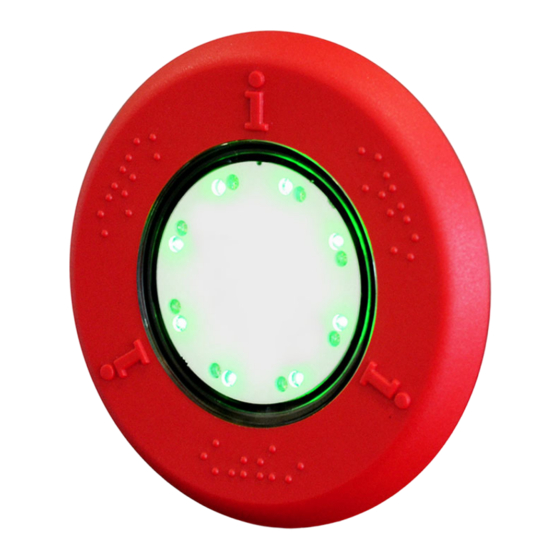

General description The supplied SENSORswitch can have options that differ from those shown in this manual. This does not affect the function. The SENSORswitch is equipped with different color LEDs to indicate operating conditions. The LEDs are actuated differently depending on the pin configuration. -
Page 12: Assembly
Assembly Requirements: Mounting surface is level and clean. ► Disconnect the system from its voltage supply and secure it against being switched on again. ► Set the desired position of the SENSORswitch and provide a center hole of minimum Ø 50 mm to maximum Ø 58 mm. The product description will indicate whether an A- or V- assembly is involved. -
Page 13: Recommended Screw Types
Recommended screw types DIN EN ISO 1207 M4 DIN EN ISO 7045 M4 DIN EN ISO 1481 Ø3.9 mm DIN EN ISO 7049 Ø3.9 mm Maximum dimensions of the screws The drawing shows the maximum dimensions of the screws. Maintenance Maintenance operations Carry out the following maintenance operations at the specified intervals. -
Page 14: Clean Cht3
Maintenance operation as needed annually Clean the button surface Check cables for intactness and firm Check screw connections for tightness NOTICE Solvents contained in cleaning agents can attack the plastic of the button! Clean the surface of the button with a neutral cleaning agent or a damp microfiber cloth. -
Page 15: Disposal
RAL6024 Scan QR code for more information or visit our website cht3.captron.de. Manual updates CAPTRON reserves the right to make changes to the contents of this manual as needed. The most current version can be found on our website. www.captron.com... -
Page 16: Imprint
Imprint The operating instructions have been authored and published by CAPTRON Electronic GmbH Johann-G.-Gutenberg-Straße 7 82140 Olching – Germany Tel.: +49 (0)8142 - 44 88 - 160 sales@captron.com www.captron.com Copyright 2020 CHT3 1.2... -
Page 17: Product Description / Product Description
Product description / Product description...
