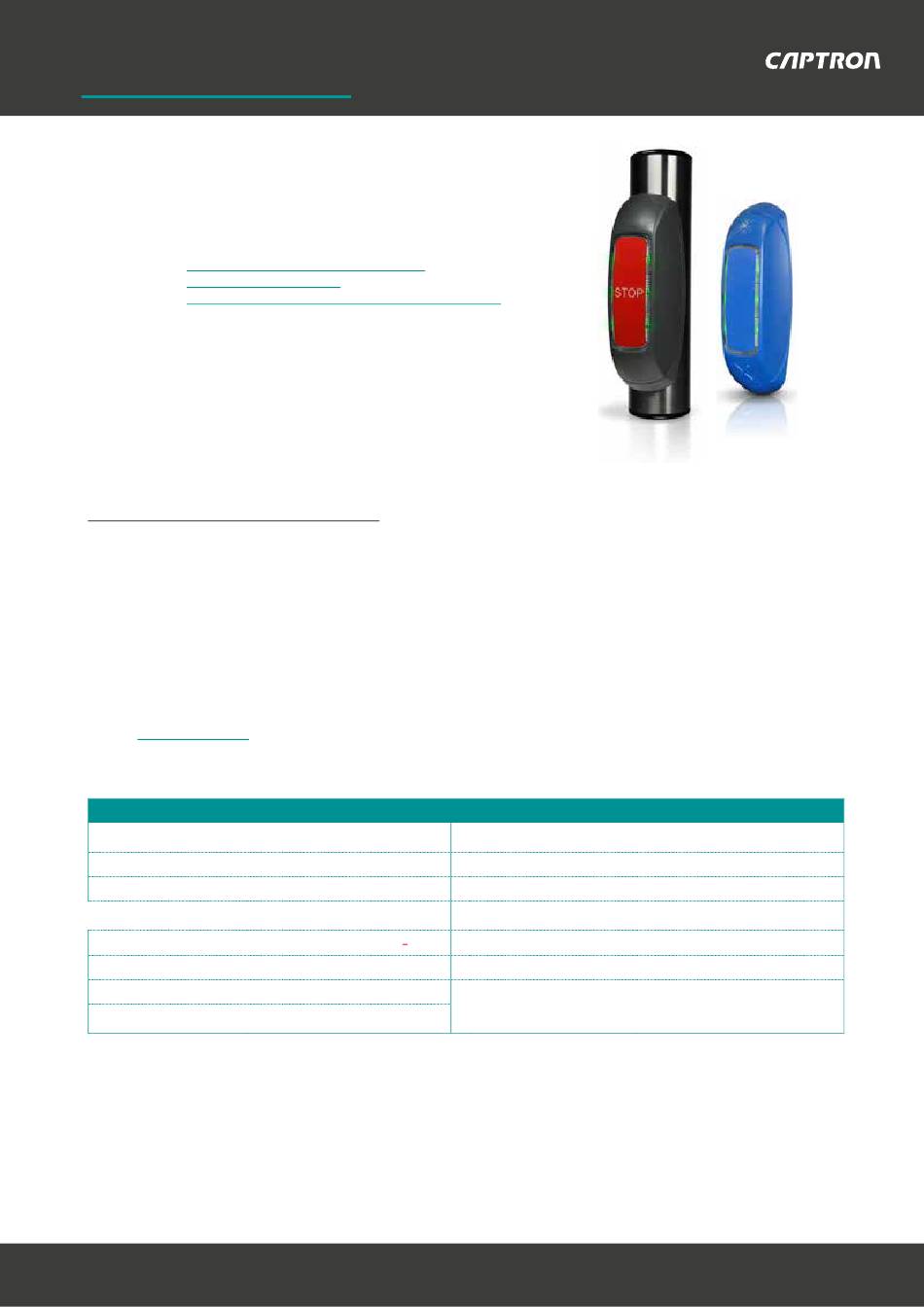

Captron SENSORswitch HWT2 Series Configuration

Configuration Help for SENSORswitch series HWT2
Configuration help for SENSORswitch
series HWT2
Content: Short description / Technical data (Page 1)
Configuration help (Page 2)
Additional information / Connection diagram (Page 3 - 5)
CAPTRON is the first manufacturer worldwide to develop and produce capacitive
stop request SENSORswitches with touch function for the public and private
transportation. When touching the switch surface, the passenger receives visual
feedback by 12 LEDs and optionally also acoustically by signal tone.

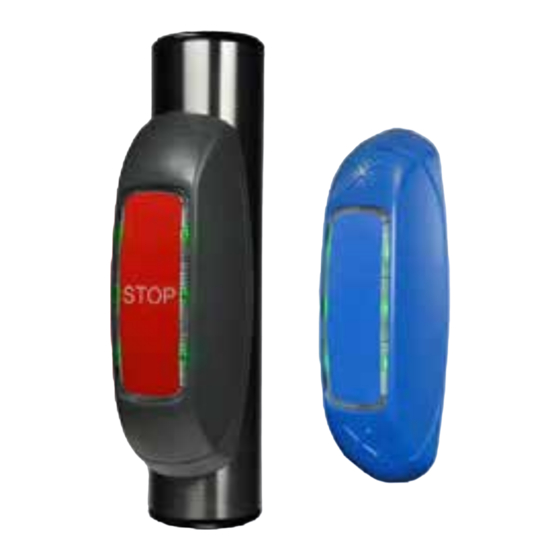

The HWT2 stop request SENSORswitches are specially designed for daily continuous
use in public transport company and convince through extreme longevity, reliability and
robustness. Mechanical wear or regular maintenance are therefore not applicable.
The HWT2 series is suitable both for rod mounting with different diameters (Ø 30 mm,
34/35mm) and for wall mounting. The simple and quick mounting is done by clipping the SENSORswitches into the previously screwed
mounting brackets on the rod or wall. Thus, no screws are visible on the housing and vandalism is prevented.
Please find below the most important features listed:
- 16 cm² switch surface
- Option 1: rod mounting (Ø 30mm, 34/35mm)
- Option 2: wall mounting
- Switches to touch, no pressure necessary
- Feedback - optical and acoustic signals
by 12 LEDs and beeper (optional)
CAPTRON can provide individual advice to enable you to choose the perfect
product from the HWT2 series for the required specifications and applications.
Please contact us:
Tel. +49 (0)8142 / 44 88 – 160
E-Mail: sales@captron.com
Technical data at 24 V and 20 °C:
Supply voltage:
Load current:
Output:
Minimum period of
operation:
Output signal:
LED 1:
LED 2:
Reverse polarity
protection:
Geschäftsführer: Reinhard Bellm, Petra Bellm, Philip Bellm • München HRB 70962 • USt.-ID Nr.: DE 129 310 850
CAPTRON Electronic GmbH
www.captron.com
DC 24V DC (10 ... 32V)
max. 200 mA
PNP-NO
approx. 180ms
1
approx. 400ms (Dynamic )
8 green LEDs
8 red LEDs
Protection of all lines
Tel +49(0)8142-4488-0 • Fax +49(0)8142-4488-100 • info@captron.com
- Extremely long service life - several 100 million switching cycles
- Individualization through symbols
- Barrier-free - Braille and raised pictograms on the housing or
switch surface (optional / TSI-PRM compliant)
Short-circuit protection:
Voltage drop:
Current consumption:
Operation temperature:
Degree of protection (IP):
Type of operation:
Operation force:
CAPTRON Electronic GmbH Johann-G.-
Gutenberg-Str.7
82140 Olching, Germany
www.captron.com
Short-circuit and overload
protection
max. 2 V at 200 mA
max. 15 mA at 24V DC
-30 ... +80°C
Housing IP40
Capacitive
No operation force required
Johann-G.-Gutenberg-Str. 7
82140 Olching, Germany
