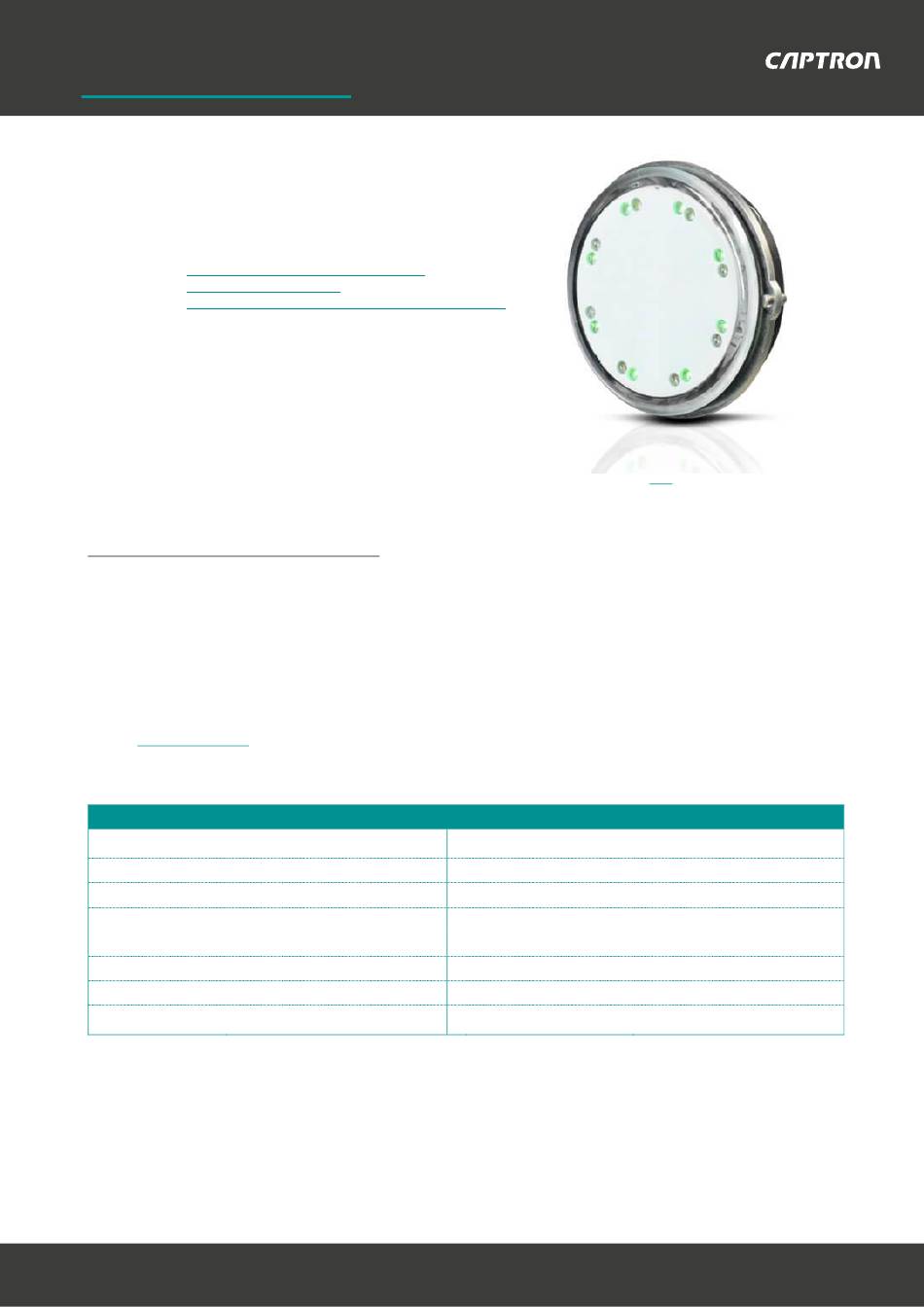

Captron SENSORswitch CHT3-F Series Configuration

Configuration Help for SENSORswitch series CHT3-F
Configuration help for SENSORswitch
series CHT3-F
Content: Short description / Technical data (Page 1)
Configuration help (Page 2)
Additional Information / Connection Diagram (Page 3 & 4)
Different shapes, installation depths and plug-in connections mean that the
CHT3 series is suitable for a wide range of uses.

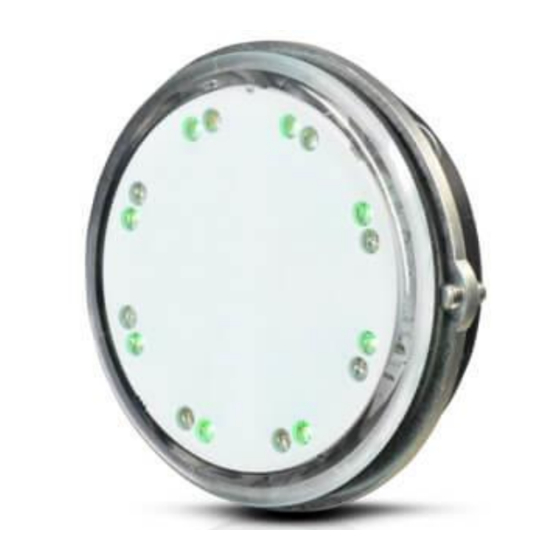

The CHT3-F series has been developed for mounting in front plates.
The sensor element is inserted into the front plate from the front and fastened from
the back by means of a locking ring (locking ring included in delivery).
Please note that the front plate may have a thickness of max. 4.5mm so that the
CHT3-F SENSORswitch can be mounted.
The customer can choose from a wide range of available symbols for the switch surface (symbol list: Link). In addition to the optical
feedback by 16 bright LEDs, the SENSORswitches can be ordered with a tactile feedback by vibration.
This series is mainly used in industrial automation and building technology.
Please find below the most important features listed:
- Ø 50 mm total diameter
- Front plate mounting with locking ring
- Ø 48 – 48,5 mm mounting hole
CAPTRON can provide individual advice to enable you to choose the perfect
product from the CHT3 series for the required specifications and applications.
Please contact us:
Phone: +49 (0)8142 / 44 88 – 160
E-Mail: sales@captron.com
Technical data at 24 V and 20 °C:
Supply voltage:
Load current:
Output:
Output signal:
LED 1:
LED 2:
Reverse polarity
protection:
Geschäftsführer: Reinhard Bellm, Petra Bellm, Philip Bellm • München HRB 70962 • USt.-ID Nr.: DE 129 310 850
CAPTRON Electronic GmbH
www.captron.com
DC 24V DC (16,8 ... 32V)
Max. 400 mA
PNP-NO (NPN-NO optional)
approx. 300ms (Option „Dynamic")
Permanent signal (Option „Static")
8 green LEDs
8 red LEDs
Protection of all lines
Tel +49(0)8142-4488-0 • Fax +49(0)8142-4488-100 • info@captron.com
- 3,3mm height
- Customization through symbols
- Optional: Tactile feedback (Vibration)
Short-circuit protection:
Voltage drop:
Operation temperature:
Operation temperature:
Degree of protection (IP):
Type of operation:
Operation force:
CAPTRON Electronic GmbH Johann-G.-
Gutenberg-Str.7
82140 Olching, Germany
www.captron.com
Short-circuit and overload
protection
max. 3 V at 400 mA
max. 30 mA at 24V DC
-30 ... +80°C (Dynamic)
0 ... + 55°C (Static)
Frontside IP69K
Capacitive
No operation force required
Johann-G.-Gutenberg-Str. 7
82140 Olching, Germany
