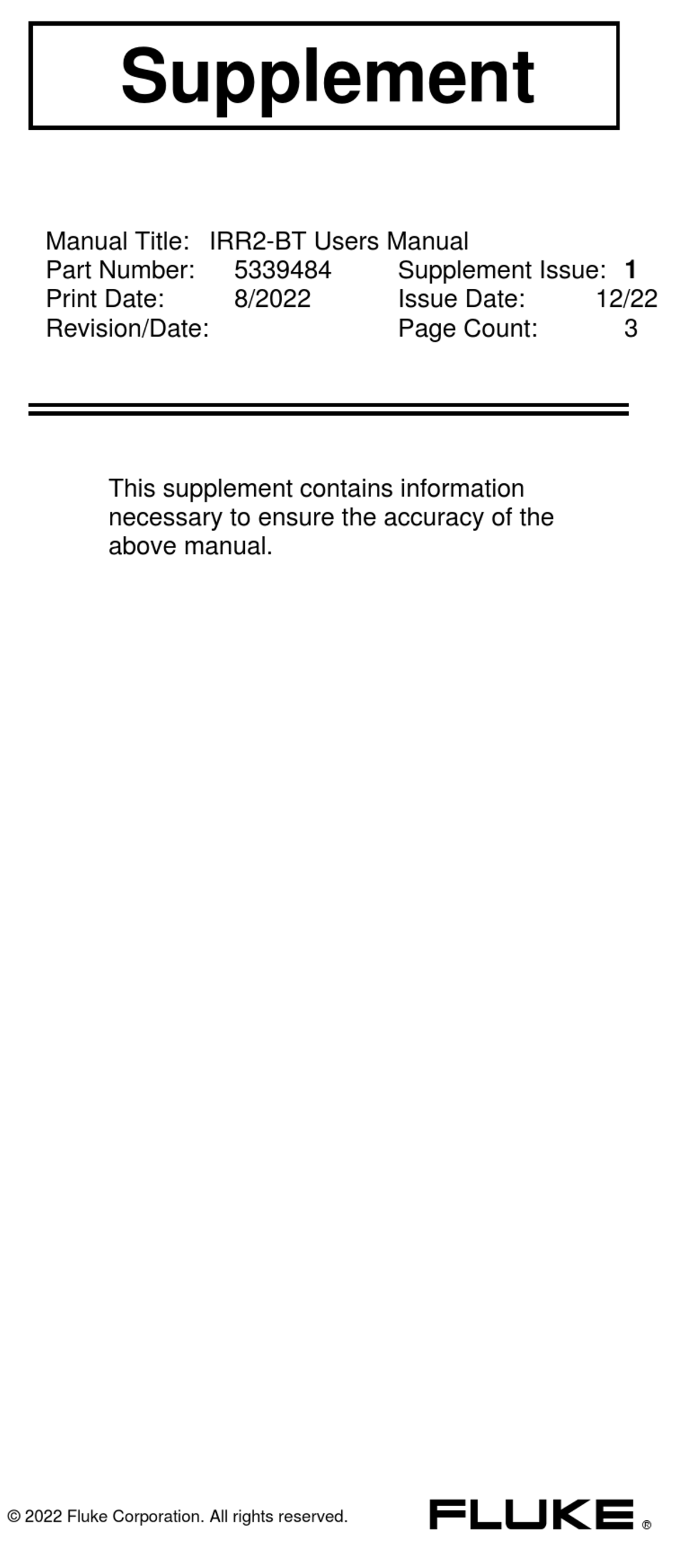

Supplement
Manual Title: IRR2-BT Users Manual
Part Number:
Print Date:
Revision/Date:
This supplement contains information
necessary to ensure the accuracy of the
above manual.
© 2022 Fluke Corporation. All rights reserved.
5339484
8/2022
Supplement Issue: 1
Issue Date:
Page Count:
12/22
3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fluke IRR2-BT
Summary of Contents for Fluke IRR2-BT
- Page 1 Manual Title: IRR2-BT Users Manual Part Number: 5339484 Supplement Issue: 1 Print Date: 8/2022 Issue Date: 12/22 Revision/Date: Page Count: This supplement contains information necessary to ensure the accuracy of the above manual. © 2022 Fluke Corporation. All rights reserved.
- Page 2 Users Manual Supplement IRR2-BT Change #1, On page 2, Kit Components, replace the list with the following: • 1 IRR2-BT Solar Irradiance Meter Pro • 1 External Temperature Probe • 2 Suction Cups (for External Temperature Probe) • 1 Carrying Case with Shoulder Strap •...
- Page 3 Supplement IRR2-BT Users Manual Caution Always keep the suction cups • in the provided box for protection. When you attach and remove • the suction cup from the probe, hold it from the center and pull it upward or downward. Do not pull on the edge of the cup, it may damage the cup.
- Page 4 Users Manual Supplement IRR2-BT On page 13, Specifications, Irradiance, replace the note with the following: Note Irradiance measurement accuracy is specified for an angle of incidence 35 degrees from the sun at AM1.5 (ASTM G-173) spectrum. On page 13, Specifications, Temperature Measurement, replace with the following: Measuring Accuracy..±5 °C (±9 °F) @ -10 °C to 75 °C...
