Important Safety Information
Read through this entire manual for important guidelines and instructions prior to assembly. Failure to follow these
guidelines and instructions can result in property damage or serious personal injuries.
This unit should be placed on a level surface. Failure to do so can result in poor product per-
formance or create a possible safety hazard. DO NOT CLIMB, STAND or USE THIS UNIT AS A
LADDER. TO PREVENT TIPPING, ALWAYS SECURE TO A WALL WITH SUITABLE FASTENERS, NOT
INCLUDED. DO NOT USE THIS UNIT TO STORE AQUARIUMS. CAUTION: CONTAINS SMALL PARTS,
KEEP CHILDREN AWAY DURING INSTALLATION. USE TWO OR MORE PEOPLE TO ASSEMBLE
AND MOVE THE UNIT TO AVOID INJURY. Do not use this unit for anything other than the
manufacturer's intended purpose. Use care when working with metal parts, wear gloves for
protection. Periodically inspect the unit to ensure brace/beam rivets are properly seated into
post slots. Keep this manual for future reference.
Do not exceed the maximum weight capacity of 800 lbs (362 kg) for each shelf, not to exceed
4,000 lbs (1,814 kg) for the entire shelving unit. Evenly distribute weight loads across entire
shelf surface. Always store larger, heavier items on the bottom levels and small lighter items
on the upper levels. This product is TSCA Title VI compliant.
Warranty
Edsal Manufacturing Company, LLC products are guaranteed for a period of one (1) year from the date of purchase. The SOLE
AND EXCLUSIVE REMEDY for such defects is the repair or replacement of a defective product or parts thereof by Edsal Manufac-
turing Company, LLC or, at Edsal Manufacturing Company, LLC option, refund of the purchase price upon return of the item to
Edsal Manufacturing Company, LLC. This warranty shall not apply in the event the products are damaged as a result of misuse,
neglect, accident, moisture, improper application, improper assembly, or assembly not in conformity with the instructions of
Edsal Manufacturing Company, LLC, failure to abide by safety precautions prescribed by Edsal Manufacturing Company, LLC or
modification or repair by persons not authorized by Edsal Manufacturing Company, LLC.
Should you have any comments, damage, missing parts, or problems with
Assembly of this unit contact us:
7 a.m. - 5 p.m., CST, Monday-Friday:
Chat: www.edsal.com/chat or www.edsal.com/contact
Email: support@edsal.com
Phone: 1-773-475-3131
To obtain replacement parts please provide: Model Number, Part Number & Description,
Store Location and Date Purc
THANK YOU FOR YOUR PURCHASE

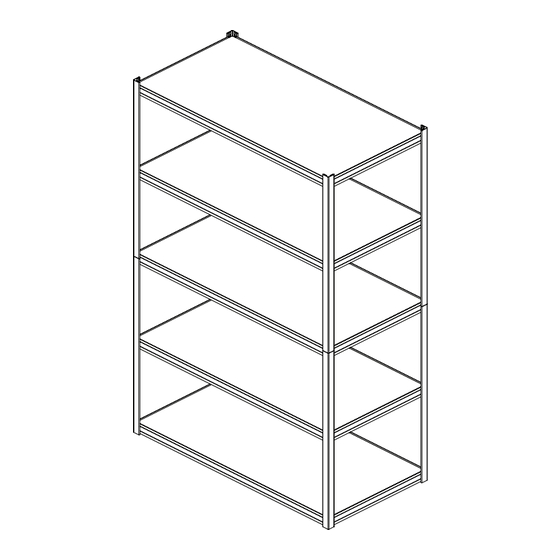

5-SHELF STEEL STORAGE UNIT
hased
48"W x 24"D x 72"H
MODEL: URHP482472PB5-SV
EDSAL MANUFACTURING CO, LLC
1555 W. 44TH STREET
CHICAGO, IL 60609
US Patents & Patents pending
rev: C091222_V1
Advertisement
Table of Contents
Related Manuals for Edsal Muscle Rack URHP482472PB5-SV
Summary of Contents for Edsal Muscle Rack URHP482472PB5-SV
- Page 1 Warranty Edsal Manufacturing Company, LLC products are guaranteed for a period of one (1) year from the date of purchase. The SOLE AND EXCLUSIVE REMEDY for such defects is the repair or replacement of a defective product or parts thereof by Edsal Manufac- turing Company, LLC or, at Edsal Manufacturing Company, LLC option, refund of the purchase price upon return of the item to Edsal Manufacturing Company, LLC.
- Page 2 Parts List PARTS LIST Description Part# A. Post URHP36-SV B. Brace ZRBM24-SV C. Beam ZRBM48-SV D. Particleboard Deck RPB32448-V2 E. Inside Post Connector CPHP-SV F. Post Cap RL-PC-B1 Preparation Assembly of this unit is done by fitting the two rivets of the braces (B) and beams (C) into the keyhole slots of the post (A). The narrow end of the keyhole slots from the post must face down (see FIG.1).
- Page 3 Assembly Assemble A (x4) & F (x4) STEP 1-A STEP 1-A STEP 1-A ✓ Assemble B (x2) ✓ → → Assemble C (x2) ✓ → → Assemble D (x1) Assemble next shelf level using B (x2), C (x2) and D (x1) by repeating same steps as 2, 3 and 4 at the desired location ✓...
- Page 4 Assembly Assemble E (x4) to the assembled four posts Note: A rubber mallet may be used to help ✓ secure the post connectors halfway onto the post by lightly tapping down on the post connectors once it is attached to the posts.
