Edsal 3006KA Manual

(A) Back
(E) Bottom
Safety Instructions
Safety Instructions Safety Instructions
Use Caution when handling and assembling metal parts. The metal may have sharp edges or corners.
The use of protective gloves is recommended. Do not use this unit for anything that is outside the de-
signed function of storage. Do not store loose or heavy items on the top shelves or on the top of the
unit, for they create a falling hazard that can injure yourself or others. Always remember to use proper
lifting techniques when moving either the boxed or assembled unit.
General instructions General instructions
General instructions
It is recommended that the cabinets are assembled by more than one person. Use of a raised flat
surface during assembly is highly recommended. During shipping and handling, some of the pan-
els that are used for assembly may have become bent. Use your hand to pry up or push the parts
back to their original form. To assure that the unit is square. Make sure that the unit is placed on a
level surface, as this may effect the performance of the unit.

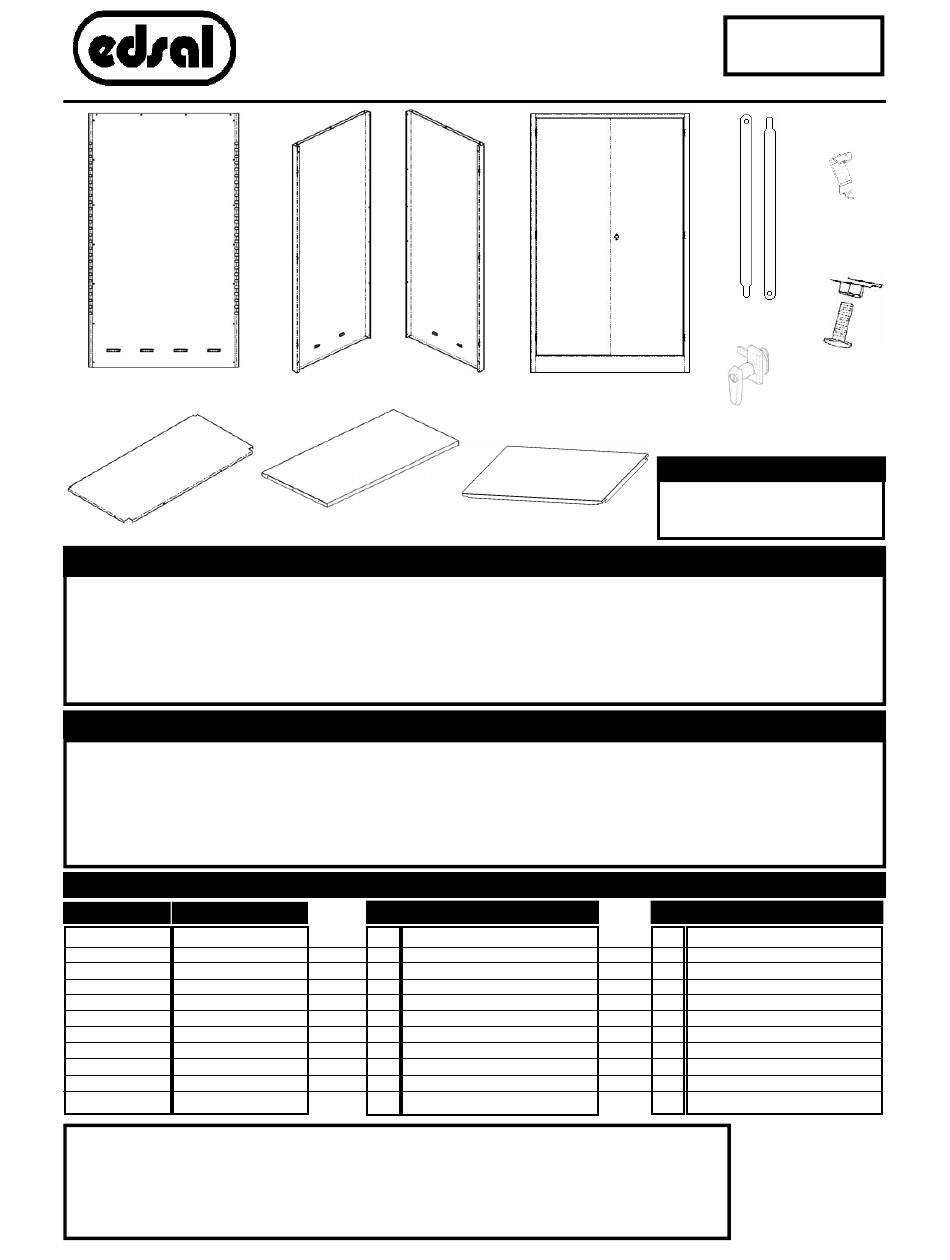

Part List & Product Specification : Edsal 3006KA & QA3007KA Series Storage Cabinets Part List & Product Specification : Edsal 3006KA & QA3007KA Series Storage Cabinets
Part List & Product Specification : Edsal 3006KA & QA3007KA Series Storage Cabinets
Reference Reference Description Description
Reference Description
A Back
B Right Hand Side
C Left Hand Side
D Top
E Bottom
F Shelves
G Shelf Clips
H Door Frame
I Door rods
J Locking Handle
K Leg Leveler & Nut
Should you have any comments, damage, missing parts, or problems with assembly of this unit please feel free to contact
our Edsal manufacturing facility at, (773) 475-3000 and request customer service. We can also be reached on the internet
at the following email address : customerservice@edsal.com.
To obtain replacement parts, please provide the following information :
- Model #
Congratulations ! On the purchase of your Edsal
Quick Assemble Storage Cabinet.
(B) Right Hand Side (C) Left Hand Side
(D) Top
3006 3006 3006 — — — 2 Shelf 2 Shelf 2 Shelf
1
1
1
1
1
2
4
1
2
1
2
- Part # & Description - Location Purchased
(some assembly required)
(H) Door Frame
(F) Shelves
– – – 42"h x 18"d x 36"w 42"h x 18"d x 36"w 42"h x 18"d x 36"w
CUBK4237 KA
CUSD4220R KA
CUSD4220L KA
CUTO3820 KA
CUBO3617-1 KA
CUSH3718-1 KA
7000CLP
3006FRAME
CUDR1800 KA
201L
Leveler 100
- Date Purchased
MODEL NUMBER (s)
3006KA - 3007KA
(G) Shelf Clips
(I) Door Rods
(K) Leg Leveler &
Cage Nut
(J) Locking Handle
Required Tools
Required Tools Required Tools
•
Small Screwdriver
•
Rubber Mallet
(patent pending) (patent pending)
(patent pending)
3007— 3007 — 2 Shelf 2 Shelf – – 42"h x 24"d x 36"w 42"h x 24"d x 36"w
3007 — 2 Shelf – 42"h x 24"d x 36"w
1 CUBK4237 KA
1 CUSD4226R KA
1 CUSD4226L KA
1 CUTO3826 KA
1 CUBO3623-1 KA
2 CUSH3724-1 KA
4 7000CLP
1 3007FRAME
2 CUDR1800 KA
1 201L
2 Leveler 100
Consumer Products Division
Edsal Manufacturing Company
4400 South Packers Avenue
Chicago, IL 60609
www.edsal.com
Made In China
Page 1
