XVME-240 Manual
October, 1984
Characteristic
Temperature
Operating
Non-Operating
Humidity 5 to 95% RH non-condensing
(Note, extreme low humidity conditions may require special protection
against static
discharge.)
Altitude
Operating
Non-Operating
Vibration
Operating
0.015 inches peak-to-peak displacement
2.5 g peak (max) acceleration
Non-Operating
.030
5.0 g peak (max) acceleration
Shock
Operating
11 msec duration
Non-Operating
11 msec duration
VMEbus Compliance

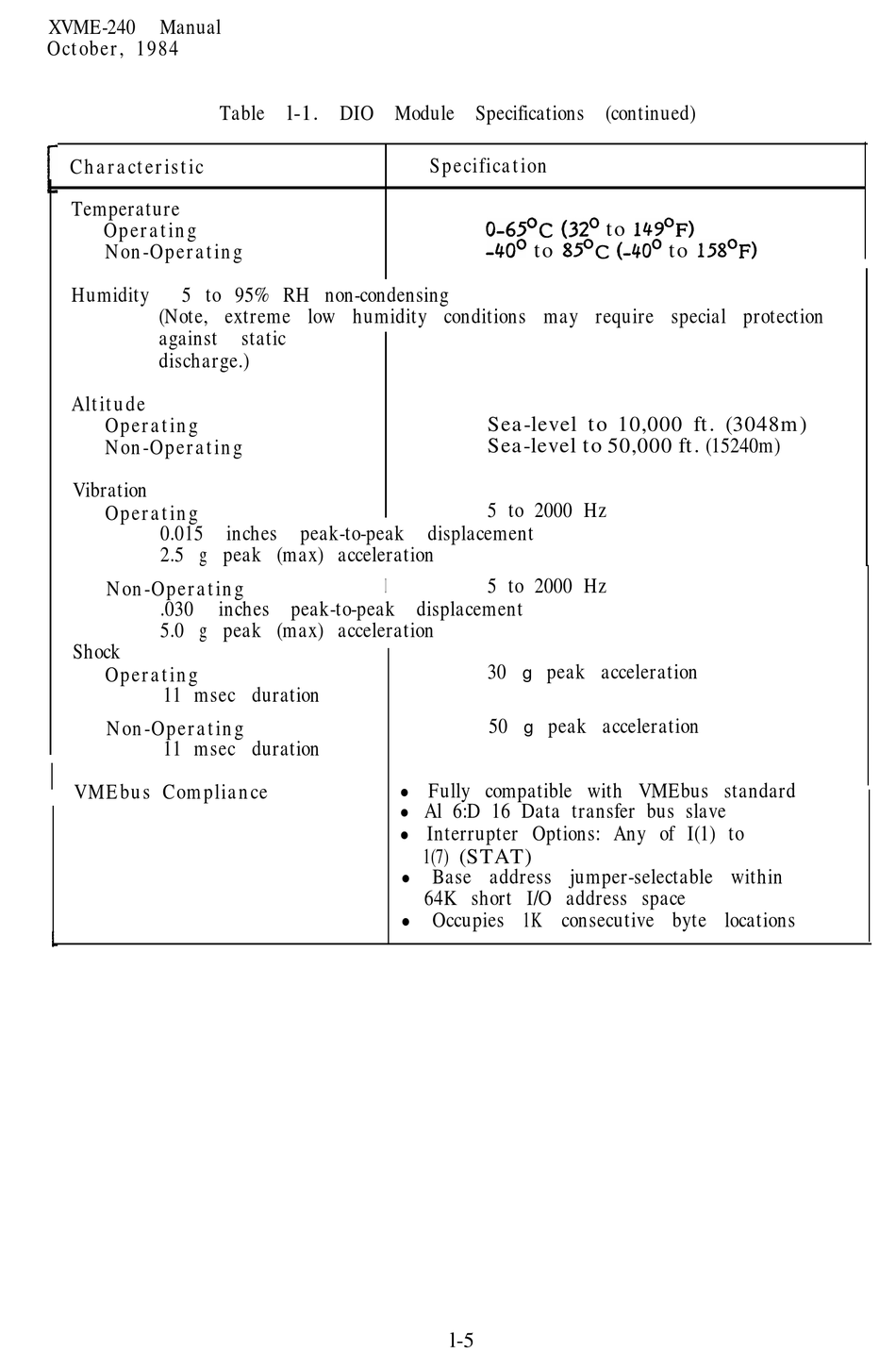

Table l-1. DIO Module Specifications (continued)
I
inches peak-to-peak displacement
Specification
Sea-level to 10,000 ft. (3048m)
Sea-level to 50,000 ft. (15240m)
5 to 2000 Hz
5 to 2000 Hz
30 peak acceleration
g
50 peak acceleration
g
Fully compatible with VMEbus standard
l
Al 6:D 16 Data transfer bus slave
l
Interrupter Options: Any of I(1) to
l
1(7) (STAT)
Base address jumper-selectable within
l
64K short I/O address space
Occupies 1K consecutive byte locations
l
l-5
